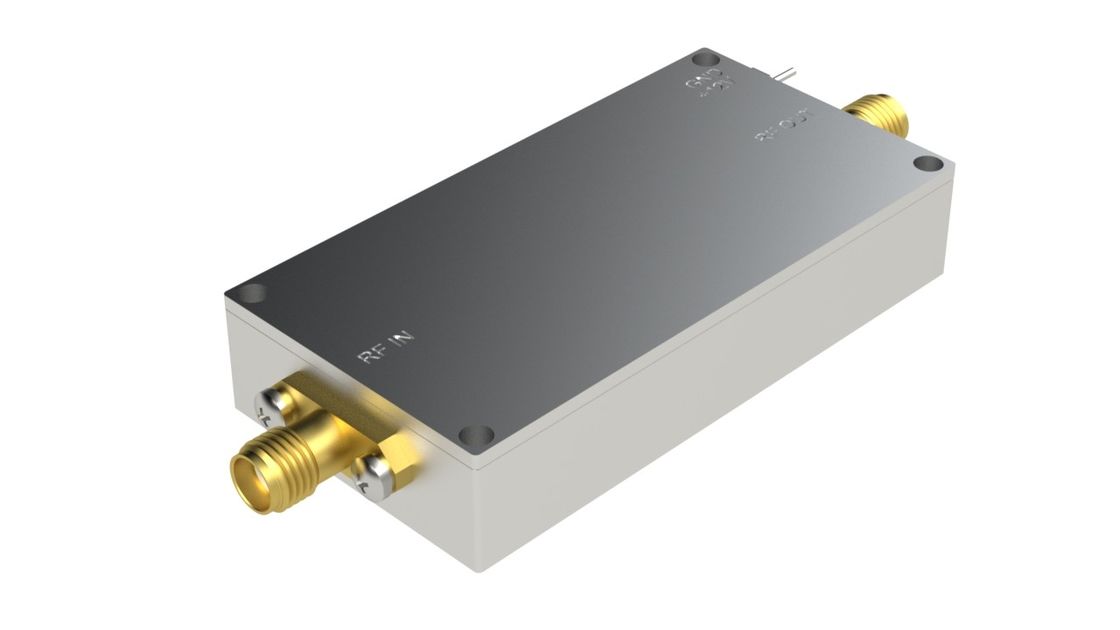

1-20 GHz P1dB 13dBm Wide Band Low Noise Amplifier for satellite communication, measurement applications
  • 1-20 GHz P1dB 13dBm Wide Band Low Noise Amplifier for satellite communication, measurement applications
  • 1-20 GHz P1dB 13dBm Wide Band Low Noise Amplifier for satellite communication, measurement applications
1-20 GHz P1dB 13dBm Wide Band Low Noise Amplifier for satellite communication, measurement applications

1-20 GHz P1dB 13dBm Wide Band Low Noise Amplifier for satellite communication, measurement applications

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-100020000-40C
Product Details
Frequency Range:
1-20 GHz
DC Power Supply:
12 V
Output Power 1dBcompression:
13 DBm
Gain:
40 DB
VSWR Input:
2:1 Ratio
Small Signal Gain Flatness:
±2dB
Noise Figure:
4dB
VSWR Input/output:
2：1Ratio
Operating Temperature:
-40~85℃
Applications:
Communication, Radar, Satellite Communication, And Measurement Applications.
Packing:
Standard Packing

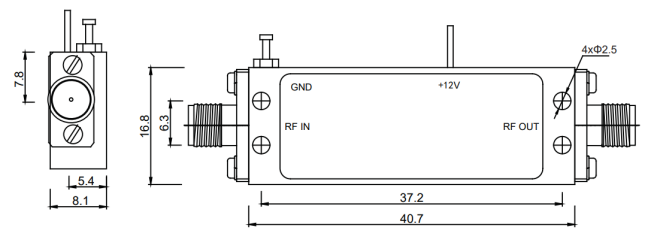

Dimensions:
40.7*16.8*8.1 Mm
Weight:
50 G
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month

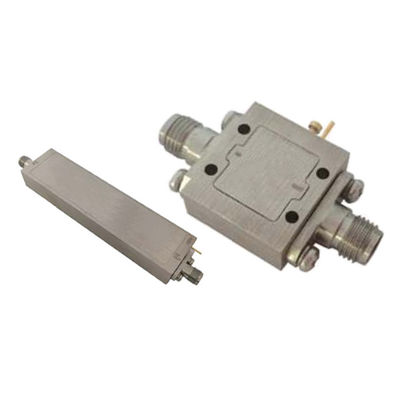

Product Description

1-20 GHz P1dB 13dBm Wide Band Low Noise Amplifier for satellite communication, measurement applications



Description

The specific introduction of the 1-20 GHz Wide Band Low Noise Amplifier (LNA) is as follows:

  1. Frequency Range: This amplifier covers a wide frequency range from 1 GHz to 20 GHz, making it versatile for various communication, radar, satellite communication, and measurement applications.

  2. Low Noise: The amplifier is designed with a low noise figure, ensuring that the amplified signal maintains a high signal-to-noise ratio (SNR) critical for maintaining signal integrity and sensitivity in receiving weak signals.

  3. Wide Bandwidth: Its wide bandwidth design allows for efficient amplification across a broad range of frequencies, making it suitable for applications requiring coverage across multiple frequency bands without significant loss or distortion.

  4. Gain and Linearity: The amplifier provides appropriate gain levels while maintaining linearity, ensuring accurate and reliable signal amplification without introducing nonlinear distortions.

  5. Applications: This type of amplifier is commonly used in RF front-end circuits, receivers, transmitters, microwave links, and instrumentation systems where low noise and wideband amplification are essential.

  6. Performance: It offers stable and reliable performance, with features such as high isolation, good return loss, and excellent noise figure, making it suitable for demanding RF applications.

In summary, the 1-20 GHz Wide Band Low Noise Amplifier is a high-performance amplifier designed to provide low noise, wideband amplification across a broad frequency range, making it valuable for a wide range of RF and microwave applications.



Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
ELECTRICAL SPECIFICATIONS@25℃
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 1   20 GHz
Small Signal Gain 40     dB
Small Signal Gain Flatness   ±2   dB
Noise Figure     4 dB
Output Power 1dBcompression 13     dBm
IP3       dBm
VSWR Input/output   2:1   Ratio
DC Power Supply   12   Volt
Current   300   mA



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +20 dBm
Operating Temperature -40   +85 ℃
Non-operating Temperature -55   +125 ℃
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone



MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 40.7*16.8*8.1 Max Millimeter
Weight 50 Max gram
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50   Ohms
