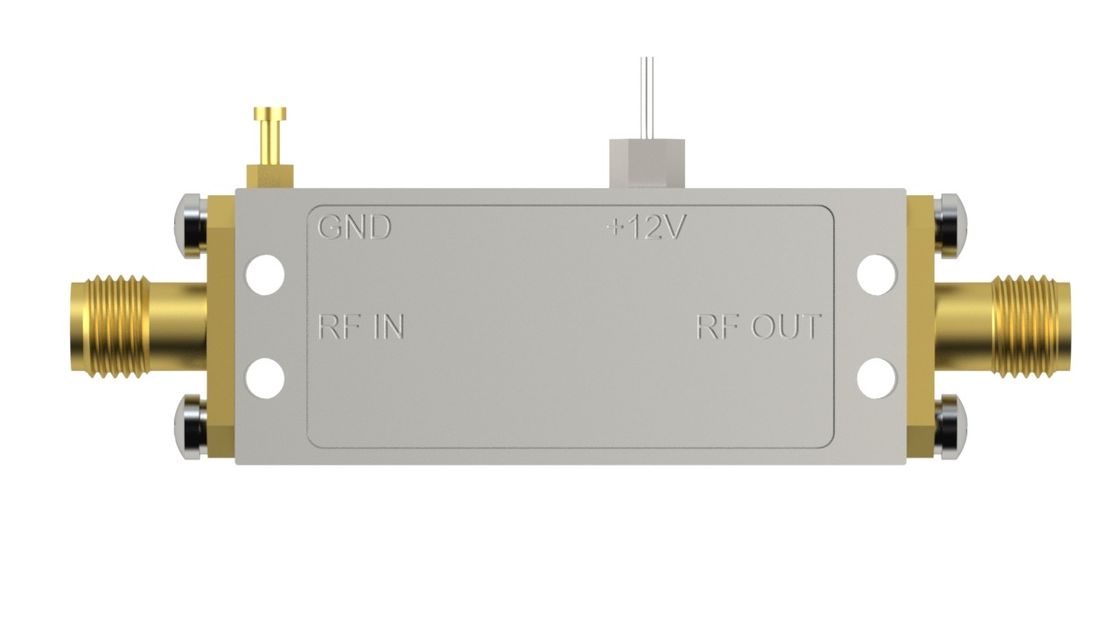

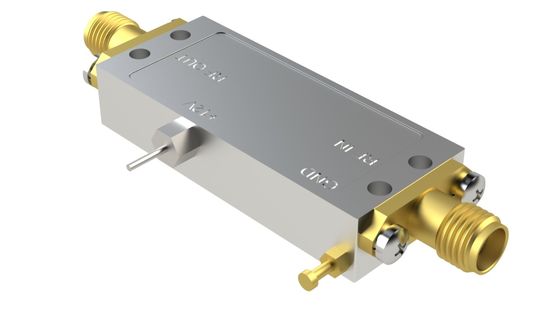

1-19GHz P1dB 10dBm Wide Band Low Noise Amplifier for radar systems, telecommunications
  • 1-19GHz P1dB 10dBm Wide Band Low Noise Amplifier for radar systems, telecommunications
  • 1-19GHz P1dB 10dBm Wide Band Low Noise Amplifier for radar systems, telecommunications

1-19GHz P1dB 10dBm Wide Band Low Noise Amplifier for radar systems, telecommunications

Place of Origin China
Brand Name SWT
Model Number SW-PA-100019000-20C
Product Details
Frequency Range:
1-19 GHz
Output Power 1dBcompression:
10 DBm
Gain:
20 DB
DC Power Supply:
15 V
Packing:
Standard Packing
VSWR Input:
2.2:1 Ratio
Dimensions:
34.4*16.8*8.1 Mm
Weight:
50 G
Application:
Radar Systems, Telecommunications, Satellite Communications, Electronic Warfare, Test And Measurement Equipment
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

1-19GHz P1dB 10dBm Wide Band Low Noise Amplifier for radar systems, telecommunications



Description

The 1-19 GHz P1dB 10 dBm Wide Band Low Noise Amplifier (LNA) is a high-performance RF amplifier module designed for broad frequency applications. This amplifier is suitable for scenarios where low noise and stable gain are essential across a wide frequency range from 1 GHz to 19 GHz. Here are the primary specifications and features:

  • Frequency Range: 1 GHz to 19 GHz, covering a wide band for versatile use across multiple RF applications.
  • P1dB Output Power: 10 dBm, providing moderate output power before reaching the compression point, ensuring linear amplification of input signals.
  • Wideband Operation: Delivers consistent performance across a broad frequency range, making it flexible for various RF and microwave systems.
  • Low Noise Figure: Optimized to introduce minimal noise to the signal, enhancing the overall signal-to-noise ratio (SNR) and enabling clear amplification of weak signals.
  • High Gain: Provides sufficient gain across the 1-19 GHz range, enabling effective amplification without sacrificing signal quality.
  • Applications: Ideal for radar systems, telecommunications, satellite communications, electronic warfare, test and measurement equipment, and other RF applications that require wideband, low-noise amplification.

This LNA module is well-suited for systems that operate over multiple frequency bands and require low-noise amplification with stable performance. Its wide frequency range and moderate output power make it a versatile and reliable choice for high-frequency applications.



Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 1   19 GHz
Small Signal Gain 20   27 dB
Small Signal Gain Flatness     ±2 dB
Noise Figure     5 dB
Output Power 1dBcompression 10     dBm
IP3       dBm
VSWR Input/output     2.2:1 Ratio
DC Power Supply   15   Volt
Current   120   mA
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +20 dBm
Operating Temperature -40   +85
Non-operating Temperature -55   +125
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone
MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 34.4*16.8*8.1 Max Millimeter
Weight 50 Max gram
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50   Ohms
