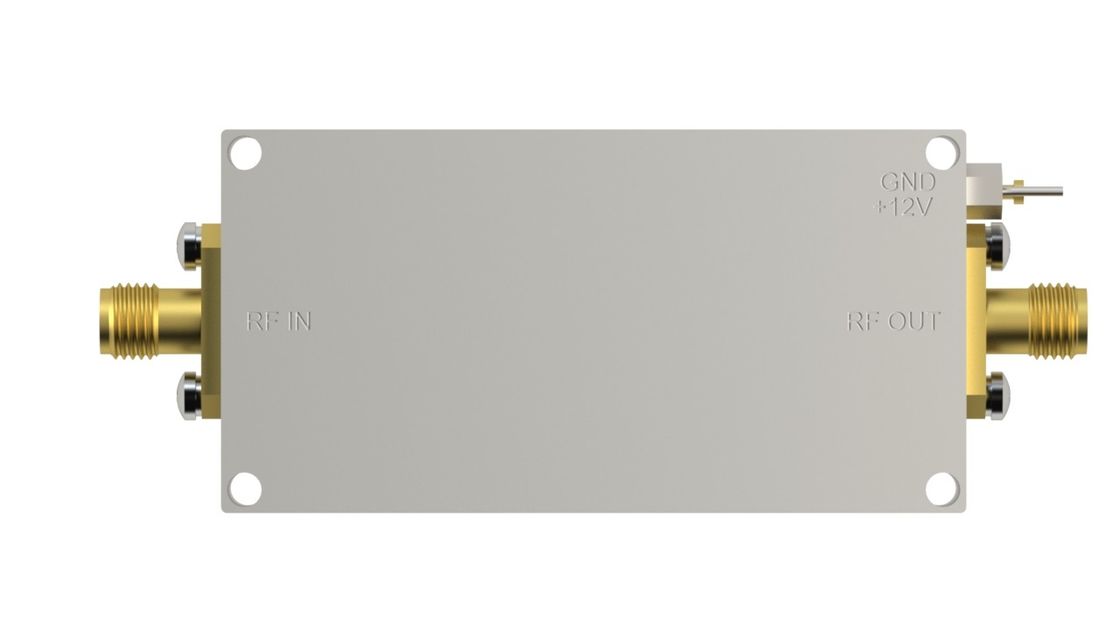

2-3 GHz P1dB 12dBm Wide Band Low Noise Amplifier for amplifying signals in various communication
Description
The specific introduction of the 2-3 GHz Wide Band Low Noise Amplifier is as follows:
-
Frequency Range: This amplifier is designed to operate within the frequency range of 2 GHz to 3 GHz, which is commonly used in various communication, radar, and wireless systems.
-
Low Noise : The amplifier features a low noise figure ensuring minimal noise is added to the amplified signal. This is crucial for maintaining signal clarity and integrity, especially in applications where weak signals need to be amplified without introducing noise.
-
Wide Bandwidth Design: It is designed with a wide bandwidth, allowing it to provide stable and efficient amplification across the entire frequency range of 2-3 GHz. This makes it suitable for applications requiring coverage over a broad frequency spectrum.
-
Gain : The amplifier provides a suitable gain level for amplifying signals, ensuring that the amplified signal maintains its strength and quality throughout the frequency range.
-
Applications : This type of amplifier is commonly used in RF front-end circuits, receivers, transmitters, and other systems where low noise and wideband amplification are essential.
Overall, the 2-3 GHz Wide Band Low Noise Amplifier is designed to offer efficient and low-noise amplification across a wide frequency range, making it a valuable component in various RF systems.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Frequency Range |
2 |
|
3 |
GHz |
| Small Signal Gain |
35 |
|
37 |
dB |
| Small Signal Gain Flatness |
|
|
±0.75 |
dB |
| Noise Figure |
|
|
2.0 |
dB |
| Output Power 1dBcompression |
12 |
|
|
dBm |
| IP3 |
|
|
|
dBm |
| VSWR Input/output |
|
|
2:1 |
Ratio |
| DC Power Supply |
|
12 |
|
Volt |
| Current |
|
120 |
|
mA |
| ENVIRONMENTAL RATINGS |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Max Input power |
|
|
+20 |
dBm |
| Operating Temperature |
-40 |
|
+85 |
℃ |
| Non-operating Temperature |
-55 |
|
+125 |
℃ |
| Relative humidity (non-condensing) |
|
95 |
|
% |
| Altitude (MIL-STD-810F) |
10000 |
|
30000 |
feet |
| Shock / Vibration (MIL-STD-810F) |
|
Airbone |
|
|
| MECHANICAL SPECIFICATIONS |
| PARAMETER |
VALUE |
LIMITS |
UNIT |

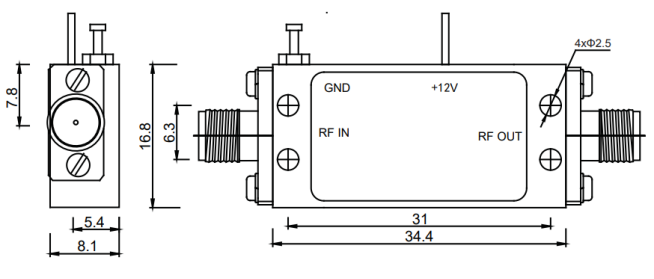

| Dimensions |
34.4*16.8*8.1 |
Max |
Millimeter |
| Weight |
50 |
Max |
gram |
| RF Connectors Input |
SMA-F |
|
|
| RF Connectors output |
SMA-F |
|
|
| Impedance |
50 |
|
Ohms
|
