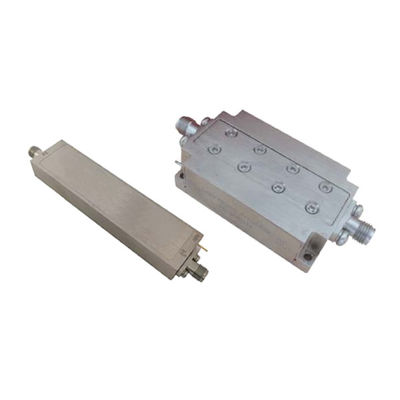

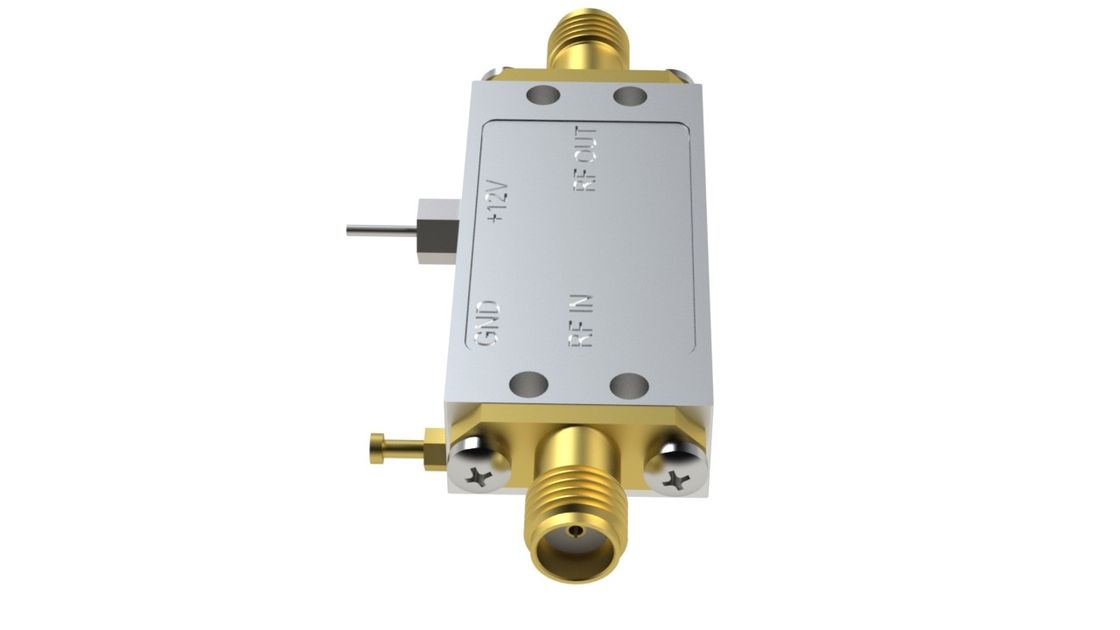

2-4 GHz 12dBm Wide Band Low Noise Amplifier in test equipment for signal amplification and noise testing

The 2-4 GHz 12dBm Wide Band Low Noise Amplifier is a high-performance amplifier designed for applications requiring low noise, high gain, and wide bandwidth operation, covering the frequency range of 2 to 4 GHz. This amplifier is widely used in wireless communications, radar systems, and test and measurement fields. Below is a detailed introduction to its features, specifications, and applications:

Key Features:

1. Wide Frequency Range: Operates over a frequency range of 2 to 4 GHz, suitable for various RF applications.
2. Low Noise Figure: Optimized design to provide an extremely low noise figure, ensuring high-quality signal amplification.
3. High Gain: Offers high gain, typically above 20 dB, effectively amplifying input signals.
4. Output Power: P1dB (1 dB compression point) of 12 dBm, providing sufficient linear output power.
5. High Efficiency: Designed for high efficiency, reducing power consumption and heat generation.
6. Impedance Matching: Standard 50-ohm input and output impedance, compatible with most RF systems.
7. Compact Design: Small form factor for easy integration into various systems.
8. Rugged and Reliable: Durable design suitable for long-term stable operation in harsh environments.

Applications:

1. Wireless Communications: Used in base stations and terminal devices for signal amplification, ensuring high-quality communication.
2. Radar Systems: Amplifies echo signals in radar receivers, improving signal detection sensitivity.
3. Test and Measurement: Used in test equipment for signal amplification and noise testing, ensuring measurement accuracy.
4. Satellite Communications: Amplifies signals in satellite ground stations and other satellite communication equipment.
5. Laboratory Research: Supports various scientific experiments and research activities requiring precise and low-noise signal amplification.

Benefits:

• High Signal-to-Noise Ratio: Low noise figure ensures a high signal-to-noise ratio, suitable for sensitive receiver applications.
• Wideband Operation: Covers a wide frequency range, meeting diverse application needs.
• Compact Design: Small form factor facilitates system integration and use.
• High Reliability: Suitable for long-term continuous operation, providing stable performance.

The 2-4 GHz 12dBm Wide Band Low Noise Amplifier is a crucial component in modern RF systems, offering excellent performance and versatility. Its high gain, low noise, and wide bandwidth make it an indispensable tool in wireless communications, radar, and test and measurement fields.
