2-4 GHz P1dB 10dBm Wide Band Low Noise Amplifier for Wireless Communication with Low Noise Figure
  • 2-4 GHz P1dB 10dBm Wide Band Low Noise Amplifier for Wireless Communication with Low Noise Figure
  • 2-4 GHz P1dB 10dBm Wide Band Low Noise Amplifier for Wireless Communication with Low Noise Figure
  • 2-4 GHz P1dB 10dBm Wide Band Low Noise Amplifier for Wireless Communication with Low Noise Figure
  • 2-4 GHz P1dB 10dBm Wide Band Low Noise Amplifier for Wireless Communication with Low Noise Figure
2-4 GHz P1dB 10dBm Wide Band Low Noise Amplifier for Wireless Communication with Low Noise Figure

2-4 GHz P1dB 10dBm Wide Band Low Noise Amplifier for Wireless Communication with Low Noise Figure

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-20004000-26C
Product Details
Packing:
Standard Packing
Dimensions:
34.4*16.8*8.1 Mm
Weight:
50 G
DC Power Supply:
12 V
Frequency Range:
2-4 GHz
Output Power 1dBcompression:
10dBm
Gain:
26 DB
VSWR Input:
2:1 Ratio
Noise Figure:
1.8dB
Current:
120mA
Operating Temperature:
-40~85℃
Applications:
Wireless Communications, Radar Systems, Satellite Communications, Broadcasting, Medical Equipment
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

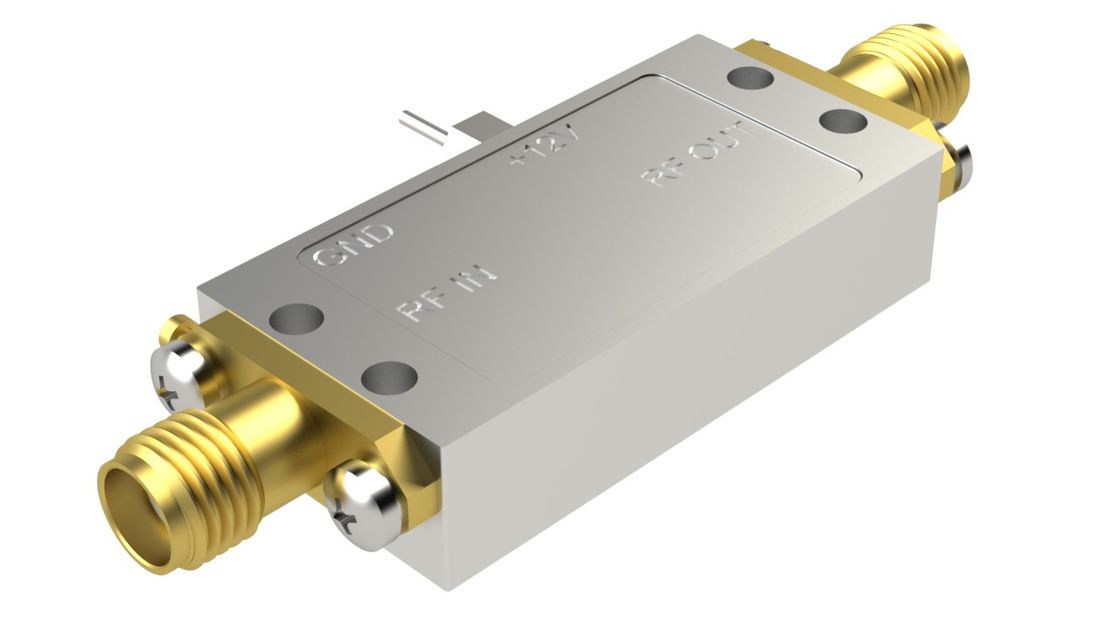

2-4 GHz P1dB 10dBm Wide Band Low Noise Amplifier for Wireless Communication with Low Noise Figure



Description

Product Features:

  1. Wide Frequency Coverage: Covers a frequency range of 2 GHz to 4 GHz, meeting diverse application needs.
  2. Low Noise Figure: Exhibits an extremely low noise figure, providing a high signal-to-noise ratio under weak signal conditions and enhancing system sensitivity.
  3. High Linearity: Achieves a P1dB output power of 10dBm, ensuring excellent linearity for applications requiring high linearity.
  4. Gain Flatness: Maintains superior gain flatness across the entire operating frequency range, ensuring signal consistency and stability.
  5. High Reliability: Manufactured with high-quality materials and processes, offering excellent thermal stability and long-term reliability.

Applications:

  1. Wireless Communication: Used in mobile communication base stations, cell coverage enhancers, and wireless access points to improve signal quality and coverage.
  2. Radar Systems: Applied in various radar systems to enhance target detection capability and range.
  3. Test and Measurement Equipment: Utilized in high-frequency testing instruments and signal processing equipment to ensure measurement accuracy and reliability.
  4. Satellite Communication: Employed in satellite ground stations and satellite communication systems to provide high-quality signal amplification, enhancing communication link performance.

This 2-4 GHz wideband low noise amplifier, with its excellent performance and reliability, is an ideal choice for a wide range of RF and microwave applications.



Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
ELECTRICAL SPECIFICATIONS@25℃
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 2   4 GHz
Small Signal Gain 26     dB
Small Signal Gain Flatness     ±1 dB
Noise Figure     1.8 dB
Output Power 1dBcompression 10     dBm
IP3       dBm
VSWR Input/output     2:1 Ratio
DC Power Supply   12   Volt
Current   120   mA



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +20 dBm
Operating Temperature -40   +85 ℃
Non-operating Temperature -55   +125 ℃
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone



MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 34.4*16.8*8.1 Max Millimeter
Weight 50 Max gram
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50   Ohms
