RF Microwave 8-23 GHz Horizontal and Vertical Dual Linear Polarization Antenna
  • RF Microwave 8-23 GHz Horizontal and Vertical Dual Linear Polarization Antenna
  • RF Microwave 8-23 GHz Horizontal and Vertical Dual Linear Polarization Antenna

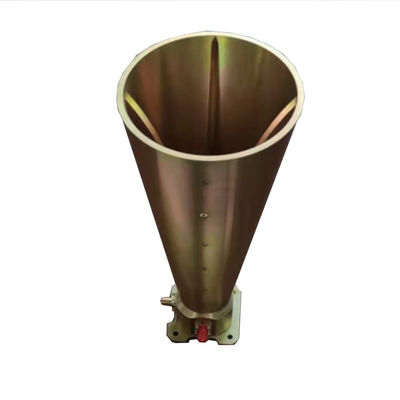

RF Microwave 8-23 GHz Horizontal and Vertical Dual Linear Polarization Antenna

Place of Origin China
Brand Name SWT
Certification CE
Model Number SH-AnT-0823
Product Details
Packing:
Standard Packing
Antenna Form:
Horizontal And Vertical Dual Linear Polarization
Frequency Range:
8GHz-23GHz
Gain:
More Than 20 DB
Interface Form:
SMA-50K
Operating Temperature:
-40 To 70 Centigrade
Storage Temperature:
-55 To 80 Centigrade
Oral Size:
77 Mm
Application:
Military Communications, Satellite Communications, Radar Systems, Radio Links, And Mobile Communications
High Light:

Standard Gain Horn Antennas

,

Standard Gain Horn Antennas

,

dual linear polarization antenna

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

RF Microwave 8-23 GHz Horizontal and Vertical Dual Linear Polarization Antenna



Product Description



The 8-23 GHz dual linear polarization antenna is a type of antenna designed to operate within the frequency range of 8 GHz to 23 GHz. It features dual linear polarization, allowing it to simultaneously transmit and receive electromagnetic waves in two orthogonal directions. This antenna is commonly used in high-frequency communication systems such as radar, satellite communications, radio links, and communication networks.



Frequency Range: Operates within the range of 8 GHz to 23 GHz, covering various communication and radar application bands.
Dual Linear Polarization: Capable of independent polarization in vertical and horizontal directions, providing flexibility in signal transmission and reception.
Radiation Characteristics: Exhibits good radiation characteristics such as radiation power, radiation pattern, beamwidth, etc., which can be designed and optimized based on specific requirements.
Antenna Gain: Typically offers high antenna gain, enhancing signal transmission distance and coverage.
Interference Resistance: Dual linear polarization design improves the antenna's resistance to environmental and channel interference, enhancing the reliability and stability of communication systems.
Antenna Structure: May employ complex antenna structures such as dipole antennas, waveguide antennas, or compensating antennas to achieve desired performance metrics and operational requirements.
Application Areas: Widely used in military communications, satellite communications, radar systems, radio links, and mobile communications, playing a crucial role in the transmission and reception of high-frequency signals.
Performance Optimization: Design and optimization processes may consider parameters such as bandwidth, resonance frequency, impedance matching, beamwidth, cross-polarization, etc., to achieve optimal performance and efficiency.
Understanding these aspects provides insight into the role and advantages of the 8-23 GHz dual linear polarization antenna in communication systems, as well as its specific application methods and performance requirements in different scenarios.

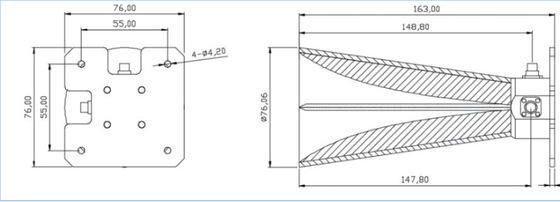

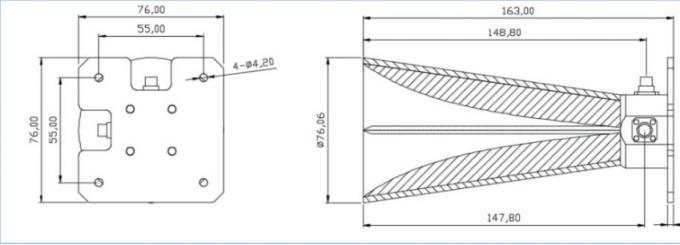

Specification
Model SH-AnT-0823   Interface form SMA-50K
Antenna form Cone horn   Oral size 77mm
Frequency Range 8GHz-23GHz   Weight ≤0.5kg
Standing wave no more than 2   Surface treatment Conductive oxida
Polarization Horizontal and vertical dual linear
polarization 10-40°
  Operating temperature -40°C~70°C
Gain >20dB   Storage temperature -55°C~80°C
