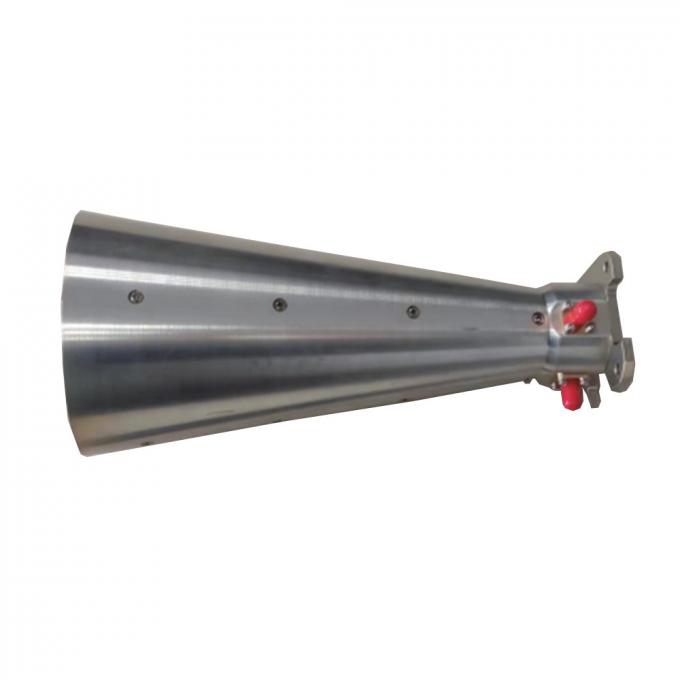

1~18 GHz 800 W digital satellite TV RF module satellite receiver conical horn antenna
  • 1~18 GHz 800 W digital satellite TV RF module satellite receiver conical horn antenna
  • 1~18 GHz 800 W digital satellite TV RF module satellite receiver conical horn antenna

1~18 GHz 800 W digital satellite TV RF module satellite receiver conical horn antenna

Place of Origin China
Brand Name SWT
Certification CE
Model Number SH-AnT-0118
Product Details
Antenna Form:
Cone Horn
Frequency Range:
1 GHz-18 GHz
Gain:
2~21 DB(Need To Test 1-2GHz1-2GHz)
Interface Form:
SMA-50K
Two-port Isolation:
≥25 DB
Weight:
≤2.4 Kg
Oral Size:
≤193 Mm
Packing:
Standard Packing
Applications:
Communication Systems,Test And Measurement,radar Systems, Wireless Networks
High Light:

Standard Gain Horn Antennas

,

Standard Gain Horn Antennas

,

tv RF module

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

1~18 GHz 800 W digital satellite TV RF module satellite receiver conical horn antenna



A conical horn antenna is a type of antenna commonly used in microwave and radio frequency (RF) applications. Here's an overview:

1.Structure: It consists of a flared, conical-shaped horn that gradually expands from a narrow opening to a wider aperture. The horn may have a smooth or corrugated inner surface, depending on design requirements.
2.Functionality:
Radiation Pattern: The conical horn antenna is known for its directional radiation pattern, with a well-defined beamwidth and gain.
Frequency Range: It can operate over a wide frequency range, typically in the microwave or RF spectrum.
Impedance Matching: Properly designed horns offer good impedance matching to the transmission line or feed system, minimizing signal reflections.
Polarization: Depending on the design, conical horn antennas can support linear or circular polarization.
3.Applications:
Communication Systems: Used in satellite communication, radar systems, wireless networks, and point-to-point communication links.
Test and Measurement: Employed in antenna testing, EMC testing, and RF measurements.
Remote Sensing: Utilized in remote sensing applications for data collection and analysis.
4.Advantages:
High Gain: Offers high gain, making it suitable for long-distance communication.
Low Sidelobes: Typically exhibits low sidelobes, enhancing its ability to focus energy in the desired direction.
Durable Construction: Can be constructed from materials suitable for outdoor and harsh environments.
5.Variants:
Pyramidal Horn: A variation with a square or rectangular aperture instead of a conical shape.
Exponential Horn: Features a continuously flaring profile, offering broadband performance.
Overall, conical horn antennas are valued for their directional properties, frequency versatility, and suitability for various communication and sensing applications.
Specification

Model SH-AnT-0118
Antenna form Cone horn
Frequency Range 1GHz~18GHz
Standing wave ≤3
Polarization Horizontal and vertical dual linear polarization
Sidelobe suppression 10~70 °
Sidelobe suppression E-side 8 dB; H-side 13 dB
Gain 2~21dB(Need to test 1-2GHz1-2GHz)
Two-port isolation ≥25dB
Interface form SMA-50K
Oral size ≤193mm
Weight ≤2.4kg
Surface treatment Conductive oxidation
Operating temperature -40~70℃
Storage temperature -55~80℃
Withstand power 800W
