Full Range Wr3~Wr42 18-325 GHz Wideband Wireless Antennas Waveguide Horn Antenna For wireless networks
  • Full Range Wr3~Wr42 18-325 GHz Wideband Wireless Antennas Waveguide Horn Antenna For wireless networks
  • Full Range Wr3~Wr42 18-325 GHz Wideband Wireless Antennas Waveguide Horn Antenna For wireless networks
  • Full Range Wr3~Wr42 18-325 GHz Wideband Wireless Antennas Waveguide Horn Antenna For wireless networks
  • Full Range Wr3~Wr42 18-325 GHz Wideband Wireless Antennas Waveguide Horn Antenna For wireless networks
  • Full Range Wr3~Wr42 18-325 GHz Wideband Wireless Antennas Waveguide Horn Antenna For wireless networks

Full Range Wr3~Wr42 18-325 GHz Wideband Wireless Antennas Waveguide Horn Antenna For wireless networks

Place of Origin China
Brand Name SWT
Certification CE
Model Number SWTAT-2023
Product Details
Packing:
Standard Packing
Type:
Horn Antenna
Frequency Range:
18 GHz~325 GHz
Gain:
20 DB~23 DB
Dimensions:
0.039 Inch~0.455 Inch
Application:
Communication Systems&GSM Network
High Light:

Wideband Horn Antennas 20dB

,

Wideband Horn Antennas 23dB

,

Circular Horn Antenna For EMC Test

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

Full Range Wr3~Wr42 18-325 GHz Wideband Wireless Antennas Waveguide Horn Antenna For wireless networks



Description

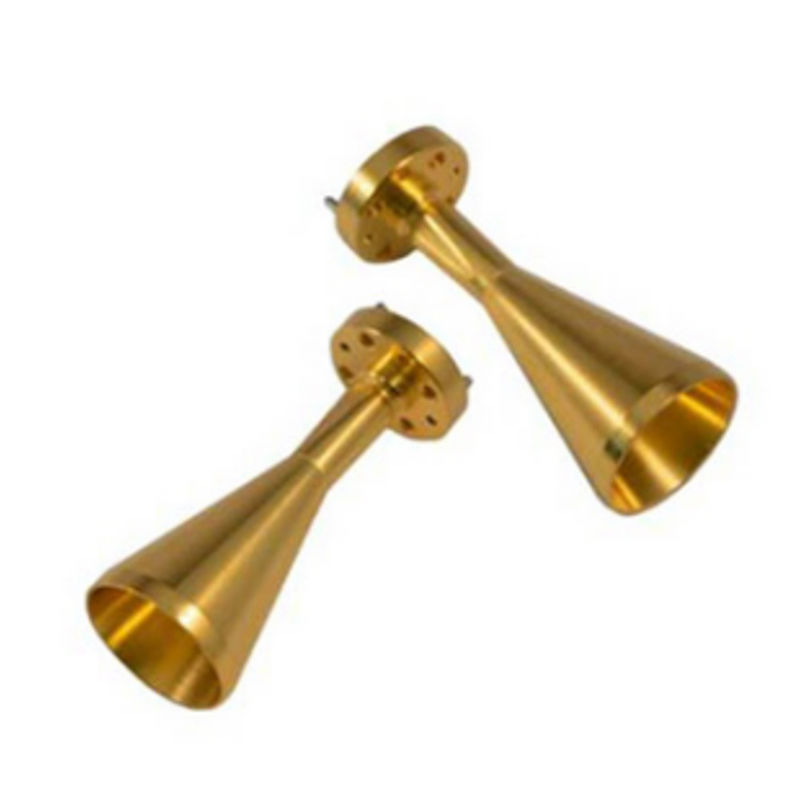

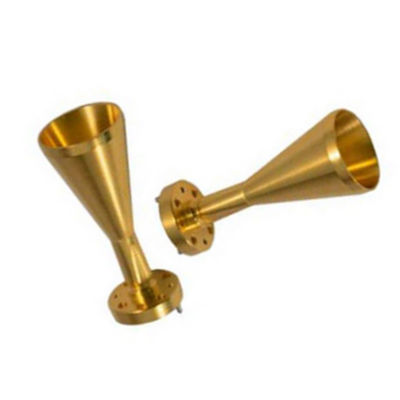

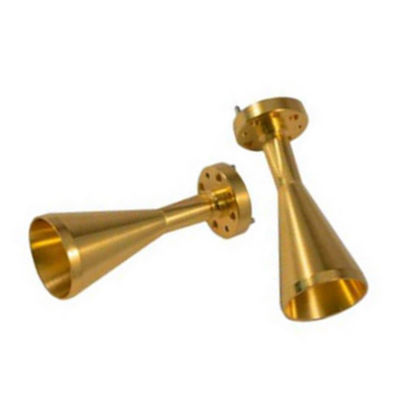

Rectangular horns are one of our most popular antennas. Each horn is precisely electrocast and gold-plated on the mandrel. These horns have maximum return loss and the gain from 22 to 24dB. Special orders can be made for horns with different gains, Dimension of this antenna is from WR3 to WR42.

The rectangular waveguide horn antenna with a gain ranging from 22 dB to 24 dB, operating in the frequency range of 18 GHz to 325 GHz, is a type of antenna designed for microwave and millimeter-wave applications. This antenna is commonly used in radar systems, communication systems, wireless networks, as well as in astronomy and remote sensing applications.

Here is a specific introduction to this antenna:

  1. Frequency Range: Suitable for microwave and millimeter-wave frequencies ranging from 18 GHz to 325 GHz, covering a wide range of applications.

  2. Gain: Typically offers a gain of 22 dB to 24 dB, enhancing signal reception and transmission efficiency.

  3. Waveguide Structure: Utilizes a rectangular waveguide structure, providing excellent waveguide characteristics and low transmission losses.

  4. Horn Design: Incorporates a horn-shaped design, allowing for a wide beamwidth and excellent radiation characteristics, suitable for long-distance and wide-area communication needs.

  5. Materials and Manufacturing: Usually constructed from metal materials such as aluminum, brass, or copper, offering durability and stability.

  6. Application Areas: Widely used in antenna arrays for radar systems, transceivers in communication systems, remote sensing, and astronomical observations.

  7. Performance Features: Offers high gain, low losses, excellent radiation characteristics, and interference resistance, suitable for complex communication environments and demanding applications.

  8. Installation and Adjustment: Relatively straightforward to install and adjust, allowing for customization and optimization based on specific requirements.

Understanding these details provides insights into the role and advantages of the rectangular waveguide horn antenna operating in the 18 GHz to 325 GHz frequency range with gains of 22 dB to 24 dB in microwave and millimeter-wave communication systems, as well as its specific application methods and performance requirements in various scenarios.

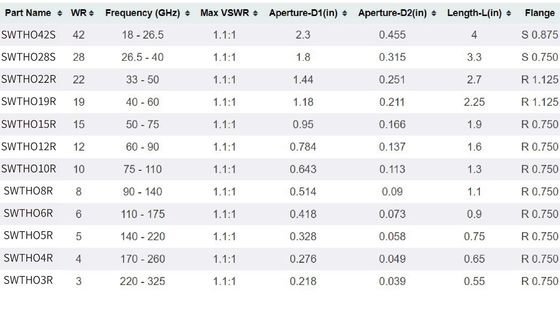

Technical Parameters
