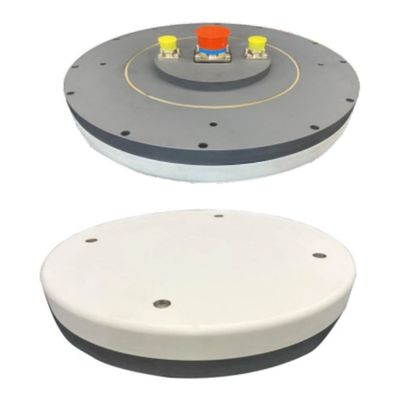

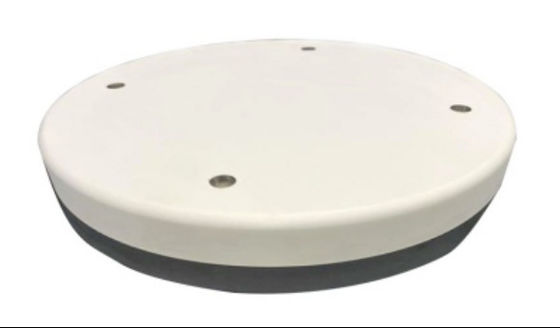

BD2-B3 B1 GLONAS 7 Element GPS Anti Jamming Antenna for wireless communication and radar systems
  • BD2-B3 B1 GLONAS 7 Element GPS Anti Jamming Antenna for wireless communication and radar systems
  • BD2-B3 B1 GLONAS 7 Element GPS Anti Jamming Antenna for wireless communication and radar systems
  • BD2-B3 B1 GLONAS 7 Element GPS Anti Jamming Antenna for wireless communication and radar systems
  • BD2-B3 B1 GLONAS 7 Element GPS Anti Jamming Antenna for wireless communication and radar systems

BD2-B3 B1 GLONAS 7 Element GPS Anti Jamming Antenna for wireless communication and radar systems

Place of Origin China
Brand Name SWT
Certification CE
Model Number SWT-JRT-7B3 B3
Product Details
Name:
7-Element B3-Anti-Interference Antenna
Received Signal:
BD2-B3, B1/GPS/GLONAS
Number Of Channels:
7 Channel B3, 1 Channel B1/GPS/GLONASS
Channel Gain:
37±2 (dB)
Output Signal Power:
-65±5 (dBm)
Power Consumption:
25 (W)
Operating Temperature:
- 40 ~ 85 ℃
Storage Temperature:
- 55 ~ 85 ℃
Power Supply:
DC28 V
Received Signal:
Bd2-B3, B1/GPS/Glonass
Installation Size:
180x180 Mm
Applications:
Wi-Fi Networks, Mobile Communication ,Radar System
High Light:

7 element Anti Jamming Antenna

,

Anti Jamming Antenna CE

,

gps antenna GLONAS

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD) 9000-11000/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

BD2-B3 B1 GLONAS 7 Element GPS Anti Jamming Antenna for wireless communication and radar systems



Product Description



The 7-Element Anti-Interference Antenna is a specialized antenna with seven radiating elements designed to mitigate various interference signals.

  1. Element Count: The antenna features seven radiating elements, indicating a more complex structure and design for enhanced signal processing and performance optimization.
  2. Anti-Interference Capability: It is specifically designed to counteract different types of interference signals, including those from other wireless devices, electromagnetic interference, or noise interference.
  3. Signal Processing: The antenna may be equipped with advanced signal processing techniques such as beamforming or diversity reception to improve anti-interference performance and signal quality.
  4. Directional Performance: It may have directional characteristics, allowing it to selectively receive or transmit signals from specific directions and reduce the impact of external interference.
  5. Multi-Element Design: The multi-element design contributes to increased gain, directionality, and anti-interference capabilities, making it perform well in complex wireless environments.
  6. Applications: It is suitable for various wireless communication systems such as Wi-Fi networks, mobile communication base stations, radar systems, especially in scenarios requiring high reliability and anti-interference performance.

In summary, the 7-Element Anti-Interference Antenna is designed to combat a wide range of interference signals, featuring a multi-element design and advanced signal processing techniques for use in diverse wireless communication and radar systems.



Function



1.Channel 1 and channel 7 receive BD2-B3 satellite navigation signals, and realize the anti-jamming function of the frequency point signals;

2.Receive and amplify B1/GPS/GLONASS navigation signals with low noise, and synthesize shunt output with radio frequency signals of BD2-B3 after anti-interference;

3.Straight-through, anti-interference function switch;

4.With self-detection function;

5.Online software upgrade.



Main technical parameters

Received signal BD2-B3, B1/GPS/GLONASS

Size (mm)



External dimension: 230x50
Number of channels 7 channel B3, 1 channel B1/GPS/GLONASS   Installation size :



Anti-jamming performance

Single broadband

interference ≥95dB;

Broadband interference ≥80dB



Vibration, shock, electromag-netic compatibility, etc



Meet the relevant requirements of GJB

Channel gain (dB) 37±2 Physical interface Low frequency connector:

JY27496E

Output signal power (dBm) -65±5   Rf connector: N
Power supply (V) DC28 Operating temperature (℃) - 40 ~ 85℃
Power consumption (W) 25 Storage temperature (℃) - 55 ~ 85℃



BD2-B3 B1 GLONAS 7 Element GPS Anti Jamming Antenna for wireless communication and radar systems 0

BD2-B3 B1 GLONAS 7 Element GPS Anti Jamming Antenna for wireless communication and radar systems 1

BD2-B3 B1 GLONAS 7 Element GPS Anti Jamming Antenna for wireless communication and radar systems 2

BD2-B3 B1 GLONAS 7 Element GPS Anti Jamming Antenna for wireless communication and radar systems 3
