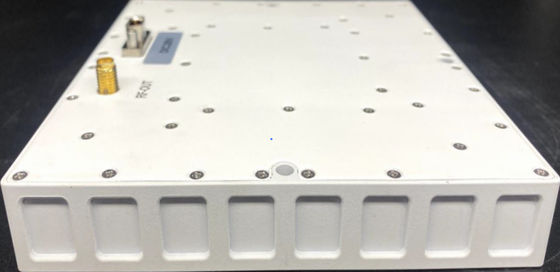

4-Element 3 Nulls Gnss Anti-Jamming Antenna for GPS L1 Beidou B1, Receive Glonass G1 (anti-jam) Anti-Interference Antenn
  • 4-Element 3 Nulls Gnss Anti-Jamming Antenna for GPS L1 Beidou B1, Receive Glonass G1 (anti-jam) Anti-Interference Antenn
  • 4-Element 3 Nulls Gnss Anti-Jamming Antenna for GPS L1 Beidou B1, Receive Glonass G1 (anti-jam) Anti-Interference Antenn
  • 4-Element 3 Nulls Gnss Anti-Jamming Antenna for GPS L1 Beidou B1, Receive Glonass G1 (anti-jam) Anti-Interference Antenn
  • 4-Element 3 Nulls Gnss Anti-Jamming Antenna for GPS L1 Beidou B1, Receive Glonass G1 (anti-jam) Anti-Interference Antenn

4-Element 3 Nulls Gnss Anti-Jamming Antenna for GPS L1 Beidou B1, Receive Glonass G1 (anti-jam) Anti-Interference Antenn

Place of Origin China
Brand Name SWT
Certification CE
Model Number SWT-JRTB3-300
Product Details
Name:
4-Element Anti-Jamming Antenna
Number Of Channels:
4 B1 Elements, 1 Element Glonass
B1 Gain Of Channel:
40dB±1 DB
Output Signal Power:
-60±5 (dBm)
Power Consumption:
≤10(28V/0.36A) (W)
Number Of Channels:
4 Channels
Operating Temperature:
- 40 ~ 85 ℃
Storage Temperature:
- 55 ~ 85 ℃
Weight:
≤650 G
Power Consumption:
10W(28V/0.36A)
Packing:
Standard Packing
High Light:

4 channels Anti Jamming Antenna

,

Anti Jamming Antenna BD2 B3

,

4 element antenna B1 Gain 40dB

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD) 1-2/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

4-Element 3 Nulls Gnss Anti-Jamming Antenna for GPS L1 Beidou B1, Receive Glonass G1 (anti-jam) Anti-Interference Antenna



Product Description



The 4-Element 3 Nulls GNSS Anti-Jamming Antenna is a specialized antenna designed to mitigate interference and jamming in GNSS (Global Navigation Satellite System) applications. Here are key points about this antenna:

  1. Element Count: The antenna comprises four radiating elements, strategically arranged to achieve anti-jamming capabilities.
  2. 3 Nulls Design: The "3 Nulls" feature refers to the antenna's ability to create three null points in its radiation pattern, where incoming jamming signals are significantly attenuated or canceled out.
  3. GNSS Technology: Designed specifically for GNSS systems like GPS, GLONASS, Galileo, and BeiDou, which rely on satellite signals for accurate positioning and navigation.
  4. Anti-Jamming Performance: The antenna's design and nulling capabilities allow it to reject or suppress interference and jamming signals, ensuring reliable GNSS reception even in challenging environments.
  5. Multi-Element Configuration: The use of multiple elements enables beamforming or nulling techniques, enhancing the antenna's ability to mitigate interference from specific directions.
  6. Applications: Suitable for a wide range of GNSS applications, including military, aviation, maritime, and precision agriculture, where anti-jamming capabilities are crucial for operational success.
  7. Performance Optimization: The antenna's design focuses on optimizing signal reception while minimizing the impact of jamming, ensuring accurate and reliable positioning information.

Overall, the 4-Element 3 Nulls GNSS Anti-Jamming Antenna is designed to enhance GNSS system resilience against interference and jamming, making it a valuable component in critical navigation and positioning applications.

Function

Receive BD2-B3 satellite signal, and realize the anti-jamming function of BD2-B3 frequency point satellite signal

Application

Airborne, vehicle-borne, ship-borne, ground systems and other application platforms.

Main technical parameters

Signal of reception BD2 B3 Power supply (V) DC9~DC36
Number of channels 4 channels Power consumption (W) ≤10(28V/0.36A)
B3 Anti-jamming performance Three broadband: 75dB ~ 80Db; Single broadband: 90dB ~ 95 dB Weight (kg) ≤650g
    Size (mm)

134 m x 134mm x 20mm

(Height without connectors)

B1 Gain of channel(dB) 40±1 Physical interface J30J-9 core, SMA-K
Output signal power (dBm) -60±5 Communication interface Serial port, TTL level
Channel isolation (dB) ≥65 Operating temperature (℃) -45~85
Channel gain consistency ≤±1 Storage temperature (°C) -55~85
Channel gain consistency(° ) ≤±5 Vibration, shock, electrom- agnetic compatibility, etc Meet the relevant requirements of GJB
