P/N: SWT-JRL1-100
4-element GPS L1/GLONASS G1 Anti Jamming Antenna
Descriptions
- Nanjing Shinewave provides a series of GNSS anti-jamming antennas, which are widely used in military and industrial fields.
- The working frequencies cover GPS L1 L2, Beidou B1 B2 B3, Glonass G1, etc. We have 2-element, 4-element and 7-element series of anti-jamming antennas, which are capable of rejecting up to 1, 3, and 6 jamming signals, respectively. Radiation pattern nulling techniques and multi-beam techniques are widely used in the products. It is possible to realize anti-jamming on two or three frequencies simultaneously, such as GPS L1/ Beidou B1.
- Various kinds of jamming signals, like, wideband signals, frequency-sweep signals, pulsed signals, single-tone signals, and narrow-band signals can be rejected. The anti-jamming antennas can treat jamming signals with a large jamming/signal ratio. For special requirements, we provide customized R&D and manufacturing.
Functions and Features
- Anti Jamming receiving function on GPS L1 satellite signals.
- Receive GPS L1 and GLONASS G1 satellite signals.
- Capable of rejecting 3 jamming signals from different directions with a maximum jamming/signal ratio of 85dB.
- Compact dimensions and light weight.
Applications
Airborne, vehicle-borne, shipborne, ground systems and other application platforms.
Main Technical Parameters
| Anti-jamming Frequency |
GPS L1 |
|
|
| Received signal |
GPS L1, GLONASS G1 |
Power Supply (V) |
DC 5V~DC 36V |
| Number of Elements |
4-elements |
Power Consumption (W) |
10 (28 V / 0.36 A) |
|
Jamming/Signal Ratio
|
3 wideband jammings: 80dB~85dB
1 wideband jamming: 90dB~95dB
|
Weight (kg)
|
< 0.4 kg
|
| Physical Interfaces |
J30J-9 core, SMA-K |
Dimensions (mm) |
130mm x 130mm x 25mm (height not including the connectors)
|
| Communication Interface |
Serial port, RS-232C level (customizable) |
Output Data Format |
NMEA0183 |
| Operating Temperature (℃) |
- 45 ~ 85 |
Storage Temperature (℃) |
- 45 ~ 85 |
Photos:

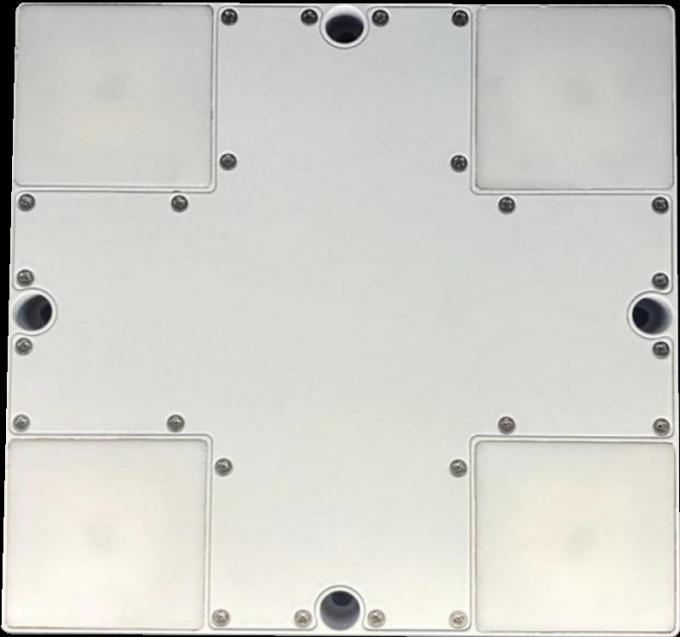

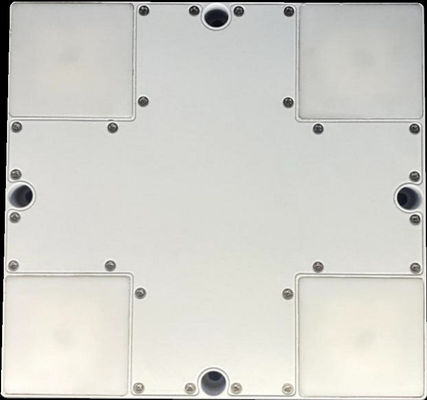

Top view:

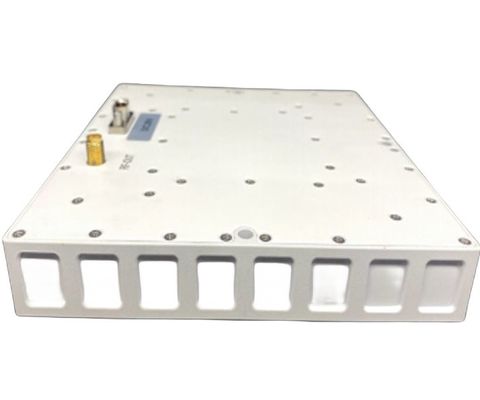

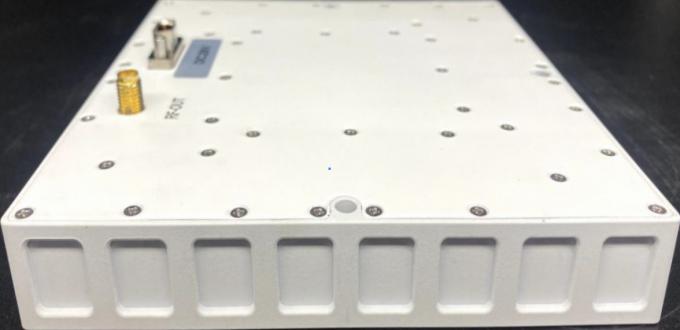

Side View:
