2 To 3 GHz S Band Amplifier P1dB 20 dBm RF Operational Amplifier
  • 2 To 3 GHz S Band Amplifier P1dB 20 dBm RF Operational Amplifier
  • 2 To 3 GHz S Band Amplifier P1dB 20 dBm RF Operational Amplifier

2 To 3 GHz S Band Amplifier P1dB 20 dBm RF Operational Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-20003000-45C
Product Details
Packing:
Standard Packing
Frequency Range:
2-3 GHz
Small Signal Gain:
45 DB
Small Signal Gain Flatness:
±1.5 DB
Output Power 1dBcompression:
20 DBm
IP3:
30 DBm
Dimensions:
44.7*29.46*17 Mm
Weight:
80 G
Highlight:

2GHz s band amplifier

,

3GHz s band amplifier

,

31.6W rf operational amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

S Band Power Amplifier 2-3 GHz P1dB 20 dBm RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 2   3 GHz
Small Signal Gain 45     dB
Small Signal Gain Flatness     ±1.5 dB
Noise Figure     1.5 dB
Output Power 1dBcompression 20     dBm
IP3 30     dBm
Input Return Loss 15     dB
DC Power Supply   12   Volt
Current   500   mA
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +20 dBm
Operating Temperature -40   +85
Non-operating Temperature -55   +125
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

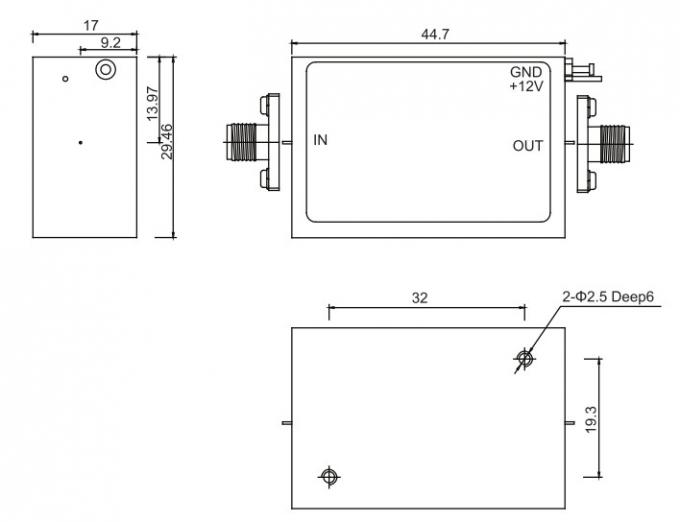

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 44.7*29.46*17 Max Millimeter
Weight 80 Max gram
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50   Ohms




2 To 3 GHz S Band Amplifier P1dB 20 dBm RF Operational Amplifier 0
2 To 3 GHz S Band Amplifier P1dB 20 dBm RF Operational Amplifier 1



2 To 3 GHz S Band Amplifier P1dB 20 dBm RF Operational Amplifier 2
2 To 3 GHz S Band Amplifier P1dB 20 dBm RF Operational Amplifier 3
