2 To 18 GHz Ku Band Power Amplifier P1dB 17 dBm Wifi RF Amplifier
  • 2 To 18 GHz Ku Band Power Amplifier P1dB 17 dBm Wifi RF Amplifier
  • 2 To 18 GHz Ku Band Power Amplifier P1dB 17 dBm Wifi RF Amplifier

2 To 18 GHz Ku Band Power Amplifier P1dB 17 dBm Wifi RF Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-200018000-13C
Product Details
Packing:
Standard Packing
Frequency Range:
2-18 GHz
Small Signal Gain:
13 DB
Small Signal Gain Flatness:
±2 DB
Output Power 1dBcompression:
17 DBm
VSWR:
2:1
Dimensions:
34.4*16.8*8.1 Mm
Weight:
50 G
Highlight:

2GHz Ku Band Power Amplifier

,

18GHz Ku Band Power Amplifier

,

0.02W wifi rf amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

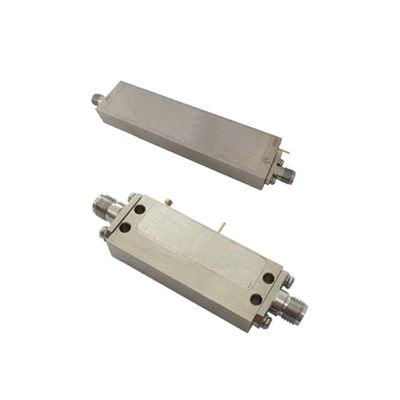

Ku Band Power Amplifier 2-18GHz P1dB 17 dBm RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.


ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 2   18 GHz
Small Signal Gain 13     dB
Small Signal Gain Flatness     ±2 dB
Noise Figure     6 dB
Output Power 1dBcompression 17     dBm
IP3       dBm
VSWR     2:1 Ratio
DC Power Supply   12   Volt
Current   200   mA
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +20 dBm
Operating Temperature -40   +85
Non-operating Temperature -55   +125
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

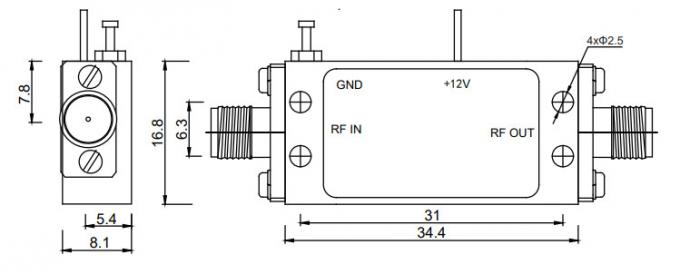

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 34.4*16.8*8.1 Max Millimeter
Weight 50 Max gram
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50   Ohms



2 To 18 GHz Ku Band Power Amplifier P1dB 17 dBm Wifi RF Amplifier 0


2 To 18 GHz Ku Band Power Amplifier P1dB 17 dBm Wifi RF Amplifier 1



2 To 18 GHz Ku Band Power Amplifier P1dB 17 dBm Wifi RF Amplifier 2
2 To 18 GHz Ku Band Power Amplifier P1dB 17 dBm Wifi RF Amplifier 3
