Ka Band Power Amplifier 18-40 GHz P1dB 23 dBm RF Power Amplifier
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Frequency Range |
18 |
|
40 |
GHz |
| Small Signal Gain |
|
19 |
|
dB |
| Small Signal Gain Flatness |
|
|
±2 |
dB |
| Noise Figure |
|
|
6 |
dB |
| Output Power 1dBcompression |
23 |
|
|
dBm |
| IP3 |
22 |
|
|
dBm |
| Harmonic Rejection |
|
-10 |
|
|
| VSWR |
|
|
2.2:1 |
Ratio |
| DC Power Supply |
|
5 |
|
Volt |
| Current |
|
140 |
|
mA |
| ENVIRONMENTAL RATINGS |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Max Input power |
|
|
+20 |
dBm |
| Operating Temperature |
-40 |
|
+85 |
℃ |
| Non-operating Temperature |
-55 |
|
+125 |
℃ |
| Relative humidity (non-condensing) |
|
95 |
|
% |
| Altitude (MIL-STD-810F) |
10000 |
|
30000 |
feet |
| Shock / Vibration (MIL-STD-810F) |
|
Airbone |
|
|
| MECHANICAL SPECIFICATIONS |
| PARAMETER |
VALUE |
LIMITS |
UNIT |

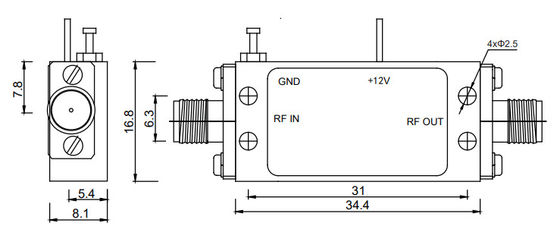

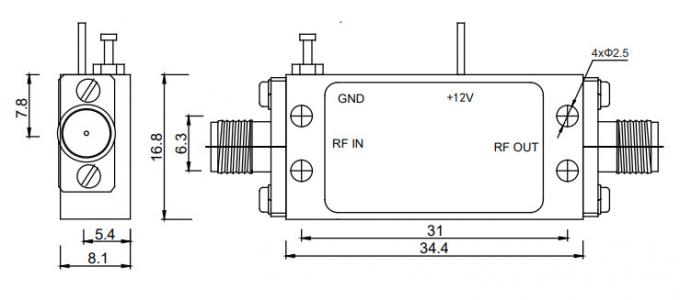

| Dimensions |
34.4*16.8*8.1 |
|
Millimeter |
| Weight |
50 |
|
gram |
| RF Connectors Input |
2.92-F |
|
|
| RF Connectors output |
2.92-F |
|
|
| Impedance |
50 |
|
Ohms |
