High Gain 0.05~ 0.5 GHz Psat 40 dBm Enhances signal strength RF Power Amplifier for various communication systems
  • High Gain 0.05~ 0.5 GHz Psat 40 dBm Enhances signal strength RF Power Amplifier for various communication systems
  • High Gain 0.05~ 0.5 GHz Psat 40 dBm Enhances signal strength RF Power Amplifier for various communication systems
High Gain 0.05~ 0.5 GHz Psat 40 dBm Enhances signal strength RF Power Amplifier for various communication systems

High Gain 0.05~ 0.5 GHz Psat 40 dBm Enhances signal strength RF Power Amplifier for various communication systems

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-50500-40C
Product Details
Frequency Range:
0.05-0.5 GHz
Power Gain:
40 DB
Power Gain Flatness:
±2 DB
Output Power(Psat CW):
40 DBm
Input VSWR:
2:1
Dimensions:
2U D: 500 Mm
Weight:
13000±2500 G
Spurious:
-50dBc
Harmonic:
-13dBc
Operating Temperature:
0~55℃
Applications:
Communication Systems,Signal Amplification,Scientific Research
Packing:
Standard Packing
High Light:

0.05GHz VHF Power Amplifier

,

0.5GHz VHF Power Amplifier

,

10W vhf uhf linear amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

High Gain 0.05~ 0.5 GHz Psat 40 dBm Enhances signal strength RF Power Amplifier for various communication systems



Description

The 0.05~0.5 GHz Psat 40 dBm RF Power Amplifier is a versatile and high-performance amplifier designed for low-frequency broadband applications. This amplifier is ideal for communication systems, test and measurement, signal amplification, and various other RF applications requiring robust power output and excellent linearity.

Key Features:

  1. Broad Frequency Range: Operates over a wide frequency range from 50 MHz to 500 MHz, suitable for multiple low-frequency applications.
  2. High Output Power: Provides a saturated output power (Psat) of 40 dBm, equivalent to 10 watts.
  3. High Gain: Delivers significant gain to amplify weak input signals to a high-power output.
  4. Low Noise Figure: Ensures minimal noise introduction, maintaining high signal integrity.
  5. Rugged Design: Built with durable materials and housed in a robust enclosure to withstand harsh operating conditions.
  6. Efficient Cooling: Equipped with a cooling system to maintain optimal operating temperatures, ensuring reliable performance.
  7. Protection Features: Includes built-in protection against over-temperature, over-voltage, and over-current conditions to safeguard the amplifier.
  8. Linear Performance: Provides excellent linearity, reducing distortion and preserving the quality of the amplified signal.

Applications:

  1. Communication Systems: Enhances signal strength for various communication systems, including VHF/UHF radios.
  2. Test and Measurement: Essential for RF testing and measurement in laboratory and field environments.
  3. Signal Amplification: Used in signal amplification applications to boost weak signals for better reception and transmission.
  4. Broadcasting: Suitable for FM, VHF, and other broadcasting applications, ensuring clear and strong signal transmission.
  5. Scientific Research: Ideal for research projects requiring high-power, low-frequency RF amplification.

Advantages:

  • Versatility: Suitable for a wide range of frequencies and applications, offering flexibility in deployment.
  • High Reliability: Built to perform reliably in demanding conditions with robust construction and protection features.
  • Ease of Integration: Designed for easy integration into existing systems with standard RF interfaces and control options.

Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25℃
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 0.05   0.5 GHz
Power Gain 40     dB
Power Gain Flatness   ±2   dB
Output Power(Psat CW) 40     dBm
Spurious -50     dBc
Harmonic -13     dBc
Input VSWR     2:1 Ratio
Output VSWR     2.5:1 Ratio
Input Voltage 180 220 240 Volt
Human-computer Interface touch screen LCD: Voltage, Current, Temperature, FWD/REV Power
Program Control Interfac TCP/IP and Ethernet



Note:

1.Input Signal: AM, FM, CW, Pulse, LFM, Phase coded.

2.Over Temperature Protection; Over REV VSWR Protection；Over incentive protection.

3.Air forced cool.

4.Protection from Rain, Sand and Dust.



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power   0±2   dBm
Operating Temperature 0   +55 ℃
Non-operating Temperature -10   +70 ℃
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone



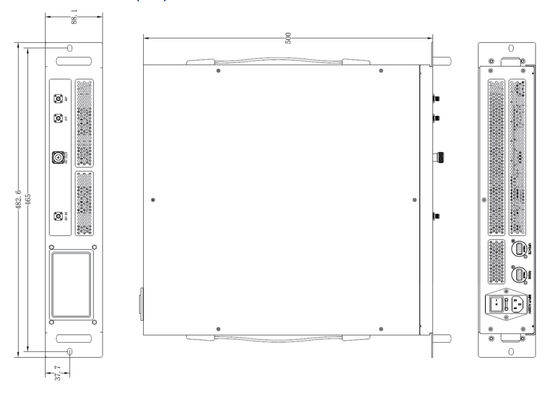

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 2U D: 500mm Max Millimeter
Weight 13000±2500 Max gram
RF Connectors Input N-F
RF Connectors output N-F
Impedance 50   Ohms

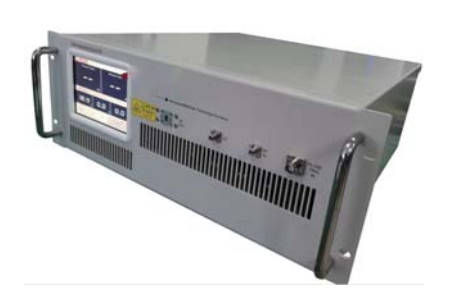

High Gain 0.05~ 0.5 GHz Psat 40 dBm Enhances signal strength RF Power Amplifier for various communication systems 0

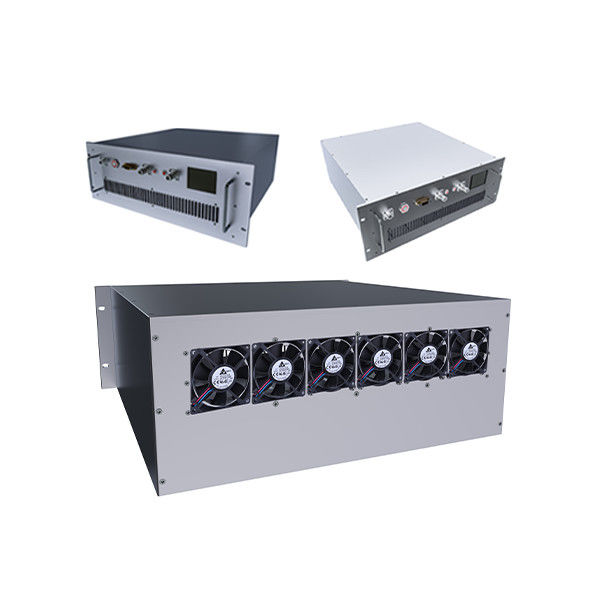

High Gain 0.05~ 0.5 GHz Psat 40 dBm Enhances signal strength RF Power Amplifier for various communication systems 1
