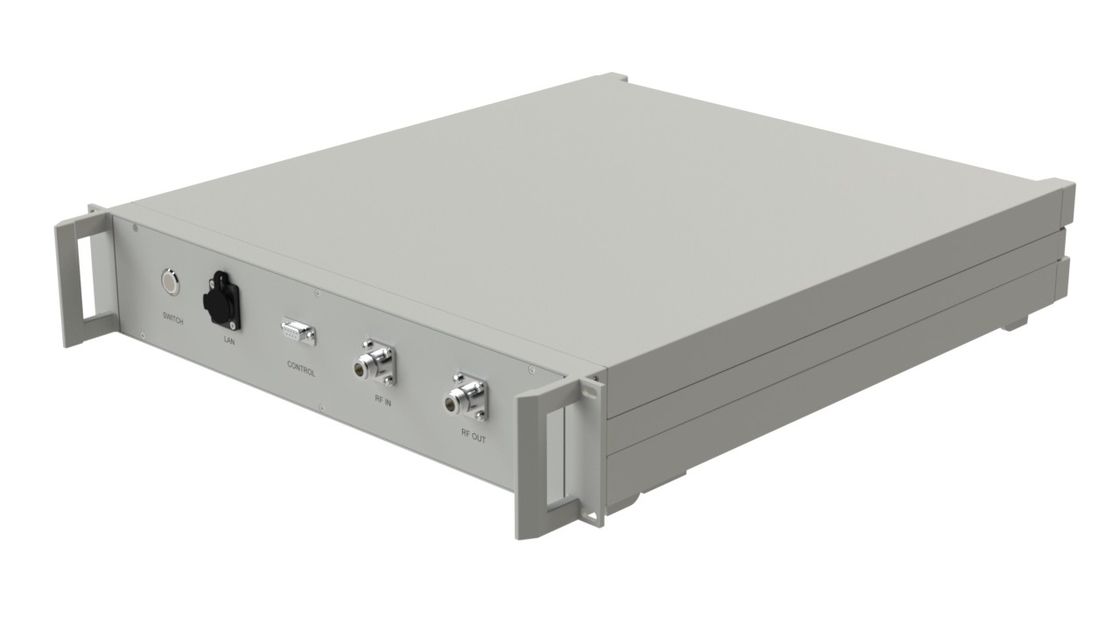

0.5-2 GHz Psat CW 40 dBm L Band Line Amplifier Broadband RF Amplifier 180V 220V
  • 0.5-2 GHz Psat CW 40 dBm L Band Line Amplifier Broadband RF Amplifier 180V 220V
  • 0.5-2 GHz Psat CW 40 dBm L Band Line Amplifier Broadband RF Amplifier 180V 220V

0.5-2 GHz Psat CW 40 dBm L Band Line Amplifier Broadband RF Amplifier 180V 220V

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-5002000-40C
Product Details
Packing:
Standard Packing
Frequency Range:
0.5-2 GHz
Power Gain:
40 DB
Power Gain Flatness:
±3 DB
Output Power(Psat CW):
40 DBm
Spurious:
-60 DBc
Dimensions:
2U 19inch Rack Mount
Weight:
13000±2500 G
High Light:

10W l band line amplifier

,

l band line amplifier 180V

,

broadband rf amplifier 220V

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



L Band Power Amplifier 0.5-2 GHz Psat CW 40 dBm RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 0.5   2 GHz
Power Gain 40     dB
Power Gain Flatness   ±3   dB
Output Power(Psat CW) 40     dBm
Spurious   -60   dBc
Harmonic   -18   dBc
Input VSWR       Ratio
Output VSWR       Ratio
Input Voltage 180 220 240 Volt
Human-computer Interface touch screen LCD: Voltage, Current, Temperature, FWD/REV Power
Program Control Interfac TCP/IP and Ethernet



Note:

1. Over Temperature Protection; Over REV VSWR Protection;Over incentive protection.

2. Air forced cool.

3. Protection from Rain, Sand and Dust.

ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power       dBm
Operating Temperature 0   +55
Non-operating Temperature -10   +70
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT

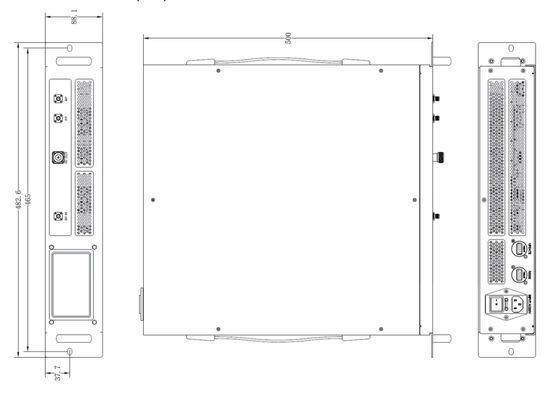

Dimensions 2U D: 500mm Max Millimeter
Weight 13000±2500 Max gram
RF Connectors Input SMA-F
RF Connectors output N-F
Forward / Reverse Detection Connector SMA-F
Impedance 50   Ohms
