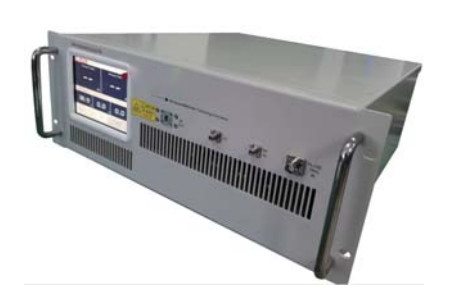

S Band Power Amplifier 0.6-2.7 GHz Past CW 53 dBm RF Power Amplifier
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Frequency Range |
0.6 |
|
2.7 |
GHz |
| Power Gain |
|
46.5±2.5 |
|
dB |
| Power Gain Flatness |
|
±3 |
|
dB |
| Output Power (Psat CW) |
53 |
|
|
dBm |
| Spurious @ Pout=150Watt |
|
-70 |
-65 |
dBc |
| Harmonic |
|
|
|
dBc |
| VSWR Input |
|
|
2.5:1 |
Ratio |
| Input Voltage |
220V/50Hz |
| Human-computer Interface |
LCD display information: Voltage, Current, Gain, FWD Power |
| Program Control Interfac |
RS422 and Ethernet |
Note:
1. Power Consumption@200W CW
2. Cooling: Internal Forced Fancooling, fromfront to back
| ENVIRONMENTAL RATINGS |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Max Input power |
|
|
+10 |
dBm |
| Operating Temperature |
-10 |
|
+50 |
℃ |
| Non-operating Temperature |
-45 |
|
+55 |
℃ |
| Relative humidity (non-condensing) |
|
95 |
|
% |
| Altitude |
|
/ |
|
feet |
| Shock / Vibration |
|
/ |
|
|
| MECHANICAL SPECIFICATIONS |
| PARAMETER |
VALUE |
LIMITS |
UNIT |

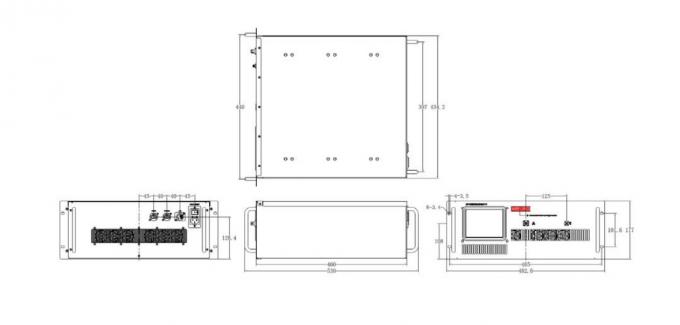

| Dimensions |
19’ 4U |
|
Millimeter |
| Weight |
20000 |
|
gram |
| RF Connectors Input |
SMA-F |
|
|
| RF Connectors output |
N-F |
|
|
| Impedance |
50 |
|
Ohms |
