High performance 0.8 - 2 GHz L Band Power Amplifier Psat 57 dBm High Power RF Amplifier For Test and Measurement

High performance 0.8 - 2 GHz L Band Power Amplifier Psat 57 dBm High Power RF Amplifier For Test and Measurement

High performance 0.8 - 2 GHz L Band Power Amplifier Psat 57 dBm High Power RF Amplifier For Test and Measurement

Place of Origin	China
Brand Name	SWT
Model Number	SW-PA-8002000-60C

Product Details

Packing:

Standard Packing

Frequency Range:

0.8-2 GHz

Gain:

60 DB

Gain Flatness:

±1.5 DB

Output Powe (Psat):

57 DBm

Input VSWR:

2:1

Dimensions:

6U Rack Mount

Weight:

25000 G

Spurious:

-60dBc

Harmonic:

-10dBc

Operating Temperature:

-10~50℃

Applications:

Electronic Warfare,Test And Measurement,Broadcasting

High Light:

0.8GHz L Band Power Amplifier

,

2GHz L Band Power Amplifier

,

1000W high power rf amplifier

Payment & Shipping Terms

Minimum Order Quantity

1/pcs

Packaging Details

Standard Packing

Delivery Time

5-8 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100pcs per month

Product Description

High performance 0.8 - 2 GHz L Band Power Amplifier Psat 57 dBm High Power RF Amplifier For Test and Measurement

Description

The 0.8-2 GHz Psat 57 dBm RF Power Amplifier Box is a high-performance amplifier designed for a wide range of RF applications, including communications, radar, and electronic warfare. This amplifier provides exceptional power output, linearity, and efficiency, making it ideal for demanding environments.

Key Features:

Wide Frequency Range: Operates over a broad frequency range from 0.8 GHz to 2 GHz, suitable for various RF applications.
High Output Power: Delivers a saturated output power (Psat) of 57 dBm, equivalent to approximately 500 watts.
High Gain: Provides significant gain to amplify weak input signals to a high-power output.
Efficient Cooling: Equipped with an advanced cooling system to maintain optimal operating temperatures and ensure reliable performance.
Robust Design: Built with rugged components and housed in a durable enclosure to withstand harsh environments and prolonged use.
High Linearity: Ensures excellent linearity, minimizing distortion and maintaining signal integrity.
Protection Features: Includes built-in protection against over-temperature, over-voltage, and over-current conditions to safeguard the amplifier.

Applications:
Communications: Enhances signal strength for long-range communication systems, including base stations and repeaters.
Radar Systems: Provides high-power amplification for radar transmitters, improving target detection and range.
Electronic Warfare: Used in jamming systems and other electronic warfare applications to disrupt enemy communications and radar.
Test and Measurement: Essential for high-power RF testing and measurements in laboratory and field environments.
Broadcasting: Amplifies signals for FM, TV, and other broadcasting applications to cover larger areas with clear signals.
Advantages:
Versatility: Suitable for a wide range of frequencies and applications, offering flexibility in deployment.
High Reliability: Built to perform reliably in demanding conditions with robust construction and protection features.
Ease of Integration: Designed for easy integration into existing systems with standard RF interfaces and control options.

Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25℃
PARAMETER	MIN	TYPICAL	MAX	UNIT
Frequency Range	0.8		2	GHz
Gain	60			dB
Small Signal Gain Flatness		±1.5		dB
Noise Figure				dB
Output Powe (Psat)	57			dBm
Spurious		-60		dBc
Harmonic		-10		dBc
Input VSWR			2:1	Ratio
Input Voltage		220VAC
Human-computer Interface	LCD display information: Voltage, Current, Temperature, FWD/REV Power
Program Control Interfac	RS232 and Ethernet

Note:

1. Forced Air Cooling.

2. Over Temperature Protection; Over Voltage Protection; Over Current Protection;

Over REV VSWR Protection.

ENVIRONMENTAL RATINGS
PARAMETER	MIN	TYPICAL	MAX	UNIT
Max Input power		+10		dBm
Operating Temperature	-10		+50	℃
Non-operating Temperature	-20		+70	℃
Relative humidity (non-condensing)		95		%
Altitude (MIL-STD-810F)		TBD		feet
Shock / Vibration (MIL-STD-810F)		TBD

MECHANICAL SPECIFICATIONS
PARAMETER	VALUE	LIMITS	UNIT
Dimensions	6U	Max	Millimeter
Weight	25000	Max	gram
RF Connectors Input	SMA-F
RF Connectors output	N-F
Output Coupling Connectors	SMA-F
Impedance	50		Ohms

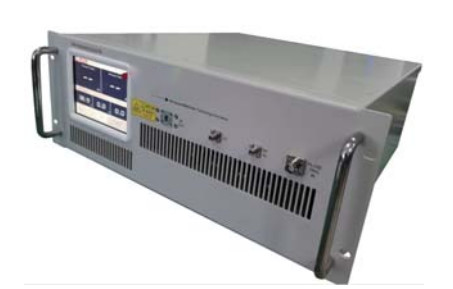

High performance 0.8 - 2 GHz L Band Power Amplifier Psat 57 dBm High Power RF Amplifier For Test and Measurement 0
