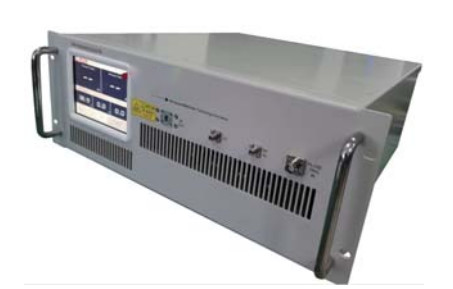

C Band Power Amplifier 4-8 GHz Psat CW 25Watt RF Power Amplifier
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Frequency Range |
4 |
|
8 |
GHz |
| Power Gain |
45 |
|
|
dB |
| Gain control |
0 |
|
45 |
dB |
| Power Gain Flatness |
|
±2.5 |
|
dB |
| Output Power (Psat CW) |
25 |
|
|
Watt |
| Spurious |
|
|
-60 |
dBc |
| Harmonic |
|
-15 |
|
dBc |
| VSWR |
|
2:1 |
|
Ratio |
| Power waste |
|
|
|
Ratio |
| Input Voltage |
|
220 |
|
Volt |
| Human-computer Interface |
Touch screen LCD: Voltage, Current, Gain |
| Program Control Interfac |
RS422 and Ethernet |
Note:
1. Over temperature protection: 80℃.
2. Forced air cooling.
| ENVIRONMENTAL RATINGS |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Max Input power |
|
|
+10 |
dBm |
| Operating Temperature |
-20 |
|
+60 |
℃ |
| Non-operating Temperature |
-40 |
|
+85 |
℃ |
| Relative humidity (non-condensing) |
|
95 |
|
% |
| Altitude (MIL-STD-810F) |
10000 |
|
30000 |
feet |
| Shock / Vibration (MIL-STD-810F) |
|
Airbone |
|
|
| MECHANICAL SPECIFICATIONS |
| PARAMETER |
VALUE |
LIMITS |
UNIT |

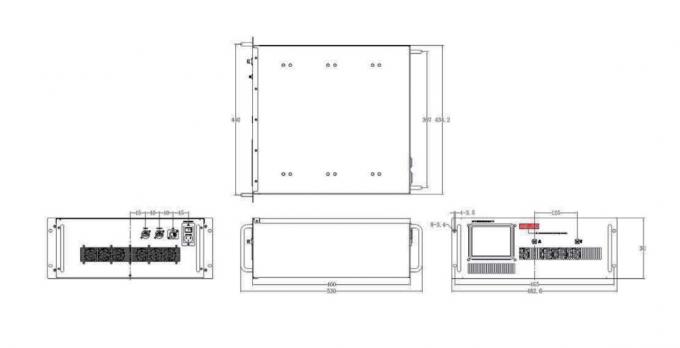

| Dimensions |
2U |
Max |
Millimeter |
| Weight |
15000 |
Max |
gram |

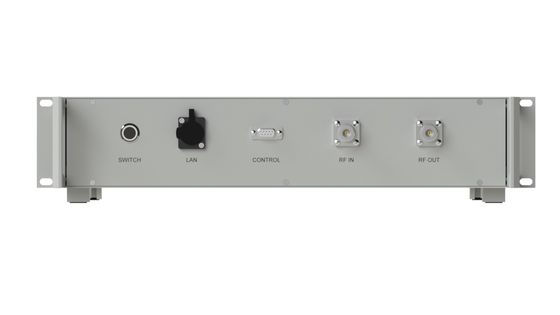

| RF Connectors Input |
SMA-F |
|
|
| RF Connectors output |
SMA-F |
|
|
| Forward / Reverse Detection Connectors |
|
|
|
| Impedance |
50 |
|
Ohms |
