9 To 9.5 GHz X Band Power Amplifier Psat 8000 W RF Power Amplifier
  • 9 To 9.5 GHz X Band Power Amplifier Psat 8000 W RF Power Amplifier
  • 9 To 9.5 GHz X Band Power Amplifier Psat 8000 W RF Power Amplifier

9 To 9.5 GHz X Band Power Amplifier Psat 8000 W RF Power Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-90009500-70C
Product Details
Packing:
Standard Packing
Frequency Range:
9-9.5 GHz
Gain:
70 DB
Gain Flatness:
±2 DB
Output Powe (Psat):
8000 Watt
VSWR:
2:1
Dimensions:
6U D:500mm
Weight:
60000 G
Highlight:

9GHz X Band Power Amplifier

,

9.5GHz X Band Power Amplifier

,

rf amplifier module 500mm

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



X Band Power Amplifier 9-9.5 GHz Psat 8000 W RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 9   9.5 GHz
Gain 70     dB
Gain control       dB
Gain Flatness   ±2   dB
Noise Figure       dB
Output Power (Psat)   8000   Watt
Spurious   -60   dBc
Harmonic   -15   dBc
VSWR     2:1 Ratio
Input Voltage 220VAC
Human-computer Interface touch screen LCD:FWD Power,Temperature,Voltage,Current
Program Control Interfac RS232 and Ethernet



Note:

1. Pulse work style:Duty Cycle:5%(Max). Pulse Width:0.2-100us.

2. Over Temperature Protection; Over Voltage Protection; Over Current Protection;Over REV VSWR Protection.

3. Air forced cool.



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power       dBm
Operating Temperature -20   +50
Non-operating Temperature -20   +70
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F)   TBD   feet
Shock / Vibration (MIL-STD-810F)   TBD

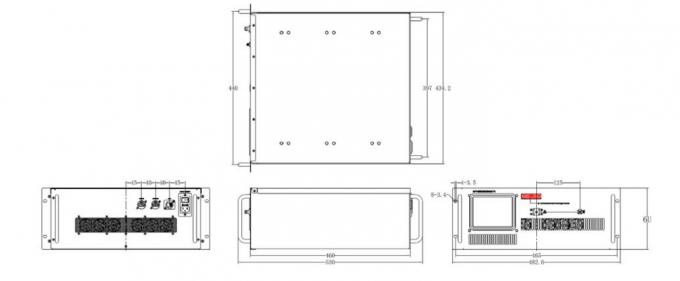

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 6U D:500mm Max Millimeter
Weight 60000 Max gram
RF Connectors Input SMA-F
RF Connectors output WR90
Forward / Reverse Detection Connectors
Impedance     Ohms
