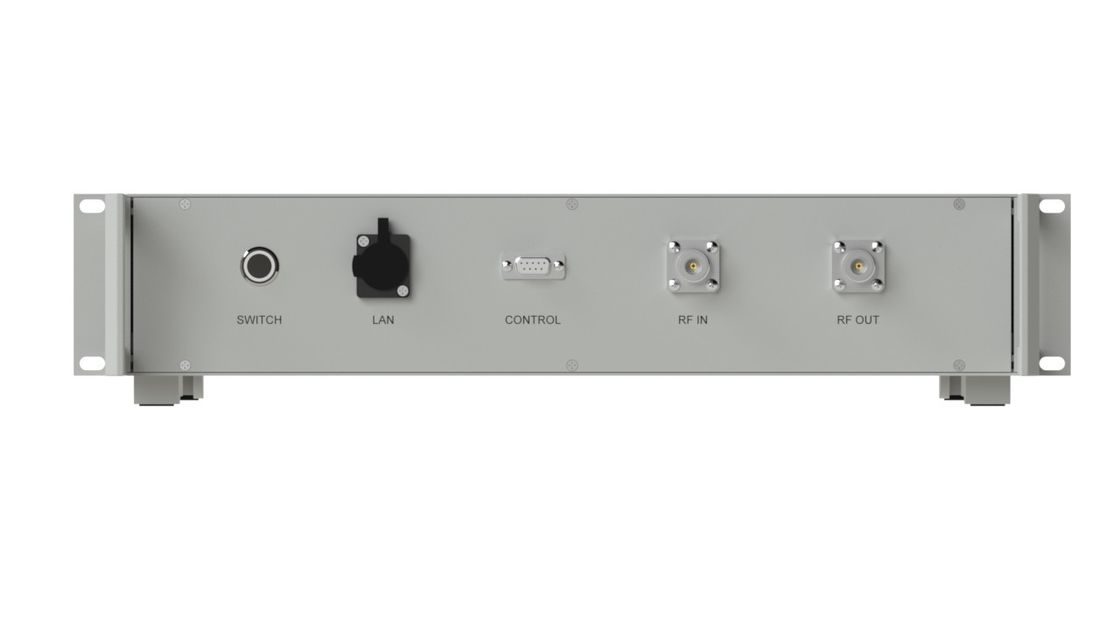

5 To 18 GHz Ku Band Power Amplifier Psat CW 45 W Wide Band Power Amplifier
  • 5 To 18 GHz Ku Band Power Amplifier Psat CW 45 W Wide Band Power Amplifier
  • 5 To 18 GHz Ku Band Power Amplifier Psat CW 45 W Wide Band Power Amplifier

5 To 18 GHz Ku Band Power Amplifier Psat CW 45 W Wide Band Power Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-500018000-40C
Product Details
Packing:
Standard Packing
Frequency Range:
5-18 GHz
Gain:
40 DB
Gain Flatness:
±2.5 DB
Output Powe (Psat):
45 Watt
VSWR:
2:1
Dimensions:
2U 19inch Rack Mount
Impedance:
50 Ohms
Highlight:

5GHz Ku Band Power Amplifier

,

Ku Band Power Amplifier 40dB

,

10W wide band power amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



Ku Band Power Amplifier 5-18 GHz Psat CW 45 W RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 5   18 GHz
Small Signal Gain 40     dB
Gain control       dB
Small Signal Gain Flatness   ±2.5   dB
Noise Figure     10 dB
Output Power (Psat CW) 45     Watt
IP3   50   dBm
Spurious Signals     -60 dBc
Harmonic   -15   dBc
VSWR   2:1   Ratio
Power waste       Ratio
Input Voltage   220   Volt
Human-computer Interface Touch screen LCD: Voltage, Current, Gain
Program Control Interfac RS422 and Ethernet



Note:

1. Forced air cooling.





ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +10 dBm
Operating Temperature -20   +50
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 2U Max Millimeter
Weight   Max gram
RF Connectors Input SMA-F
RF Connectors output N-F
Forward / Reverse Detection Connectors
Impedance 50   Ohms
