6 - 10 GHz X Band Power Amplifier Psat CW 50 W High Power RF Amplifier
  • 6 - 10 GHz X Band Power Amplifier Psat CW 50 W High Power RF Amplifier
  • 6 - 10 GHz X Band Power Amplifier Psat CW 50 W High Power RF Amplifier

6 - 10 GHz X Band Power Amplifier Psat CW 50 W High Power RF Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-600010000-50C
Product Details
Packing:
Standard Packing
Frequency Range:
6-10 GHz
Gain:
50 DB
Gain Flatness:
±2.5 DB
Output Powe (Psat):
50 Watt
VSWR:
2:1
Dimensions:
19’ 3U Rack Mount
Weight:
15000 G
High Light:

6GHz X Band Power Amplifier

,

X Band Power Amplifier 10GHz

,

100W high power rf amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



X Band Power Amplifier 6-10 GHz Psat CW 50 W RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 6   10 GHz
Gain 50     dB
Gain control       dB
Gain Flatness   ±2.5   dB
Noise Figure       dB
Output Power (Psat CW) 50     Watt
Spurious   -60   dBc
Harmonic   -15   dBc
Input VSWR     2:1 Ratio
Input Voltage   220   Volt
Human-computer Interface touch screen LCD: Voltage, Current, Gain, FWD Power
Program Control Interfac RS422 and Ethernet



Note:

1. Over Voltage Protection; Over Current Protection; Over REV VSWR Protection; Enable; Modulation.

2. Detection Function: FWD/REV Power; Coupling

3. Forced air cooling.





ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +10 dBm
Operating Temperature -10   +40
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT

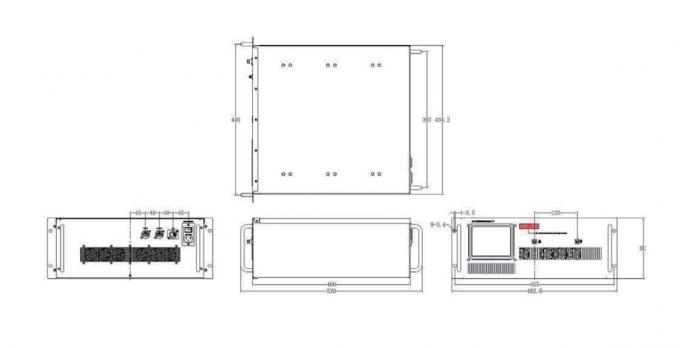

Dimensions 19’ 3U Max Millimeter
Weight 15000 Max gram
RF Connectors Input SMA-F
RF Connectors output N-F
Forward / Reverse Detection Connectors
Impedance 50   Ohms
