8 To 18 GHz Ku Band Amplifier Psat 43 W RF Pulse Amplifier
  • 8 To 18 GHz Ku Band Amplifier Psat 43 W RF Pulse Amplifier
  • 8 To 18 GHz Ku Band Amplifier Psat 43 W RF Pulse Amplifier

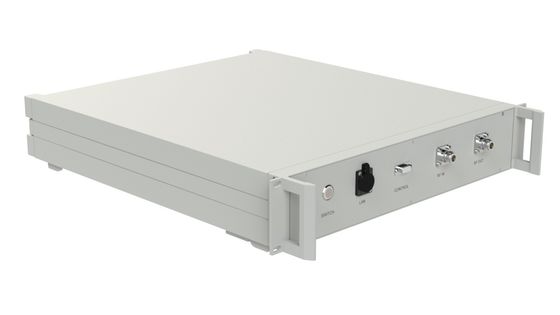

8 To 18 GHz Ku Band Amplifier Psat 43 W RF Pulse Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-800018000-43C
Product Details
Packing:
Standard Packing
Frequency Range:
8-18 GHz
Gain:
43 DB
Gain Flatness:
±2 DB
Output Power (Psat):
43 Watt
VSWR:
2:1
Dimensions:
2U 19 Inch Rack Mount
Weight:
15000g
Highlight:

43dB ku band amplifier

,

8GHz ku band amplifier 20W

,

rf pulse amplifier 43dB

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



Ku Band Power Amplifier 8-18 GHz Psat 43 W RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 8   18 GHz
Gain 43     dB
Gain control 0   43 dB
Gain Flatness   ±2   dB
Noise Figure       dB
Output Power (Psat) 43     Watt
Spurious     -60 dBc
Harmonic   -15   dBc
VSWR   2:1   Ratio
Input Voltage 220VAC
Human-computer Interface touch screen LCD:Voltage,Current,Gain
Program Control Interfac RS422 and Ethernet



Note:

1. Forced air cooling.





ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +10 dBm
Operating Temperature -20   +60
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

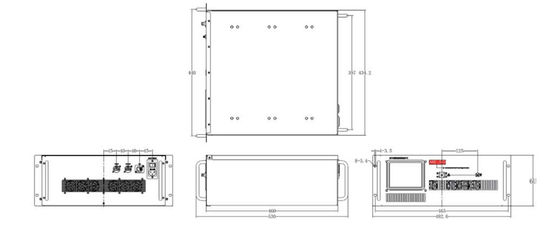

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 2U Max Millimeter
Weight 15000 Max gram
RF Connectors Input N-F
RF Connectors output N-F
Forward / Reverse Detection Connectors
Impedance 50   Ohms

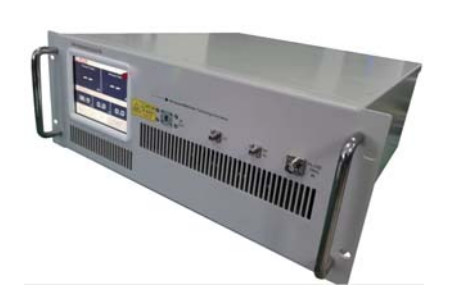

8 To 18 GHz Ku Band Amplifier Psat 43 W RF Pulse Amplifier 0










8 To 18 GHz Ku Band Amplifier Psat 43 W RF Pulse Amplifier 1



8 To 18 GHz Ku Band Amplifier Psat 43 W RF Pulse Amplifier 2
8 To 18 GHz Ku Band Amplifier Psat 43 W RF Pulse Amplifier 3
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.
In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.
In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.
8 To 18 GHz Ku Band Amplifier Psat 43 W RF Pulse Amplifier 4
8 To 18 GHz Ku Band Amplifier Psat 43 W RF Pulse Amplifier 5
Shipment:
8 To 18 GHz Ku Band Amplifier Psat 43 W RF Pulse Amplifier 6
