X Band Power Amplifier 8.5-10.5 GHz Psat 59 W RF Power Amplifier
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Frequency Range |
8.5 |
|
10.5 |
GHz |
| Gain |
55 |
|
|
dB |
| Gain control |
0 |
|
40 |
dB |
| Gain Flatness |
|
±1 |
|
dB |
| Noise Figure |
|
|
|
dB |
| Output Power (Psat) |
59 |
|
|
Watt |
| Spurious |
|
|
-60 |
dBc |
| Harmonic |
|
-15 |
|
dBc |
| VSWR |
|
2:1 |
|
Ratio |
| Input Voltage |
220VAC |
| Human-computer Interface |
touch screen LCD:Voltage,Current,Gain |
| Program Control Interfac |
RS422 and Ethernet |
Note:
1. Power consumption:2.7KW. RF Output Enable Control.
2. Forced air cooling.
3. Over Temperature Protection; Over Voltage Protection; Over Current Protection;
Power on timing protection.
| ENVIRONMENTAL RATINGS |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Max Input power |
|
|
+15 |
dBm |
| Operating Temperature |
-20 |
|
+50 |
℃ |
| Non-operating Temperature |
-40 |
|
+85 |
℃ |
| Relative humidity (non-condensing) |
|
95 |
|
% |
| Altitude (MIL-STD-810F) |
|
TBD |
|
feet |
| Shock / Vibration (MIL-STD-810F) |
|
TBD |
|
|

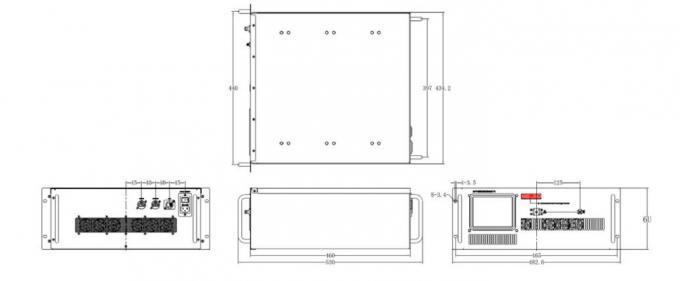

| MECHANICAL SPECIFICATIONS |
| PARAMETER |
VALUE |
LIMITS |
UNIT |
| Dimensions |
6U |
Max |
Millimeter |
| Weight |
30000 |
Max |
gram |
| RF Connectors Input |
SMA-F |
|
|
| RF Connectors output |
WR90 |
|
|
| Forward / Reverse Detection Connectors |
|
|
|
| Impedance |
|
|
Ohms |
