50 dB 9.5 To 10.5 GHz X Band Power Amplifier Psat 200 W RF Power Amplifier
  • 50 dB 9.5 To 10.5 GHz  X Band Power Amplifier Psat 200 W RF Power Amplifier
  • 50 dB 9.5 To 10.5 GHz  X Band Power Amplifier Psat 200 W RF Power Amplifier

50 dB 9.5 To 10.5 GHz X Band Power Amplifier Psat 200 W RF Power Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-950010500-50C
Product Details
Packing:
Standard Packing
Frequency Range:
9.5-10.5 GHz
Gain:
50 DB
Gain Flatness:
±2 DB
Output Power (Psat):
200 Watt
VSWR:
2:1
Dimensions:
4U Rack Mount
Weight:
25000 G
High Light:

50dB X Band Power Amplifier

,

X Band Power Amplifier 100W

,

9.5GHz solid state microwave high power amplifiers

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



X Band Power Amplifier 9.5-10.5 GHz Psat 200 W RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 9.5   10.5 GHz
Small Signal Gain 50     dB
Gain control   ±2   dB
Small Signal Gain Flatness       dB
Noise Figure       dB
Output Power (Psat) 200     Watt
Spurious     -60 dBc
Harmonic     -15 dBc
VSWR   2:1   Ratio
Input Voltage 220VAC
Human-computer Interface touch screen LCD:Voltage,Current,Gain
Program Control Interfac RS422 and Ethernet



Note:

1. Air forced cool.



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +10 dBm
Operating Temperature -20   +50
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   90   %
Altitude (MIL-STD-810F)   TBD   feet
Shock / Vibration (MIL-STD-810F)   TBD

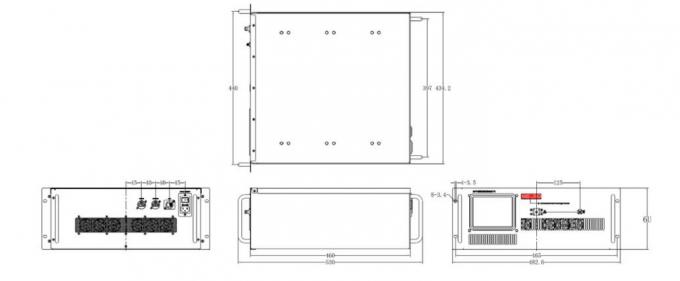

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 4U Max Millimeter
Weight 25000 Max gram
RF Connectors Input SMA-F
RF Connectors output WR90
Forward / Reverse Detection Connectors
Impedance     Ohms











50 dB 9.5 To 10.5 GHz  X Band Power Amplifier Psat 200 W RF Power Amplifier 0










50 dB 9.5 To 10.5 GHz  X Band Power Amplifier Psat 200 W RF Power Amplifier 1



50 dB 9.5 To 10.5 GHz  X Band Power Amplifier Psat 200 W RF Power Amplifier 2
50 dB 9.5 To 10.5 GHz  X Band Power Amplifier Psat 200 W RF Power Amplifier 3
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.
In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.
In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.
50 dB 9.5 To 10.5 GHz  X Band Power Amplifier Psat 200 W RF Power Amplifier 4
50 dB 9.5 To 10.5 GHz  X Band Power Amplifier Psat 200 W RF Power Amplifier 5
Shipment:
50 dB 9.5 To 10.5 GHz  X Band Power Amplifier Psat 200 W RF Power Amplifier 6
