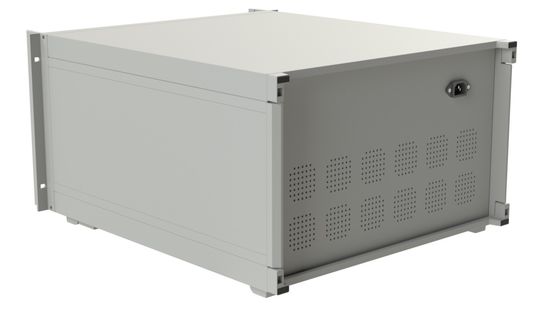

10.5-12.75 GHz Ku Band Power Amplifier Psat 500 W Linear RFPower Amplifier
  • 10.5-12.75 GHz Ku Band Power Amplifier Psat 500 W Linear RFPower Amplifier
  • 10.5-12.75 GHz Ku Band Power Amplifier Psat 500 W Linear RFPower Amplifier
  • 10.5-12.75 GHz Ku Band Power Amplifier Psat 500 W Linear RFPower Amplifier

10.5-12.75 GHz Ku Band Power Amplifier Psat 500 W Linear RFPower Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-1050012750-55C
Product Details
Packing:
Standard Packing
Frequency Range:
10.5-12.75 GHz
Gain:
55 DB
Gain Flatness:
±2.5 DB
Output Power (Psat):
500 Watt
VSWR:
2:1
Dimensions:
6U Rack Mount
Weight:
30000 G
High Light:

10.5GHz Ku Band Power Amplifier

,

12.75GHz Ku Band Power Amplifier

,

316W linear rf power amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



Ku Band Power Amplifier 10.5-12.75 GHz Psat 500 W RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 10.5   12.75 GHz
Gain 55     dB
Gain control @Step Size 0.5dB 0   30 dB
Gain Flatness   ±2.5   dB
Noise Figure       dB
Output Power (Psat) 500     Watt
Spurious     -60 dBc
Harmonic   -15   dBc
VSWR   2:1   Ratio
Input Voltage 220VAC

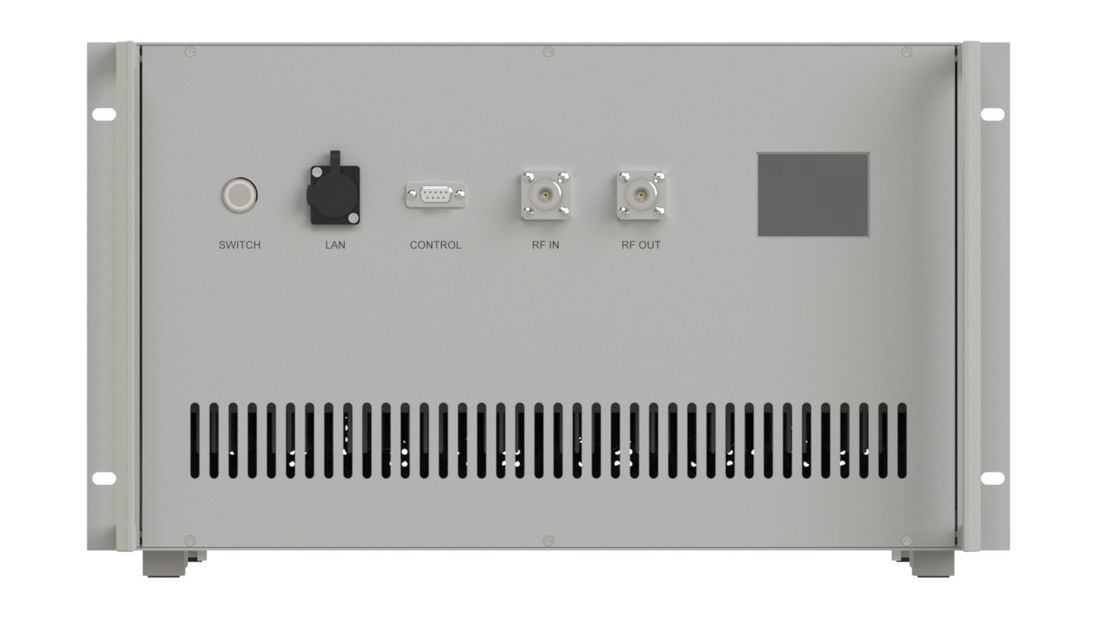

Human-computer Interface touch screen LCD:Voltage,Current,Gain
Program Control Interfac RS422 and Ethernet



Note:

1. Forced air cooling.

2. Over Temperature Protection: 80℃.

3. Over Temperature Protection; Over Voltage Protection; Over Current Protection; Power On Timing Protection.

4. RF output enable control.





ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +10 dBm
Operating Temperature -20   +50
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   90   %
Altitude (MIL-STD-810F)   /   feet
Shock / Vibration (MIL-STD-810F)   /

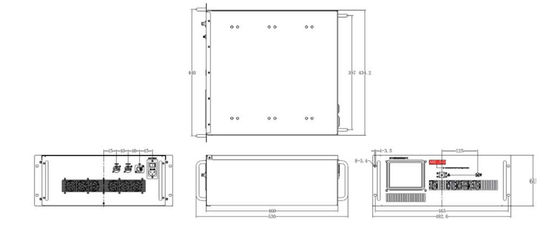

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 6U Max Millimeter
Weight 30000 Max gram
RF Connectors Input SMA-F
RF Connectors output WR75
Forward / Reverse Detection Connectors
Impedance     Ohms









10.5-12.75 GHz Ku Band Power Amplifier Psat 500 W Linear RFPower Amplifier 0










10.5-12.75 GHz Ku Band Power Amplifier Psat 500 W Linear RFPower Amplifier 1



10.5-12.75 GHz Ku Band Power Amplifier Psat 500 W Linear RFPower Amplifier 2
10.5-12.75 GHz Ku Band Power Amplifier Psat 500 W Linear RFPower Amplifier 3
