18 - 26 GHz Ka Band Power Amplifier Psat 46 W Linear RF Power Amplifier
  • 18 - 26 GHz Ka Band Power Amplifier  Psat 46 W Linear RF Power Amplifier
  • 18 - 26 GHz Ka Band Power Amplifier  Psat 46 W Linear RF Power Amplifier

18 - 26 GHz Ka Band Power Amplifier Psat 46 W Linear RF Power Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-1800026000-40C
Product Details
Packing:
Standard Packing
Frequency Range:
18-26 GHz
Gain:
40 DB
Input Voltage:
220 V
Output Power (Psat):
46 Watt
VSWR:
2:1
Dimensions:
2U 19 Inch Rack Mount
Weight:
15000 G
High Light:

18GHz Ka Band Power Amplifier

,

26GHz Ka Band Power Amplifier

,

10W linear rf power amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



Ka Band Power Amplifier 18-26 GHz Psat 46 W RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 18   26 GHz
Small Signal Gain   40   dB
Gain control Value       dB
Small Signal Gain Flatness       dB
Noise Figure       dB
Output Power (Psat) 46     Watt
Spurious       dBc
Harmonic       dBc
VSWR     2:1 Ratio
Input Voltage   220   Volt
Human-computer Interface touch screen LCD:Voltage,Current,Gain
Program Control Interfac RS422 and Ethernet



Note:

1. VSWR Protection against any output mismatch.

2. Forced air cooling.



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +20 dBm
Operating Temperature -20   +60
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   90   %
Altitude (MIL-STD-810F)   TBD   feet
Shock / Vibration (MIL-STD-810F)   TBD

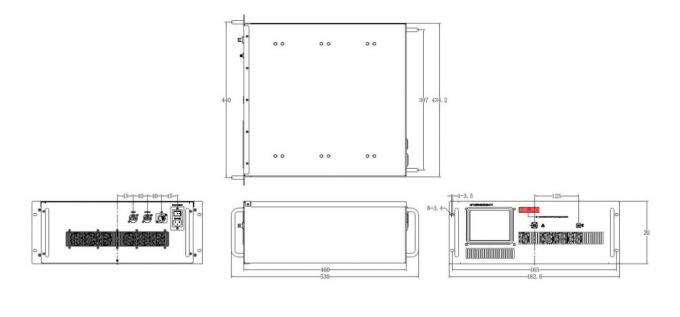

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 2U Max Millimeter
Weight 15000 Max gram
RF Connectors Input WR42
RF Connectors output WR42
Forward / Reverse Detection Connectors
Impedance     Ohms













18 - 26 GHz Ka Band Power Amplifier  Psat 46 W Linear RF Power Amplifier 0










18 - 26 GHz Ka Band Power Amplifier  Psat 46 W Linear RF Power Amplifier 1



18 - 26 GHz Ka Band Power Amplifier  Psat 46 W Linear RF Power Amplifier 2
18 - 26 GHz Ka Band Power Amplifier  Psat 46 W Linear RF Power Amplifier 3
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.
In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.
In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.
18 - 26 GHz Ka Band Power Amplifier  Psat 46 W Linear RF Power Amplifier 4
18 - 26 GHz Ka Band Power Amplifier  Psat 46 W Linear RF Power Amplifier 5
Shipment:
18 - 26 GHz Ka Band Power Amplifier  Psat 46 W Linear RF Power Amplifier 6
