18 To 26.5 GHz Ka Band Power Amplifier Psat CW 40W High Power RF Amplifier
  • 18 To 26.5 GHz  Ka Band Power Amplifier Psat CW 40W High Power RF Amplifier
  • 18 To 26.5 GHz  Ka Band Power Amplifier Psat CW 40W High Power RF Amplifier

18 To 26.5 GHz Ka Band Power Amplifier Psat CW 40W High Power RF Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-1800026500-39C
Product Details
Packing:
Standard Packing
Frequency Range:
18-26.5 GHz
Gain:
39 DB
Power Gain Flatness:
±3 DB
Output Power (Psat):
40 Watt
VSWR:
2:1
Dimensions:
3U D:500 Mm
Weight:
16000±2500 G
High Light:

Ka Band Power Amplifier 7.94W

,

26.5GHz Ka Band Power Amplifier

,

7.94W high power rf amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



Ka Band Power Amplifier 18-26.5GHz Psat CW 40W RF Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 18   26.5 GHz
Power Gain 39     dB
Gain control       dB
Power Gain Flatness   ±3   dB
Noise Figure       dB
Output Power (Psat CW) 40     Watt
Spurious -50     dBc
Harmonic -10     dBc
Input VSWR     2:1 Ratio
Output VSWR     2.5:1 Ratio
Input Voltage 180 220 240 Volt
Human-computer Interface touch screen LCD:Voltage,Current,Temperature,FWD/REV Power
Program Control Interfac TCP/IP and Ethernet



Note:

1. Input Signal:AM, FM, CW Pulse. LFM. Phase coded.

2. Over Temperature Protection; Over REV VSWR Protection; Over incentive protection.

3. Air forced cool.

4. Protection from Rain. Sand and Dust.



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power   0±6   dBm
Operating Temperature 0   +55
Non-operating Temperature -10   +70
Relative humidity (non-condensing)   90   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 3U D:500mm Max Millimeter
Weight 16000±2500 Max gram
RF Connectors Input 2.92mm-F
RF Connectors output WR42
Forward / Reverse Detection Connectors 2.92mm-F
Impedance     Ohms

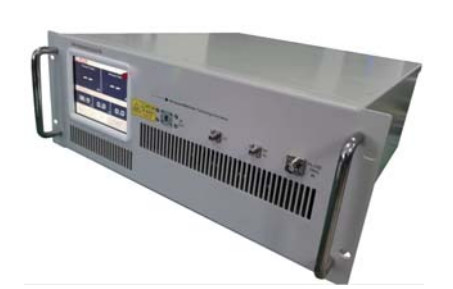

18 To 26.5 GHz  Ka Band Power Amplifier Psat CW 40W High Power RF Amplifier 0










18 To 26.5 GHz  Ka Band Power Amplifier Psat CW 40W High Power RF Amplifier 1



18 To 26.5 GHz  Ka Band Power Amplifier Psat CW 40W High Power RF Amplifier 2
18 To 26.5 GHz  Ka Band Power Amplifier Psat CW 40W High Power RF Amplifier 3
