24-32 GHz Millimeter Low Noise Amplifier Psat 38 W LNA Ultra Low Noise Amplifier
  • 24-32 GHz Millimeter Low Noise Amplifier Psat 38 W LNA Ultra Low Noise Amplifier
  • 24-32 GHz Millimeter Low Noise Amplifier Psat 38 W LNA Ultra Low Noise Amplifier

24-32 GHz Millimeter Low Noise Amplifier Psat 38 W LNA Ultra Low Noise Amplifier

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-2400032000-45C
Product Details
Packing:
Standard Packing
Frequency Range:
24-32 GHz
Gain:
45 DB
Power Gain Flatness:
±3 DB
Output Power (Psat):
38 Watt
VSWR:
2:1
Dimensions:
2U 19 Inch Rack Mount
Weight:
15000 G
High Light:

24GHz low noise amplifier

,

32GHz low noise amplifier

,

31.6W LNA ultra low noise amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



Millimeter Wave Amplifiers 24-32 GHz Psat 38 W LNA Low Noise Amplifiers



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 24   32 GHz
Small Signal Gain 45     dB
Gain control       dB
Small Signal Gain Flatness     ±3 dB
Noise Figure     10 dB
Output Power (Psat CW) 38     Watt
Spurious       dBc
Harmonic       dBc
VSWR     2:1 Ratio
Input Voltage   AC 220   Volt
Current   2   A
Human-computer Interface touch screen LCD:Voltage,Current,Gain
Program Control Interfac RS422 and Ethernet



Note:

1. Harmonics:-25dBc(Typ.).

2. Air forced cool.



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +10 dBm
Operating Temperature -20   +60
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   90   %
Altitude (MIL-STD-810F)   TBD   feet
Shock / Vibration (MIL-STD-810F)   TBD

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 2U Max Millimeter
Weight 15000 Max gram
RF Connectors Input 2.92mm-F
RF Connectors output 2.92mm-F
Forward / Reverse Detection Connectors DB15
Impedance 50   Ohms









24-32 GHz Millimeter Low Noise Amplifier Psat 38 W LNA Ultra Low Noise Amplifier 0

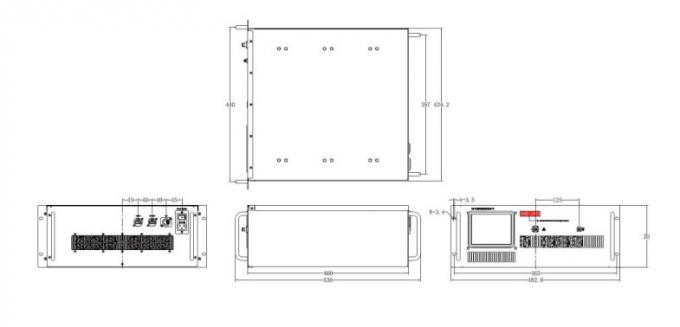

24-32 GHz Millimeter Low Noise Amplifier Psat 38 W LNA Ultra Low Noise Amplifier 1



24-32 GHz Millimeter Low Noise Amplifier Psat 38 W LNA Ultra Low Noise Amplifier 2
24-32 GHz Millimeter Low Noise Amplifier Psat 38 W LNA Ultra Low Noise Amplifier 3
