40-52 GHz Millimeter Ultra Low Noise Amplifier Psat 31 dBm LNA Low Noise Amplifiers
  • 40-52 GHz Millimeter Ultra Low Noise Amplifier Psat 31 dBm LNA Low Noise Amplifiers
  • 40-52 GHz Millimeter Ultra Low Noise Amplifier Psat 31 dBm LNA Low Noise Amplifiers

40-52 GHz Millimeter Ultra Low Noise Amplifier Psat 31 dBm LNA Low Noise Amplifiers

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-4000052000-30C
Product Details
Packing:
Standard Packing
Frequency Range:
40-52 GHz
Gain:
30 DB
Power Gain Flatness:
±2.5 DB
Output Power (Psat CW):
31 DBm
VSWR:
2:1
Dimensions:
2U 19 Inch Rack Mount
Weight:
1500 G
High Light:

40GHz ultra low noise amplifier

,

52GHz ultra low noise amplifier

,

1W rf signal amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



Millimeter Wave Amplifiers 40-52 GHz Psat 31 dBm LNA Low Noise Amplifiers



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 40   52 GHz
Small Signal Gain 30     dB
Small Signal Gain Flatness     ±2.5 dB
Gain control 10     dB
Output Power (Psat CW) 31     dBm
Spurious Signals     -60 dBc
Harmonic   -20   dBc
VSWR     2:1 Ratio
Input Voltage 220VAC
Human-computer Interface touch screen LCD:Voltage,Current,Gain
Program Control Interfac RS422 and Ethernet



Note:

1. Over temperature protection:75℃.

2. Forced air cooling.



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power       dBm
Operating Temperature -20   +50
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   90   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 2U Max Millimeter
Weight 1500 Max gram
RF Connectors Input 1.85mm-F
RF Connectors output 1.85mm-F
Impedance 50   Ohms

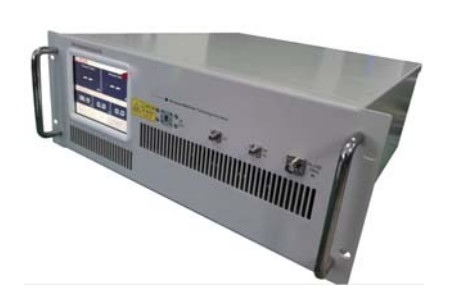

40-52 GHz Millimeter Ultra Low Noise Amplifier Psat 31 dBm LNA Low Noise Amplifiers 0












40-52 GHz Millimeter Ultra Low Noise Amplifier Psat 31 dBm LNA Low Noise Amplifiers 1



40-52 GHz Millimeter Ultra Low Noise Amplifier Psat 31 dBm LNA Low Noise Amplifiers 2
40-52 GHz Millimeter Ultra Low Noise Amplifier Psat 31 dBm LNA Low Noise Amplifiers 3
