0.1 ~0.5GHz 51dB 250W VHF RF power Amplifier for research projects requiring high-power,low-frequency RF amplification
  • 0.1 ~0.5GHz 51dB 250W VHF RF power Amplifier for research projects requiring high-power,low-frequency RF amplification
  • 0.1 ~0.5GHz 51dB 250W VHF RF power Amplifier for research projects requiring high-power,low-frequency RF amplification

0.1 ~0.5GHz 51dB 250W VHF RF power Amplifier for research projects requiring high-power,low-frequency RF amplification

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-100500-51C
Product Details
Frequency Range:
0.1-0.5 GHz
Gain:
51 DB
Power Gain Flatness:
±2 DB
Psat Power:
250 Watt
Harmonics:
15dBc
Dimensions:
360*200*100 Mm
Weight:
15 Kg
Spurious:
-60dBc
DC Power Supply:
28V
Current:
5A
Applications:
Communication Systems,Test And Measurement,radar Systems,
Packing:
Standard Packing
High Light:

0.5GHz VHF Power Amplifier

,

51dB VHF Power Amplifier

,

126W vhf rf amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

0.1 ~0.5GHz 51dB 250W VHF RF power Amplifier for research projects requiring high-power,low-frequency RF amplification



Description

The 0.1~0.5 GHz Psat 51 dBm RF Power Amplifier is a high-performance amplifier designed for a wide range of RF applications. This amplifier is ideal for communication systems, broadcasting, radar, test and measurement, and other applications requiring robust power output and excellent linearity.

Key Features:

  1. Broad Frequency Range: Operates over a frequency range from 0.1 GHz to 0.5 GHz, making it suitable for multiple applications.
  2. High Output Power: Provides a saturated output power (Psat) of 51 dBm, equivalent to 250 watts.
  3. High Gain: Delivers a gain of 51 dB, ensuring that weak input signals are amplified to high power output levels.
  4. Low Noise Figure: Ensures minimal noise introduction, maintaining high signal integrity.
  5. Robust Design: Built with durable materials and housed in a rugged enclosure to withstand harsh operating conditions.
  6. Efficient Cooling: Equipped with a cooling system to maintain optimal operating temperatures, ensuring reliable performance.
  7. Protection Features: Includes built-in protection against over-temperature, over-voltage, and over-current conditions to safeguard the amplifier.
  8. Linear Performance: Provides excellent linearity, reducing distortion and preserving the quality of the amplified signal.

Applications:

  1. Communication Systems: Enhances signal strength for various communication systems, including VHF/UHF radios.
  2. Broadcasting: Suitable for FM, VHF, and other broadcasting applications, ensuring clear and strong signal transmission.
  3. Radar Systems: Provides high-power amplification for radar transmitters, improving target detection and range.
  4. Test and Measurement: Essential for RF testing and measurement in laboratory and field environments.
  5. Scientific Research: Ideal for research projects requiring high-power, low-frequency RF amplification.

Advantages:

  • Versatility: Suitable for a wide range of frequencies and applications, offering flexibility in deployment.
  • High Reliability: Built to perform reliably in demanding conditions with robust construction and protection features.
  • Ease of Integration: Designed for easy integration into existing systems with standard RF interfaces and control options.

Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 0.1   0.5 GHz
Power Gain 51     dB
Power Gain Flatness   ±2   dB
Psat Power 250     Watt
Spurious     -60 dBc
Harmonics 15     dBc
VSWR       Ratio
DC Power Supply   +28   Volt
Current   5   A



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power       dBm
Operating Temperature -40   +80
Non-operating Temperature -55   +125
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F)   TBD   feet
Shock / Vibration (MIL-STD-810F)   TBD



MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT

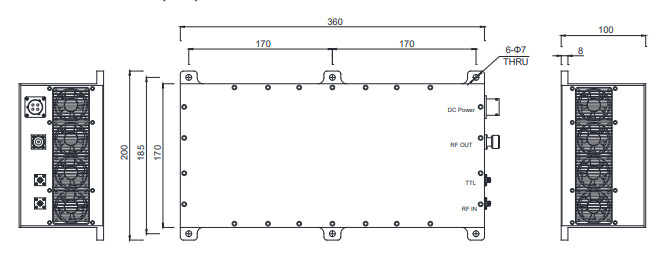

Dimensions 360*200*100 Max Millimeter
Weight 15 Max Kg
RF Connectors Input SMA-F
RF Connectors output N-F
Impedance 50   Ohms











0.1 ~0.5GHz 51dB 250W VHF RF power Amplifier for research projects requiring high-power,low-frequency RF amplification 0







0.1 ~0.5GHz 51dB 250W VHF RF power Amplifier for research projects requiring high-power,low-frequency RF amplification 1
