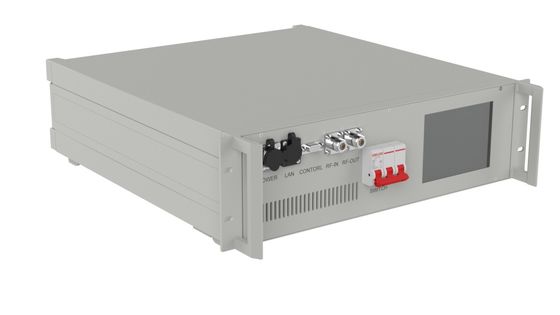

80 To 1000 MHz Wideband Power Amplifier Psat 400 W EMC Amps
  • 80 To 1000 MHz Wideband Power Amplifier Psat 400 W EMC Amps
  • 80 To 1000 MHz Wideband Power Amplifier Psat 400 W EMC Amps
  • 80 To 1000 MHz Wideband Power Amplifier Psat 400 W EMC Amps
  • 80 To 1000 MHz Wideband Power Amplifier Psat 400 W EMC Amps
  • 80 To 1000 MHz Wideband Power Amplifier Psat 400 W EMC Amps

80 To 1000 MHz Wideband Power Amplifier Psat 400 W EMC Amps

Place of Origin China
Brand Name SWT
Model Number SW-PA-00801000-56C
Product Details
Packing:
Standard Packing
Frequency Range:
80-1000 MHz
Gain:
56 DB
Power Gain Flatness:
±3.5 DB
P-1dB Output Power:
300 W
Input VSWR:
2
Dimensions:
482*600*223 Mm
Weight:
≤40 Kg
High Light:

80MHz Wideband Power Amplifier

,

1000MHz Wideband Power Amplifier

,

400W emc amps

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



EMC High Power Amplifier 80-1000 MHz Psat 400 W Wideband Power Amplifier



Description

The chassis is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Typical performance at 220V AC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 80   1000 MHz
RF INPUT   0 5 dBm
Power Gain   56   dB
P-1dB Output Power   300   W
P-sat Output Power   400   W
Power Gain Flatness   ±3.5   dB
In/Out Impedance   50   Ω
Spurious Signals     -65 dBc
Harmonic Signals   -15   dBc
Gain Adjust Range   31.5
Gain Adjust Ste   0.5
Operating Voltage 200 220 240 V AC
Supply Power     3000 W
Input VSWR     2
MECHANICAL
PARAMETER VALUE UNIT

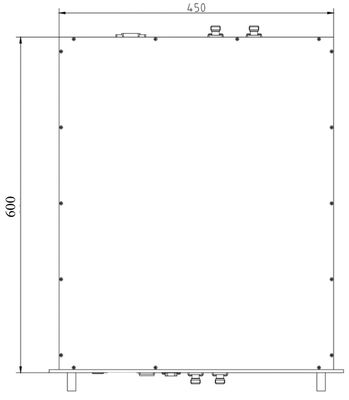

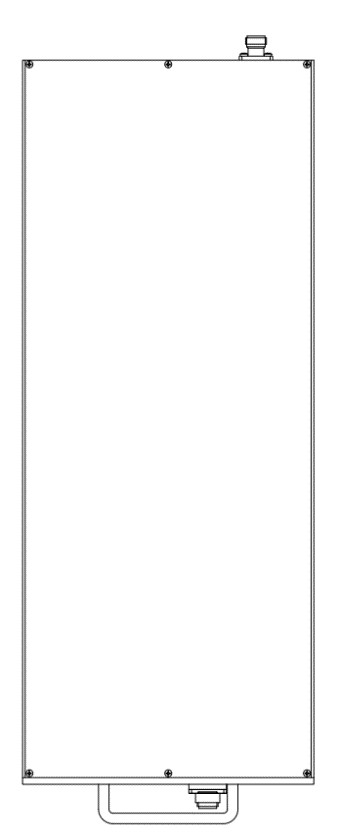

Dimensions (W x D x H) The standard 19-inch shelf is 5U high, 482*600*223 mm
RF Connectors (Input / Output) N-K / N-K (N female) --
Control Connector (Option1) DB9:Power on/power off control, gain control; Monitoring parameters include output power, temperature, supply voltage, and supply current --
Control Connector (Option2) RJ45:Remote control and monitoring can be realized through LAN
Cooling Built-in cooling system, forced air cooling --
Weight ≤40 kg
AC Connector Three-in-one air switch











ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. -25 +55 °C
Housing Temp. -45 +55 °C
Amplifier Safeguard Temp. +80 °C
Protections With over temperature protection, input over power protection, over voltage protection, over current protection, output mismatch protection

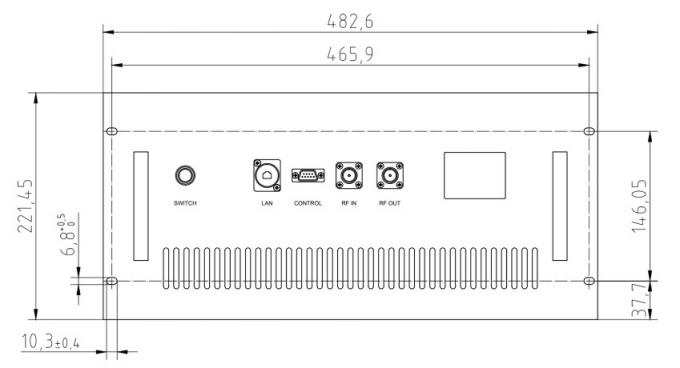

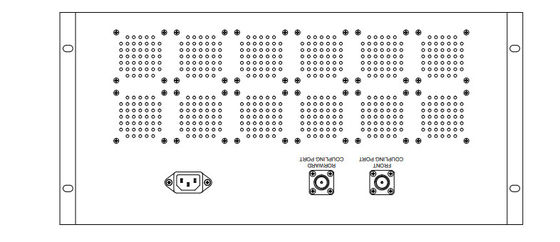

INPUT/OUTPUT panel Connector
AMPLIFIER CONNECTOR TYPE: ——
TRIAD CABLE PART NUMBER: ——
NUMBER interface type DESCRIPTION
X1 N-FK RF IN
X2 N-FK RF OUT
X3 LCD display Human-computer interaction interface
X4 Three-in-one air switch AC/220V/50Hz
X5 RJ45 LAN
X6 DB9 Control interface
X7 N-FK Forward coupling port
X8 N-FK Reverse coupling port





Connector Definition
AMPLIFIER CONNECTOR TYPE: DB9
TRIAD CABLE PART NUMBER: ——
NUMBER Definition DESCRIPTION
1 PA Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
2 Output Power monitoring Output Power Detection (TTL Hi= Normal , TTL Lo =Fault )
3 Temp monitoring Temp monitoring alarm (TTL Hi= Normal , TTL Lo =Fault )
4 Voltage monitoring Voltage monitoring alarm (TTL Hi= Normal , TTL Lo =Fault )
5 Current monitoring Current monitoring alarm (TTL Hi= Normal , TTL Lo =Fault )
6 RXD RS232 serial bus interface, PA gain adjustment
7 TXD
8 GND
9 NC NC
