High Efficiency 0.5-1 GHz Psat 100W RF Power Amplifier in research institutions for various RF and microwave experiment
  • High Efficiency 0.5-1 GHz Psat 100W RF Power Amplifier in research institutions for various RF and microwave experiment
  • High Efficiency 0.5-1 GHz Psat 100W RF Power Amplifier in research institutions for various RF and microwave experiment

High Efficiency 0.5-1 GHz Psat 100W RF Power Amplifier in research institutions for various RF and microwave experiment

Place of Origin China
Brand Name SWT
Model Number SW-PA-5001000-47C
Product Details
Frequency Range:
0.5-1 GHz
Gain:
47 DB
Power Gain Flatness:
2 DB
Psat Power:
100 W
Harmonics:
15 DBc
Spurious:
-60dBc
Weight:
15 Kg
DC Power Supply:
28V
Current:
16A
Applications:
Telecommunications,Broadcasting,Military,Commercial
Packing:
Standard Packing
Dimensions:
360*200*100 Mm
High Light:

0.5GHz vhf uhf linear amplifier

,

1GHz vhf uhf linear amplifier

,

50W high power rf amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

High Efficiency 0.5-1 GHz Psat 100W RF Power Amplifier in research institutions for various RF and microwave experiment



Description

This RF power amplifier operates within the frequency range of 0.5 to 1 GHz, delivering a saturated output power (Psat) of 100 W. Here is a detailed introduction:

Key Features:

  1. Frequency Range: 0.5 to 1 GHz
  2. Saturated Output Power: 100 W (50 dBm)
  3. High Efficiency: Engineered to provide maximum power efficiency, ensuring effective power usage.
  4. Linearity: Maintains high linearity for minimal signal distortion during amplification.
  5. Robust Construction: Designed to endure harsh operating conditions, suitable for both commercial and military applications.
  6. Cooling System: Equipped with an advanced cooling mechanism to maintain optimal operating temperatures and ensure long-term reliability.
  7. Compact Form Factor: Designed for easy integration into existing systems, with a focus on saving space without compromising performance.

Applications:

  1. Telecommunications: Ideal for enhancing signals in cellular base stations and wireless communication systems.
  2. Broadcasting: Suitable for use in TV and radio broadcast transmitters.
  3. Military: Useful in military communication systems, radar, and electronic warfare.
  4. Industrial: Applicable in industrial RF applications for process monitoring, testing, and measurement.
  5. Scientific Research: Useful in research institutions for various RF and microwave experiments.

Technical Specifications:

  • Input Power: Typically accepts standard input power levels, making it compatible with most RF signal sources.
  • Gain: Provides substantial gain to amplify weak signals effectively.
  • Impedance: Standard 50-ohm input and output impedance for compatibility with a wide range of RF equipment.
  • Noise Figure: Low noise figure to ensure minimal signal degradation and high-quality output.
  • VSWR (Voltage Standing Wave Ratio): Optimized to reduce signal reflections and enhance power transfer efficiency.
  • Power Supply: Typically requires a DC power supply, with specific voltage and current requirements.

Summary:

The 0.5-1 GHz Psat 100 W RF Power Amplifier is a versatile and high-performance component designed to meet a wide range of RF amplification needs. Its robust design, high efficiency, and reliable performance make it an essential tool in telecommunications, broadcasting, military, industrial, and scientific applications. This amplifier ensures enhanced signal strength and quality across its operational bandwidth, providing a reliable solution for high-power RF amplification requirements.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 0.5   1 GHz
Power Gain 47 52   dB
Power Gain Flatness   ±2   dB
Psat Power 100     Watt
Spurious     -60 dBc
Harmonics 15     dBc
VSWR       Ratio
DC Power Supply   +28   Volt
Current   16   A



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power       dBm
Operating Temperature -40   +80
Non-operating Temperature -55   +125
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F)   TBD   feet
Shock / Vibration (MIL-STD-810F)   TBD

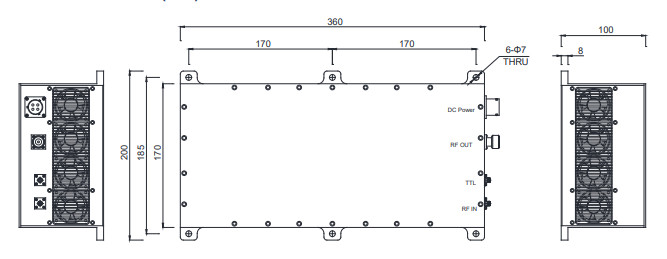

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 360*200*100 Max Millimeter
Weight 15 Max Kg
RF Connectors Input SMA-F
RF Connectors output N-F
Impedance 50   Ohms
