S Band Power Amplifier 0.7-4 GHz P1dB 27 dBm RF Power Amplifier
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Frequency Range |
0.7 |
|
4 |
GHz |
| Gain |
30 |
|
|
dB |
| Gain Flatness |
|
±2.5 |
|
dB |
| Noise Figure |
|
|
10 |
dB |
| Output Power@P1dB |
27 |
|
|
dBm |
| Output Third Order Intercept Point |
35 |
|
|
dBm |
| Spurious |
|
|
|
dBc |
| Harmonics |
|
|
|
dBc |
| Input VSWR |
|
|
2.5:1 |
Ratio |
| Output VSWR |
|
|
2.5:1 |
Ratio |
| Power Supply |
|
15 |
|
Volt |
| Current |
|
|
1 |
A |
| ENVIRONMENTAL RATINGS |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Max Input power |
|
|
|
dBm |
| Operating Temperature |
0 |
|
+65 |
℃ |
| Non-operating Temperature |
-40 |
|
+70 |
℃ |
| Relative humidity (non-condensing) |
|
95 |
|
% |
| Altitude (MIL-STD-810F) |
10000 |
|
30000 |
feet |
| Shock / Vibration (MIL-STD-810F) |
|
Airbone |
|
|
| MECHANICAL SPECIFICATIONS |
| PARAMETER |
VALUE |
LIMITS |
UNIT |

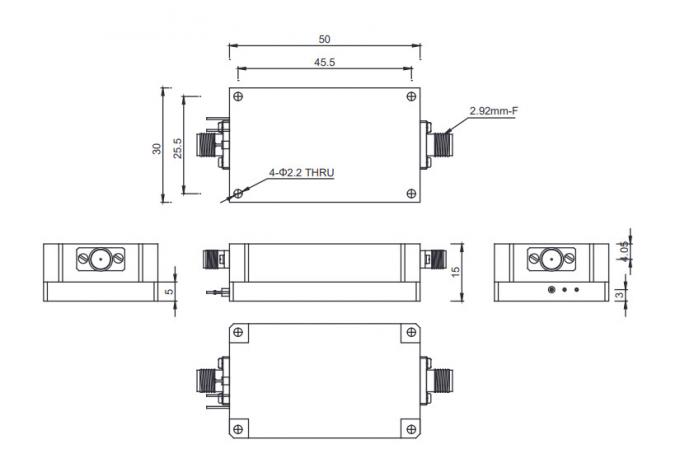

| Dimensions |
50*30*15 |
Max |
Millimeter |
| Weight |
120 |
Max |
g |
| RF Connectors Input |
SMA-F |
|
|
| RF Connectors output |
SMA-F |
|
|
| Impedance |
50 |
|
Ohms |
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.
In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.
In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.
Shipment:
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample ususally take within 3 working days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item.
Q4. How to proceed an order?
A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link.
Q5. After paid, what info of the supplier provided?
A: Tracking number
Q6: Do you offer guarantee and after-service for the products?
A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate
