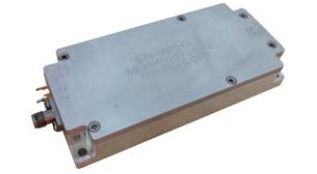

Psat 40dBm 1-2 GHz RF Power Amplifier for military communication systems
  • Psat 40dBm 1-2 GHz RF Power Amplifier for military communication systems
  • Psat 40dBm 1-2 GHz RF Power Amplifier for military communication systems
Psat 40dBm 1-2 GHz RF Power Amplifier for military communication systems

Psat 40dBm 1-2 GHz RF Power Amplifier for military communication systems

Place of Origin China
Brand Name SWT
Model Number SW-PA-10002000-34C
Product Details
Frequency Range:
1-2 GHz
Gain:
34 DB
Gain Flatness:
±1.5 DB
Past Power:
40 DBm
DC Power Supply:
12V
Spurious Signals:
-55dBc
Harmonics @2Watt:
-60dBc
Input Return Loss:
-10Ratio
Current:
1.8A
Applications:
Telecommunications,Broadcasting,Military,Commercial
Dimensions:
120*60*25 Mm
Operating Temperature:
-40~60℃
Packing:
Standard Packing
Weight:
0.5 Kg
High Light:

40dBm L Band Power Amplifier

,

L Band Power Amplifier 2.5W

,

rf power amplifier CE

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

Psat 40dBm 1-2 GHz RF Power Amplifier for military communication systems



Description

Applications:

  1. Telecommunications: Improves signal strength in cellular base stations and wireless communication systems.
  2. Broadcasting: Suitable for TV and radio broadcast receivers.
  3. Military: Ideal for military communication systems, electronic warfare, and radar systems.
  4. Industrial: Useful in RF testing, measurement, and monitoring systems.
  5. Scientific Research: Beneficial in research applications that require precise low noise amplification.

Technical Specifications:

  • Input Power: Compatible with standard RF signal sources, typically within the same impedance range.
  • Gain: High gain across the narrow bandwidth ensures effective signal amplification.
  • Noise Figure: Low noise figure typically around 1 dB to 2 dB, depending on the specific design.
  • VSWR (Voltage Standing Wave Ratio): Optimized to minimize signal reflections and ensure efficient power transfer.
  • Power Supply: Requires a DC power supply, with specific voltage and current requirements based on the design.

Summary:

The Psat 40dBm Narrow Band LNA 1-2 GHz Low Noise Power Amplifier is a high-performance amplifier designed for a variety of applications. Its low noise figure and high gain make it a critical component in telecommunications, broadcasting, military, industrial, and scientific applications. This amplifier ensures high-quality signal amplification over a narrow frequency range, providing reliable and efficient performance in various RF systems.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.



ELECTRICAL SPECIFICATIONS@25℃
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 1   2 GHz
Power Gain @1dB Compression   34   dB
Small Signal Gain Flatness     ±1.5 dB
RF Output Power @1dB 2   3 Watt
Noise Figure       dB
Psat Power 40     dBm
Spurious Signals   -55   dBc
Harmonics @2Watt   -60 -50 dBc
Siwth On/Off@10-90% Time @Rated Power     1 us
Input Return Loss     -10 Ratio
DC Power Supply   +12   Volt
Current   1.8   A



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +10 dBm
Operating Temperature -20   +60 ℃
Non-operating Temperature -40   +65 ℃
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

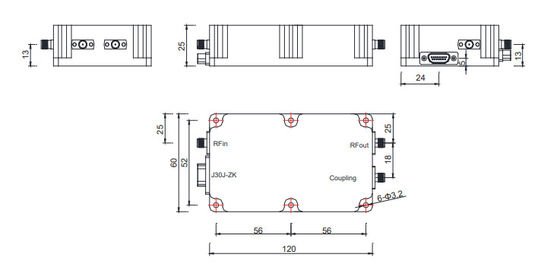

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 120*60*25 Max Millimeter
Weight 0.5 Max Kg
RF Connectors Input SMA-F
RF Connectors output SMA-F
DC Interface Connectors DB-9S
Impedance 50   Ohms
