1-2 GHz L Band Optical Amplifier communication Module Psat 40dBm 10w RF power amplifier for Military and Defense
  • 1-2 GHz L Band Optical Amplifier communication Module Psat 40dBm 10w RF power amplifier for Military and Defense
  • 1-2 GHz L Band Optical Amplifier communication Module Psat 40dBm 10w RF power amplifier for Military and Defense

1-2 GHz L Band Optical Amplifier communication Module Psat 40dBm 10w RF power amplifier for Military and Defense

Place of Origin China
Brand Name SWT
Model Number SW-PA-10002000-40C
Product Details
Frequency Range:
1-2 GHz
Gain:
40 DB
Gain Flatness:
±2 DB
Output Power (Psat):
40 DBm
VSWR:
2:1
DC Power Supply:
28V
Current:
2A
Spurious Signals:
-60dBc
Harmonics (two Times):
-15dBc
Operating Temperature:
-20~50℃
Applications:
Wireless Communications, Radar Systems, Satellite Communications, Broadcasting, Military And Defense
Packing:
Standard Packing
Weight:
0.5 Kg
Dimensions:
100*80*15 Mm
High Light:

0.5kg l band optical amplifier

,

10W l band optical amplifier

,

rf power module 40dB

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

1-2 GHz L Band Optical Amplifier communication Module Psat 40dBm 10w RF power amplifier for Military and Defense



Description

The 1-2 GHz L Band Psat 40dBm 10W RF Power Amplifier is a robust and efficient amplifier designed to deliver high power and excellent performance within the L-band frequency range. Below are the detailed features and potential applications for this power amplifier:

Key Features:

  1. Frequency Range:

    Operates within the 1 GHz to 2 GHz frequency range, suitable for various L-band applications.
  2. Output Power:

    Capable of delivering a saturated output power (Psat) of 40 dBm, which equates to 10 watts, ensuring substantial signal amplification.
  3. High Gain:

    Provides high gain to amplify weak signals effectively, making it ideal for both transmission and reception applications.
  4. Efficiency and Linearity:

    Designed to maintain high efficiency and linearity, which is essential for consistent and reliable performance in demanding applications.
  5. Compact Design:

    The amplifier is housed in a compact and durable module, making it easy to integrate into various systems while ensuring longevity and stability.
  6. Thermal Management:

    Equipped with advanced thermal management features to ensure reliable operation even under high-power conditions.

Applications:

  1. Wireless Communication Systems:

    Suitable for enhancing the performance of wireless communication systems, including cellular networks, satellite communications, and broadband wireless access.
  2. Test and Measurement Equipment:

    Ideal for use in RF testing and measurement equipment, providing stable and accurate amplification for various testing needs.
  3. Military and Defense:

    Used in military and defense applications such as radar systems, electronic warfare, and secure communication links, where reliable and high-power signal amplification is crucial.
  4. Industrial Applications:

    Can be applied in industrial RF systems for signal processing and transmission, ensuring robust performance in challenging environments.
  5. Broadcasting:

    Supports broadcasting applications by providing the necessary power amplification for TV and radio transmission to cover wide areas effectively.

Summary:

The 1-2 GHz L Band Psat 40dBm 10W RF Power Amplifier is an essential component for a wide range of RF applications. Its high power output, efficiency, and reliability make it suitable for use in communication systems, testing equipment, military applications, industrial systems, and broadcasting. This amplifier ensures strong and consistent signal amplification, making it a valuable asset for any application requiring high-power RF performance.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.



ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 1   2 GHz
Small Signal Gain 40     dB
Small Signal Gain Flatness   ±2   dB
Output Power (Psat) 40   3 dBm
Noise Figure       dB
Spurious Signals     -60 dBc
Harmonics (two times)   -15   dBc
Harmonics (three times)   -25   dBc
VSWR   2:1   Ratio
DC Power Supply   +28   Volt
Current   2   A
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +10 dBm
Operating Temperature -20   +50
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone
MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT

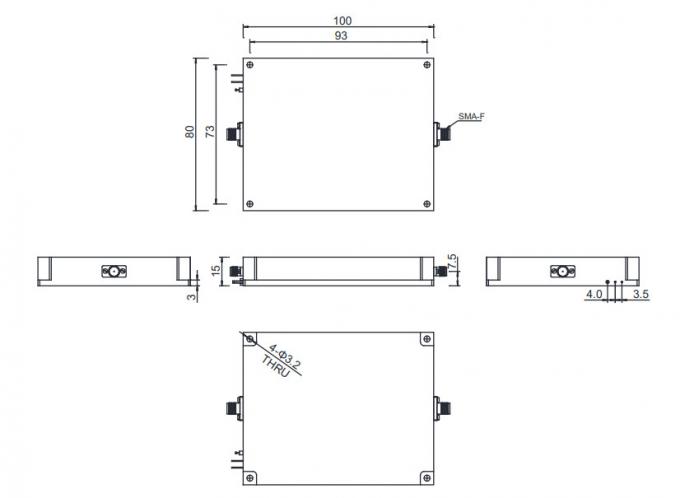

Dimensions 100*80*15 Max Millimeter
Weight 0.5 Max Kg
RF Connectors Input SMA-F
RF Connectors output SMA-F
DC Interface Connectors
Impedance 50   Ohms
