1 - 6 GHz Wideband Power Amplifier 40 dBm Power Amplifier Testing
  • 1 - 6 GHz Wideband Power Amplifier 40 dBm Power Amplifier Testing
  • 1 - 6 GHz Wideband Power Amplifier 40 dBm Power Amplifier Testing

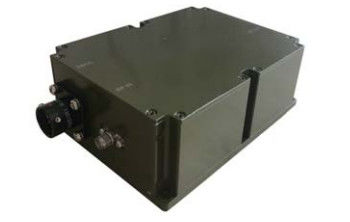

1 - 6 GHz Wideband Power Amplifier 40 dBm Power Amplifier Testing

Place of Origin China
Brand Name SWT
Model Number SW-PA-10006000-35C
Product Details
Packing:
Standard Packing
Frequency Range:
1-6 GHz
Gain:
35 DB
Power Gain Flatness:
±3 DB
Output Power:
40 DBm
Spurious:
-60 DBc
Dimensions:
150*120*30 Mm
Weight:
2 Kg
High Light:

6GHz Wideband Power Amplifier

,

Wideband Power Amplifier 35dB

,

3.16W power amplifier testing

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



EMC High Power Amplifier 1-6 GHz 40 dBm Wideband Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.



ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 1   2 GHz
Power Gain 35     dB
Power Gain Flatness   ±3   dB
Output Power 40     dBm
Noise Figure       dB
Spurious   -60   dBc
Harmonics   -10   dBc
VSWR       Ratio
Power Supply   +28   Volt
Current   2   A
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     +5 dBm
Operating Temperature 0   +40
Non-operating Temperature -40   +70
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone
MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 150*120*30 Max Millimeter
Weight 2 Max Kg
RF Connectors Input SMA-F
RF Connectors output SMA-F
DC Interface Connectors
Impedance 50   Ohms



1 - 6 GHz Wideband Power Amplifier 40 dBm Power Amplifier Testing 0












1 - 6 GHz Wideband Power Amplifier 40 dBm Power Amplifier Testing 1











1 - 6 GHz Wideband Power Amplifier 40 dBm Power Amplifier Testing 2
1 - 6 GHz Wideband Power Amplifier 40 dBm Power Amplifier Testing 3
