2-3 GHz Narrow Band LNA Psat 100 dBm Low Noise RF Amplifier for Radar,Satellite Communication
Description
The 2-3 GHz S Band Power Amplifier with 100 dBm output is an RF amplifier module designed for high-power amplification in the 2 to 3 GHz frequency range. Key features include:
- Frequency Range: 2 GHz to 3 GHz, covering the S Band, ideal for communication, radar, and other RF applications in this frequency range.
- High Power Output: Capable of delivering up to 100 dBm of output power, providing strong amplification for long-range or high-performance systems.
- High Linearity: Designed to maintain signal integrity with minimal distortion, making it suitable for high-quality applications.
Applications:
This power amplifier is widely used in:
- Radar Systems: For military, weather, and aviation radar applications, where high power and range are crucial.
- Telecommunications: In base stations, satellite communication, and wireless communication systems that require strong signal transmission.
- Satellite and Space Communication: Amplifying signals for satellite uplinks and downlinks with high power.
- Broadcasting: In high-power broadcasting systems to transmit signals over large areas.
- Test Equipment: Used in RF testing to simulate real-world high-power conditions or for signal generation in lab setups.
The 2-3 GHz S Band Power Amplifier is suitable for any application requiring high output power, extended range, and high-performance signal amplification in the S Band frequency range.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Frequency Range |
2 |
|
3 |
GHz |
| Power Gain |
47 |
52 |
|
dB |
| Power Gain Flatness |
|
±2 |
|
dB |
| Psat Power |
100 |
|
|
dBm |
| Noise Figure |
|
|
|
dBm |
| IP3 |
|
|
|
dBm |
| Spurious |
|
|
-60 |
dBc |
| Harmonics |
15 |
|
|
dBc |
| VSWR |
|
|
|
Ratio |
| DC Power Supply |
|
+28 |
|
Volt |
| Current |
|
16 |
|
A |
| ENVIRONMENTAL RATINGS |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Max Input power |
|
|
|
dBm |
| Operating Temperature |
-40 |
|
+80 |
℃ |
| Non-operating Temperature |
-55 |
|
+125 |
℃ |
| Relative humidity (non-condensing) |
|
95 |
|
% |
| Altitude (MIL-STD-810F) |
|
TBD |
|
feet |
| Shock / Vibration (MIL-STD-810F) |
|
TBD |
|
|
| MECHANICAL SPECIFICATIONS |
| PARAMETER |
VALUE |
LIMITS |
UNIT |

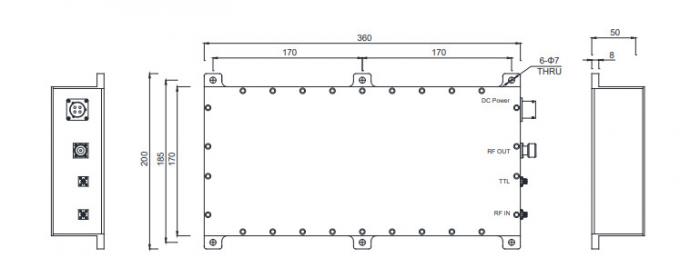

| Dimensions |
360*200*50 |
Max |
Millimeter |
| Weight |
10 |
Max |
Kg |
| RF Connectors Input |
SMA-F |
|
|
| RF Connectors output |
N-F |
|
|
| DC Interface Connectors |
|
|
|
| Impedance |
50 |
|
Ohms |
