1-10 GHz EMC High Power Amplifier Psat 8 dBm Wideband Low Noise Amplifier
  • 1-10 GHz EMC High Power Amplifier  Psat 8 dBm Wideband Low Noise Amplifier
  • 1-10 GHz EMC High Power Amplifier  Psat 8 dBm Wideband Low Noise Amplifier

1-10 GHz EMC High Power Amplifier Psat 8 dBm Wideband Low Noise Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-100010000-30C
Product Details
Packing:
Standard Packing
Frequency Range:
1-10 GHz
Gain:
30 DB
Noise Figure:
2 DBm
Output Power (Psat):
-8 DBm
VSWR:
2:1
Dimensions:
50*30*15 Mm
Weight:
200 G
High Light:

10GHz emc high power amplifier

,

emc high power amplifier 1W

,

1W wideband low noise amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

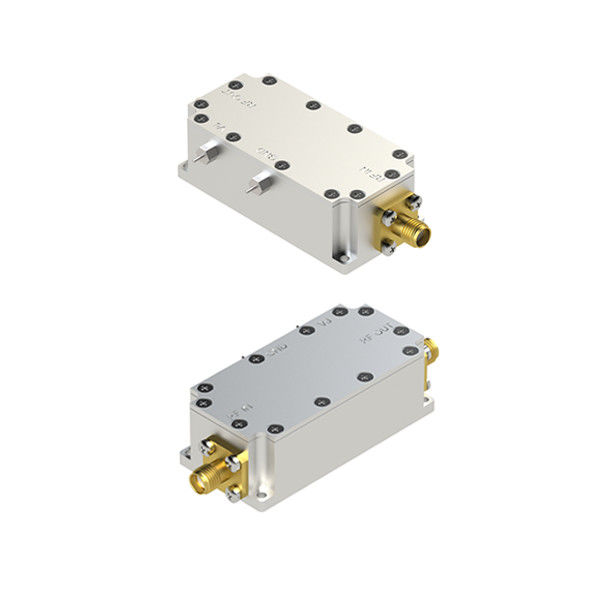

EMC High Power Amplifier 1-10 GHz Psat 8 dBm Wideband Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 1   10 GHz
Gain 30     dB
Gain Flatness       dB
Output Power (Psat) +8     dBm
Noise Figure     2 dBm
IP3       dBm
Spurious     -60 dBc
Harmonics   -15   dBc
VSWR   2:1   Ratio
Power Supply   +8   Volt
Current       A
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power     -10 dBm
Operating Temperature -20   +60
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F)   /   feet
Shock / Vibration (MIL-STD-810F)   /
MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 50*30*15 Max Millimeter
Weight 200 Max g
RF Connectors Input 2.92mm-F
RF Connectors output 2.92mm-F
DC Interface Connectors
Impedance 50   Ohms








1-10 GHz EMC High Power Amplifier  Psat 8 dBm Wideband Low Noise Amplifier 0












1-10 GHz EMC High Power Amplifier  Psat 8 dBm Wideband Low Noise Amplifier 1











1-10 GHz EMC High Power Amplifier  Psat 8 dBm Wideband Low Noise Amplifier 2
1-10 GHz EMC High Power Amplifier  Psat 8 dBm Wideband Low Noise Amplifier 3
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.
In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.
In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.
1-10 GHz EMC High Power Amplifier  Psat 8 dBm Wideband Low Noise Amplifier 4
1-10 GHz EMC High Power Amplifier  Psat 8 dBm Wideband Low Noise Amplifier 5
Shipment:
1-10 GHz EMC High Power Amplifier  Psat 8 dBm Wideband Low Noise Amplifier 6
