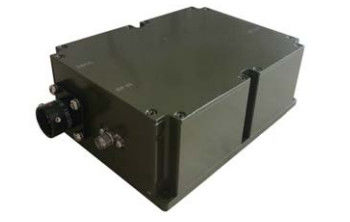

2-12 GHz High Power Amplifier EMC P1dB 33 dBm Wideband RF Amplifier
  • 2-12 GHz High Power Amplifier EMC P1dB 33 dBm Wideband RF Amplifier
  • 2-12 GHz High Power Amplifier EMC P1dB 33 dBm Wideband RF Amplifier

2-12 GHz High Power Amplifier EMC P1dB 33 dBm Wideband RF Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-200012000-35C
Product Details
Packing:
Standard Packing
Frequency Range:
2-12 GHz
Gain:
35 DB
Current:
0.6 A
Output Power @P1dB:
33 DBm
VSWR:
2:1
Dimensions:
150*80*60 Mm
Weight:
2.5 Kg
High Light:

2GHz emc amps

,

12GHz emc amps

,

3.16W wideband rf amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description



EMC High Power Amplifier 2-12 GHz  P1dB 33 dBm Wideband Power Amplifier



Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.



ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 2   12 GHz
Power Gain 35     dB
Gain Flatness       dB
Output Power @P1dB 33     dBm
Noise Figure       dBm
IP3       dBm
Spurious       dBc
Harmonics       dBc
VSWR     2:1 Ratio
DC Power Supply   15   Volt
Current   0.6   A
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power       dBm
Operating Temperature -40   +55
Non-operating Temperature -55   +85
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F)   TBD   feet
Shock / Vibration (MIL-STD-810F)   TBD

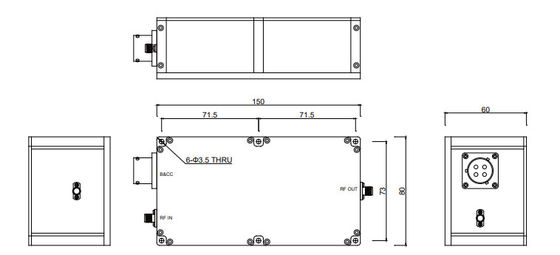

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 150*80*60 Max Millimeter
Weight 2.5 Max Kg
RF Connectors Input 2.92mm-F
RF Connectors output 2.92mm-F
DC Interface Connectors
Impedance 50   Ohms







2-12 GHz High Power Amplifier EMC P1dB 33 dBm Wideband RF Amplifier 0












2-12 GHz High Power Amplifier EMC P1dB 33 dBm Wideband RF Amplifier 1











2-12 GHz High Power Amplifier EMC P1dB 33 dBm Wideband RF Amplifier 2
2-12 GHz High Power Amplifier EMC P1dB 33 dBm Wideband RF Amplifier 3
