4-12 GHz 100W CW High Frequency RF Power Amplifier for electronic warfare, and other specialized RF System
  • 4-12 GHz 100W CW High Frequency RF Power Amplifier for electronic warfare, and other specialized RF System
  • 4-12 GHz 100W CW High Frequency RF Power Amplifier for electronic warfare, and other specialized RF System

4-12 GHz 100W CW High Frequency RF Power Amplifier for electronic warfare, and other specialized RF System

Place of Origin China
Brand Name SWT
Model Number SW-PA-400012000-50C
Product Details
Frequency Range:
4-12 GHz
Gain:
50 DB
Gain Flatness:
±2.5 DB
Output Power(CW):
100 Watt
VSWR(I/O):
2:1
Dimensions:
470*410*180 Mm
Weight:
15 Kg
Spurious:
-60dBc
Harmonics:
-15dBc
Power Supply:
28V
Operating Temperature:
-20~50℃
Packing:
Standard Packing
RF Connectors Input:
SMA-F
Applications:
Radar Systems, Microwave Communication,electronic Warfare, And Other Specialized RF Systems
High Light:

4GHz High Power RF Amplifier

,

12GHz High Power RF Amplifier

,

100W high frequency rf amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

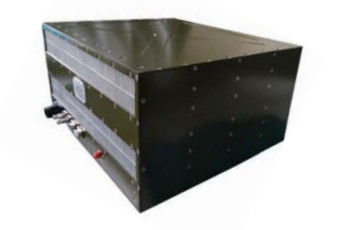

4-12 GHz 100W CW High Frequency RF Power Amplifier for electronic warfare, and other specialized RF System



Description

This specific introduction pertains to a 100W continuous wave (CW) high-frequency RF power amplifier operating in the 4-12 GHz frequency range. Here is a detailed description:

  1. Frequency Range: This amplifier operates within the 4-12 GHz frequency range, making it suitable for high-frequency RF applications that require signal amplification within this specific band.

  2. Power Output: It provides a continuous wave (CW) power output of 100W, indicating its capability to deliver a consistent and reliable power level for RF signals.

  3. High-Frequency Performance: Designed for high-frequency applications, ensuring low loss and high fidelity in signal amplification within the specified frequency range.

  4. Applications: Suitable for various high-frequency RF applications, including radar systems, microwave communication, electronic warfare, and other specialized RF systems.

  5. Stability and Reliability: Built with stability and reliability in mind, suitable for continuous operation in demanding environments.

Overall, this 4-12 GHz 100W CW high-frequency RF power amplifier is designed to provide consistent, high-power output and reliable signal amplification for a range of high-frequency RF applications.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.



ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 4   12 GHz
Gain 50     dB
Gain Flatness   ±2.5   dB
Noise Figure       dB
Output Power (CW) 100     Watt
Spurious     -60 dBc
Harmonics   -15   dBc
VSWR(I/O)   2:1   Ratio
Power Supply   +28 +32 Volt
Current   2.5   A



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power   +10   dBm
Operating Temperature -20   +50
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F)   TBD   feet
Shock / Vibration (MIL-STD-810F)   TBD



MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT

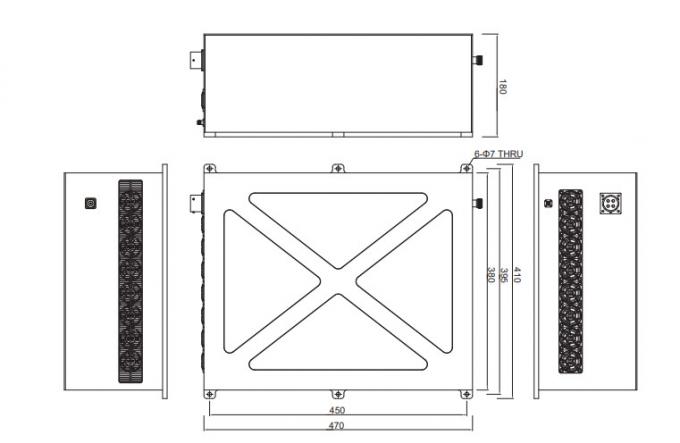

Dimensions 470*410*180 Max Millimeter
Weight 15 Max Kg
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50   Ohms
