6 -10 GHz High Power Amplifier Psat 50w Microwave Amplifier for communication systems
Description
This high-power microwave amplifier operates in the frequency range of 6 to 10 GHz with a Psat (saturated output power) of 50 watts. It is designed specifically for high-power output microwave applications within this particular frequency band.
Key features of this amplifier include:
-
Frequency Range: Operates in the 6-10 GHz frequency range, suitable for microwave applications that require signal amplification within this specific frequency band.
-
Psat 50 W: Offers a Psat of 50 watts, indicating its capability to deliver high-power output while maintaining signal quality.
-
High Power: Designed for high-power output applications, suitable for scenarios requiring handling of high-power signals.
-
Microwave Signal Amplification: Specifically designed for amplifying microwave signals within the specified frequency range, providing high-power output and excellent signal amplification performance.
-
Applications: Suitable for various applications requiring high-power microwave signal amplification, such as radar systems, microwave links, and communication systems.
In summary, this 6-10 GHz Psat 50 W high-power microwave amplifier is designed to provide high-power output and excellent signal amplification performance within the specified frequency band for microwave applications.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Frequency Range |
6 |
|
10 |
GHz |
| Gain |
50 |
|
|
dB |
| Gain Flatness |
|
±2.5 |
|
dB |
| Noise Figure |
|
|
|
dB |
| Output Power (Psat) |
50 |
|
|
Watt |
| Spurious |
|
-60 |
|
dBc |
| Harmonics |
|
-15 |
|
dBc |
| VSWR |
|
|
2:1 |
Ratio |
| Power Supply |
|
+28 |
|
Volt |
| Current |
|
7 |
|
A |
| ENVIRONMENTAL RATINGS |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Max Input power |
|
|
+10 |
dBm |
| Operating Temperature |
-20 |
|
+50 |
℃ |
| Non-operating Temperature |
-40 |
|
+85 |
℃ |
| Relative humidity (non-condensing) |
|
95 |
|
% |
| Altitude (MIL-STD-810F) |
|
TBD |
|
feet |
| Shock / Vibration (MIL-STD-810F) |
|
TBD |
|
|
| MECHANICAL SPECIFICATIONS |
| PARAMETER |
VALUE |
LIMITS |
UNIT |

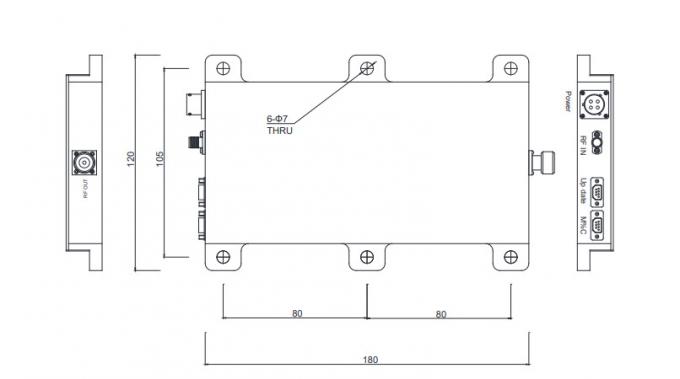

| Dimensions |
180*120*20 |
Max |
Millimeter |
| Weight |
1 |
Max |
Kg |
| RF Connectors Input |
SMA-F |
|
|
| RF Connectors output |
N-F |
|
|
| Impedance |
50 |
|
Ohms |
