6 - 11 GHz High Power Amplifier Psat 49.5 dBm High Voltage RF Power Amplifier for microwave links
  • 6 - 11 GHz High Power Amplifier Psat 49.5 dBm High Voltage  RF Power Amplifier for microwave links
  • 6 - 11 GHz High Power Amplifier Psat 49.5 dBm High Voltage  RF Power Amplifier for microwave links

6 - 11 GHz High Power Amplifier Psat 49.5 dBm High Voltage RF Power Amplifier for microwave links

Place of Origin China
Brand Name SWT
Model Number SW-PA-600011000-50C
Product Details
Frequency Range:
6-11 GHz
Gain:
50 DB
Gain Flatness:
±4 DB
Output Power (Psat):
49.5 DBm
VSWR:
2:1
Dimensions:
360*310*40 Mm
Weight:
6 Kg
Power Supply:
30V
Current:
25A
Packing:
Standard Packing
Operating Temperature:
-20~50℃
Applications:
Radar Systems, Microwave Links, Communication Systems
High Light:

6GHz High Power RF Amplifier

,

11GHz High Power RF Amplifier

,

100W high voltage rf amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

6 - 11 GHz High Power Amplifier Psat 49.5 dBm High Voltage RF Power Amplifier for microwave links



Description

This high-voltage RF power amplifier operates in the frequency range of 6 to 11 GHz and features a Psat (saturated output power) of 49.5 dBm. It is designed to deliver high-power output within this specific frequency band while maintaining signal integrity and reliability.

Key features of this amplifier include:

  1. Frequency Range: Operates in the 6-11 GHz frequency range, making it suitable for applications that require amplification within this specific band.

  2. Psat 49.5 dBm: Offers a Psat of 49.5 dBm, indicating its capability to deliver high-power output without significant distortion.

  3. High Voltage: Designed to operate at high voltage levels, ensuring efficient power conversion and high output power.

  4. RF Signal Amplification: Specifically designed for RF signal amplification within the specified frequency range, providing enhanced signal strength and performance.

  5. Applications: Suitable for various applications requiring high-power RF signal amplification in the 6-11 GHz range, such as radar systems, microwave links, and high-frequency communication systems.

  6. Reliability: Built with reliability in mind, suitable for continuous operation in demanding environments.

Overall, this 6-11 GHz Psat 49.5 dBm high-voltage RF power amplifier is a specialized amplifier designed to deliver high-power output and reliable performance in RF applications within the specified frequency range.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.



ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 6   11 GHz
Small Signal Gain 50     dB
Small Signal Gain Flatness     ±4 dB
Noise Figure       dB
Output Power (Psat) 49.5     dBm
IP3       dBm
VSWR     2:1 Ratio
Power Supply   30   Volt
Current   25   A



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power       dBm
Operating Temperature -20   +50
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

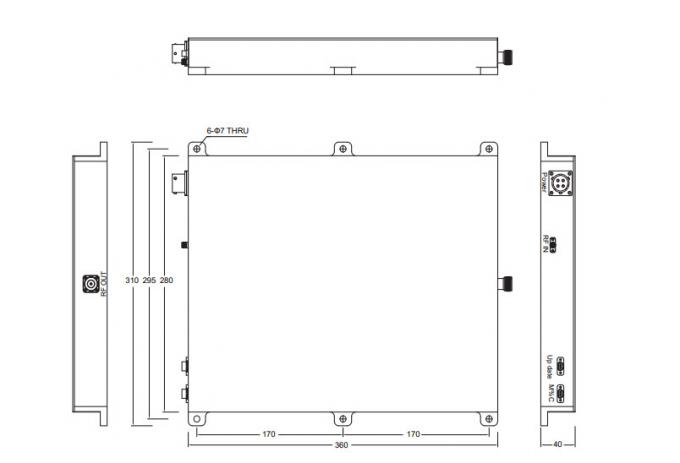

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 360*310*40 Max Millimeter
Weight 6 Max Kg
RF Connectors Input SMA-F
RF Connectors output N-F
Impedance 50   Ohms
