18 - 40 GHz Ka Band Amplifier Psat 27 dBm RF Signal Amplifier for satellite communication, radar systems
  • 18 - 40 GHz Ka Band Amplifier Psat 27 dBm RF Signal Amplifier for satellite communication, radar systems
  • 18 - 40 GHz Ka Band Amplifier Psat 27 dBm RF Signal Amplifier for satellite communication, radar systems

18 - 40 GHz Ka Band Amplifier Psat 27 dBm RF Signal Amplifier for satellite communication, radar systems

Place of Origin China
Brand Name SWT
Model Number SW-PA-1800040000-25C
Product Details
Frequency Range:
18-40 GHz
Gain:
25 DB
Gain Flatness:
±2.5 DB
Output Power (Psat):
27 DBm
VSWR:
2:1
Dimensions:
100*80*20 Mm
Weight:
0.2 Kg
Spurious:
-60dBc
Harmonics:
-15dBc
Power Supply:
6V
Operating Temperature:
-20~60℃
Packing:
Standard Packing
Applications:
Satellite Communication, Radar Systems, And High-frequency Research
High Light:

18GHz ka band amplifier

,

40GHz ka band amplifier

,

0.32W rf signal amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

18 - 40 GHz Ka Band Amplifier Psat 27 dBm RF Signal Amplifier for satellite communication, radar systems



Description

This RF signal amplifier operates within the Ka-band frequency range of 18 to 40 GHz. It is designed to amplify RF signals effectively within this specific frequency band. The amplifier features a Psat (saturated output power) of 27 dBm, indicating its capability to deliver high-power output without significant distortion.

Key features of this amplifier include:

  • Frequency Range: Operates in the Ka-band, covering frequencies from 18 to 40 GHz.
  • Psat 27 dBm: Offers a Psat of 27 dBm, ensuring high-power output with minimal distortion.
  • RF Signal Amplification: Designed to amplify RF signals within the specified Ka-band frequency range.
  • Applications: Suitable for various applications requiring RF signal amplification in the Ka-band, including satellite communication, radar systems, and high-frequency research.
  • Compact and Efficient Design: Designed to be compact and efficient, catering to space-constrained and power-sensitive applications.
  • High-Frequency Performance: Capable of handling high-frequency signals effectively, maintaining low loss and high fidelity during signal amplification.

Overall, this 18-40 GHz Ka-band amplifier with Psat 27 dBm is a specialized RF signal amplifier designed for applications that demand high-power output and precise signal amplification within the Ka-band frequency range.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.



ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 18   40 GHz
Small Signal Gain 25     dB
Small Signal Gain Flatness   ±2.5   dB
Noise Figure       dB
Output Power (Psat)   27   dBm
Spurious     -60 dBc
Harmonics   -15   dBc
VSWR   2:1   Ratio
Power Supply   +6   Volt
Current   2.3   A



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power       dBm
Operating Temperature -20   +60
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F)   TBD   feet
Shock / Vibration (MIL-STD-810F)   Airbone

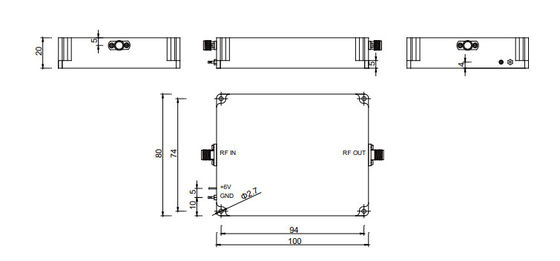

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 100*80*20 Max Millimeter
Weight 0.2 Max Kg
RF Connectors Input 2.92mm-F
RF Connectors output 2.92mm-F
Impedance 50   Ohms
