30 - 40 GHz Milimeter Wave Amplifers 26 W Ultra Low Noise Amplifier For medical equipment, aerospace
  • 30 - 40 GHz Milimeter Wave Amplifers 26 W Ultra Low Noise Amplifier For medical equipment, aerospace
  • 30 - 40 GHz Milimeter Wave Amplifers 26 W Ultra Low Noise Amplifier For medical equipment, aerospace

30 - 40 GHz Milimeter Wave Amplifers 26 W Ultra Low Noise Amplifier For medical equipment, aerospace

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-3000040000-25C
Product Details
Frequency Range:
30-40 GHz
Power Gain:
25 DB
Current:
0.27 A
Output Power @P1dB:
26 Watt
VSWR:
2:1
Weight:
0.1Kg
Spurious:
60dBc
Harmonics:
12dBc
Power Supply:
6V
Operating Temperature:
-20~55℃
Applications:
Communication, Radar, Radio, Medical Equipment, Aerospace
Dimensions:
60*35*15 Mm
Packing:
Standard Packing
High Light:

30GHz Narrow Band LNA

,

40GHz Narrow Band LNA

,

0.32W ultra low noise amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

30 - 40 GHz Milimeter Wave Amplifers 26 W Ultra Low Noise Amplifier For medical equipment, aerospace



Description

  1. Frequency Range: This millimeter wave amplifier is designed for the frequency range of 30 GHz to 40 GHz, within the millimeter wave spectrum. This frequency band is commonly used in high-frequency communication, radar, radio, and other RF applications.

  2. Wideband Design: It features a wideband design, capable of effectively amplifying signals across the entire frequency range. This ensures stable amplification of signals across different frequencies.

  3. Applications: The amplifier is suitable for various RF systems operating in the millimeter wave frequency band, including but not limited to communication, radar, radio, medical equipment, aerospace, and other fields.

  4. Technical Features: It boasts excellent linearity, low noise figure, high gain, and other technical features, ensuring high-quality amplification of signals.

  5. Stability and Reliability: Engineered for stability and reliability, it maintains consistent performance even under prolonged operation and in harsh environmental conditions.

Overall, this 30 - 40 GHz Millimeter Wave Amplifier features wideband design, stability, and reliability, making it suitable for a wide range of high-frequency RF applications, meeting the requirements for signal amplification and stability.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.



ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 30   40 GHz
Power Gain 25     dB
Gain Flatness       dB
Output Power 26     Watt
Spurious 60     dBc
Harmonics 12     dBc
Input VSWR     2:1 Ratio
DC Power Supply   6   Volt
Current   0.27   A



Note: Over Voltage Orotection, Over Temperature Protection,Short Circuit Protection.



ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power       dBm
Operating Temperature -20   +55
Non-operating Temperature -40   +70
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

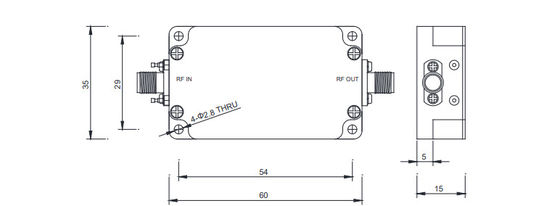

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 60*35*15 Max Millimeter
Weight 0.1 Max Kg
RF Connectors Input 2.92mm-F
RF Connectors output 2.92mm-F
Impedance 50   Ohms

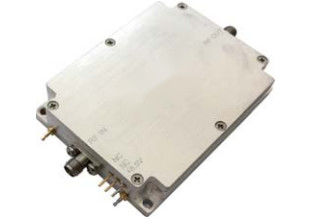

30 - 40 GHz Milimeter Wave Amplifers 26 W Ultra Low Noise Amplifier For medical equipment, aerospace 0
