34 - 36 GHz millimeter-wave RF Amplifier for high-frequency communication systems, satellite communications
  • 34 - 36 GHz millimeter-wave RF Amplifier for high-frequency communication systems, satellite communications
  • 34 - 36 GHz millimeter-wave RF Amplifier for high-frequency communication systems, satellite communications

34 - 36 GHz millimeter-wave RF Amplifier for high-frequency communication systems, satellite communications

Place of Origin China
Brand Name SWT
Certification CE
Model Number SW-PA-3400036000-16C
Product Details
Packing:
Standard Packing
Frequency Range:
34-36 GHz
Power Gain:
16 DB
Gain Flatness:
±1 DB
Output Power @P1dB:
33 Watt
VSWR:
2
Dimensions:
40*40*15 Mm
Weight:
0.1 Kg
Spurious:
60dBc
Harmonics:
20dBc
Power Supply:
12V
Current:
3A
Operating Temperature:
-20~50℃
Applications:
Communication Systems, Radar Systems, Satellite Ground Stations
High Light:

34GHz wideband lna

,

36GHz wideband lna

,

0.04W low noise rf preamplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

34 - 36 GHz millimeter-wave RF Amplifier for high-frequency communication systems, satellite communications



Description



Here is a detailed introduction of the 34-36 GHz RF Amplifier:

  1. Frequency Range: This RF amplifier operates within the frequency range of 34 GHz to 36 GHz, which falls into the millimeter-wave spectrum. These frequencies are commonly used in high-frequency communication systems, satellite communications, and radar applications.

  2. Wideband Design: It features a wideband design, capable of effectively amplifying signals across the entire frequency range. This ensures versatility and stability in signal amplification.

  3. Applications: The amplifier is suitable for various applications in the millimeter-wave frequency band, including but not limited to point-to-point communication systems, radar systems, satellite ground stations, and research in high-frequency technologies..

  4. Stability and Reliability: The amplifier is engineered for stability and reliability, ensuring consistent performance over extended periods of operation and in challenging environmental conditions.

Overall, the 34-36 GHz RF Amplifier is designed to meet the amplification needs of signals within the millimeter-wave frequency band, offering wideband capabilities, stability, and reliability for a range of high-frequency applications.



Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.



ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 34   36 GHz
Gain 16     dB
Gain Flatness   ±1   dB
Output Power 33     Watt
Spurious   60   dBc
Harmonics   20   dBc
VSWR     2 Ratio
Power Supply   +12   Volt
Current   3   A



Note: output with isolator.

ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power       dBm
Operating Temperature -20   +50
Non-operating Temperature -40   +85
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone
MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT

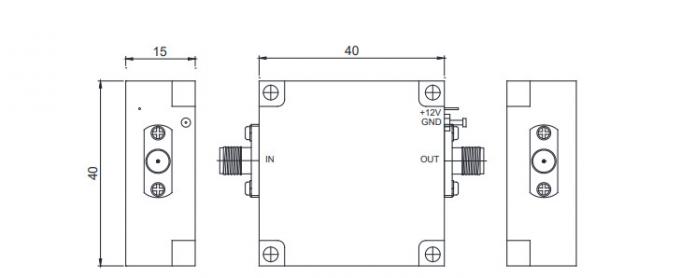

Dimensions 40*40*15 Max Millimeter
Weight 0.1 Max Kg
RF Connectors Input 2.92mm-F
RF Connectors output 2.92mm-F
Impedance 50   Ohms
