43-46 GHz Narrow Band LNA Psat 41W Low Noise Figure Amplifier For Millimeter-Wave Communication
Description
The 43-46 GHz 10 dB RF Power Amplifier is a specialized amplifier designed for the frequency range of 43 to 46 gigahertz, providing a gain of 10 decibels. This amplifier is specifically engineered to meet the demands of high-frequency applications requiring precise signal amplification within this frequency band.
Key Features:
- Frequency Range: The amplifier operates within the 43-46 GHz frequency range, catering to millimeter-wave communication and radar systems.
- Gain: It offers a gain of 10 dB, enhancing signal strength for reliable communication and radar performance.
- Low Noise Figure: The amplifier maintains a low noise figure, ensuring minimal interference and high signal clarity.
- Compact Design: Designed with a compact form factor, making it suitable for integration into various systems and applications.
Applications:
- Millimeter-Wave Communication: Used to amplify signals in millimeter-wave communication systems, including point-to-point links and wireless backhaul.
- Radar Systems: Employed in radar systems for target detection, tracking, and imaging in the 43-46 GHz frequency band.
- Radio Astronomy: Utilized in radio astronomy applications for amplifying signals received from celestial objects within the specified frequency range.
- Satellite Communication: Applied in satellite communication systems for uplink and downlink signal amplification in the 43-46 GHz band.
Overall, the 43-46 GHz 10 dB RF Power Amplifier is designed to deliver reliable and efficient signal amplification in high-frequency applications, making it a valuable component in advanced communication and radar systems.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Frequency Range |
43 |
|
46 |
GHz |
| Small Signal Gain |
10 |
|
|
dB |
| Small Signal Gain Flatness |
|
|
|
dB |
| Output Power (Psat) |
41 |
|
|
Watt |
| VSWR |
|
|
2:1 |
Ratio |
| Input voltage |
|
12 |
|
Volt |
| Current(Id) |
|
8 |
|
A |
| Current(under RF drive) |
|
12 |
|
A |
| ENVIRONMENTAL RATINGS |
| PARAMETER |
MIN |
TYPICAL |
MAX |
UNIT |
| Max Input power |
|
|
+20 |
dBm |
| Operating Temperature |
-20 |
|
+60 |
℃ |
| Non-operating Temperature |
-40 |
|
+85 |
℃ |
| Relative humidity (non-condensing) |
|
95 |
|
% |
| Altitude (MIL-STD-810F) |
10000 |
|
30000 |
feet |
| Shock / Vibration (MIL-STD-810F) |
|
Airbone |
|
|
| MECHANICAL SPECIFICATIONS |
| PARAMETER |
VALUE |
LIMITS |
UNIT |

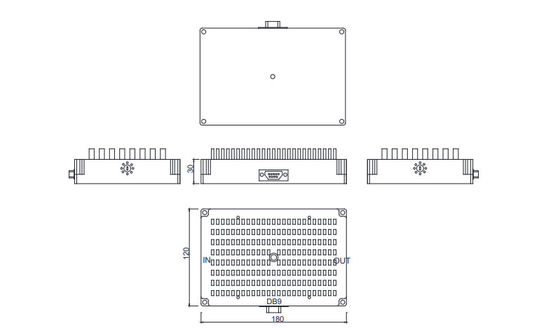

| Dimensions |
180*120*30 |
Max |
Millimeter |
| Weight |
2 |
Max |
Kg |
| RF Connectors Input |
WR22 |
|
|
| RF Connectors output |
WR22 |
|
|
| Impedance |
|
|
Ohms |
