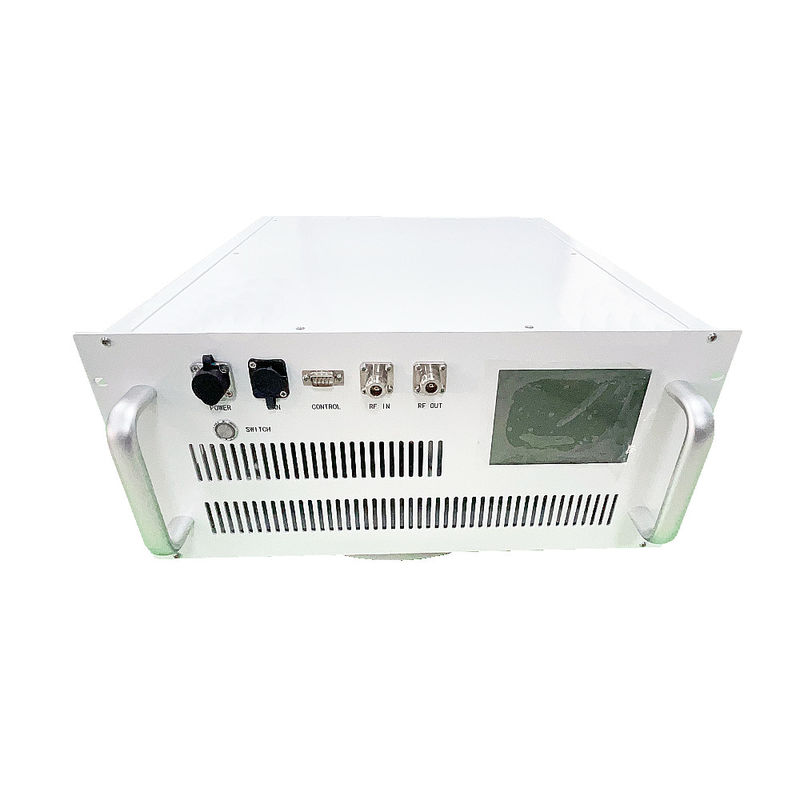

19 Inch Rack Mount 0.1-500 MHz UHF Power Amplifier Solid State Psat 50 W RF Power Amplifier
  • 19 Inch Rack Mount 0.1-500 MHz UHF Power Amplifier Solid State Psat 50 W RF Power Amplifier
  • 19 Inch Rack Mount 0.1-500 MHz UHF Power Amplifier Solid State Psat 50 W RF Power Amplifier
  • 19 Inch Rack Mount 0.1-500 MHz UHF Power Amplifier Solid State Psat 50 W RF Power Amplifier
  • 19 Inch Rack Mount 0.1-500 MHz UHF Power Amplifier Solid State Psat 50 W RF Power Amplifier

19 Inch Rack Mount 0.1-500 MHz UHF Power Amplifier Solid State Psat 50 W RF Power Amplifier

Place of Origin China
Brand Name SWT
Model Number SW-PA-0000R10500-47C
Product Details
Frequency Range:
0.1-500 MHz
PSat Power Output:
50 W
Input VSWR:
2
Gain:
47 DB
Power Gain Flatness:
±2.5 DB
RF INPUT:
0dBm
Spurious Signals:
-60dBc
Harmonic Signals:
-20dBc
Input/output Impedance:
50Ω
Operating Temp. (Housing Temp.):
0~+50°C
Weight:
≤25 Kg
Dimensions:
400*500*221 Mm
High Light:

0.1mhz amplifier 50w

,

500mhz amplifier 50w

,

UHF rf amplifier 50w

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Price
US Dollar (USD) 1-2/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

19 Inch Rack Mount 0.1-500 MHz UHF Power Amplifier Solid State Psat 50 W RF Power Amplifier



Description

The 0.1-500 MHz UHF Power Amplifier is a versatile device designed to operate within the Ultra High Frequency (UHF) range, covering a wide frequency spectrum from 0.1 MHz to 500 MHz. Its key features include:



Frequency Coverage: This amplifier covers a broad frequency range, making it suitable for various UHF applications across different frequency bands.

Power Output: It offers adjustable power output, capable of delivering high power levels ranging up to several hundred watts, catering to diverse power requirements in different applications.

High Linearity and Low Distortion: Designed for high linearity and low distortion, it maintains signal accuracy and clarity during signal amplification processes.

Wideband Design: With a wideband design, it can handle multiple frequency signals simultaneously, making it suitable for applications requiring broad frequency coverage.

Stability and Reliability: Engineered for stability and reliability, it maintains consistent performance across different environmental conditions, ensuring high operational reliability.

Protection Features: It incorporates protection features such as overcurrent, overvoltage, and overtemperature protection, safeguarding the amplifier from external environmental factors and extending the device's lifespan.

Applications: It finds applications in wireless communication systems, RF testing equipment, radar systems, medical devices, broadcasting equipment, scientific research, and various other fields.

Connection Interfaces: Typically equipped with standard RF connectors such as N-type connectors or SMA connectors, it facilitates easy integration and connectivity with other RF equipment.

The 0.1-500 MHz UHF Power Amplifier is a comprehensive, stable, and widely applicable RF device suitable for amplifying and transmitting high-frequency signals across a range of applications.



Specification

Typical performance at +220VAC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 0.1   500 MHz
RF INPUT   0   dBm
PSat Power Output 50 70   W
Gain 47 49   dB
Power Gain Flatness   ±2.5   dB
Input VSWR     2 --
Operating Voltage 100   240 V AC

Spurious Signals@Pout=47dBm

  -60 -50 dBc
Harmonic Signals@Pout=47dBm   -20 -15 dBc
Gain Adjust Range   31.5   dB
Gain Adjust Step   0.5   dB
Power Dissipation     800 W
Input/output impedance   50   Ω





MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x D x H) The standard 19-inch shelf is 5U high, 482*500*221 mm
RF Connectors (Input / Output) N-K / N-K (N female) --
Control Connector DB9:Power supply/power off control, gain control; Monitoring parameters include output power, temperature, supply voltage, and supply current
Control Connector RJ45:Remote control and monitoring can be realized through LAN
Cooling Built-in cooling system, forced air cooling --
Weight ≤25 kg





ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) 0 +50 °C
Humidity Range 0-90 %
Protections With over temperature protection, input over power protection, over voltage protection, over current protection, output mismatch protection





INPUT/OUTPUT panel Connector
AMPLIFIER CONNECTOR TYPE: ——
TRIAD CABLE PART NUMBER: ——
NUMBER interface type DESCRIPTION
X1 N-K RF IN
X2 N-K RF OUT
X3 LCD display Human-computer interaction interface
X4 Switch AC/220V/50Hz
X5 RJ45 LAN
X6 DB9 Control and monitoring interface

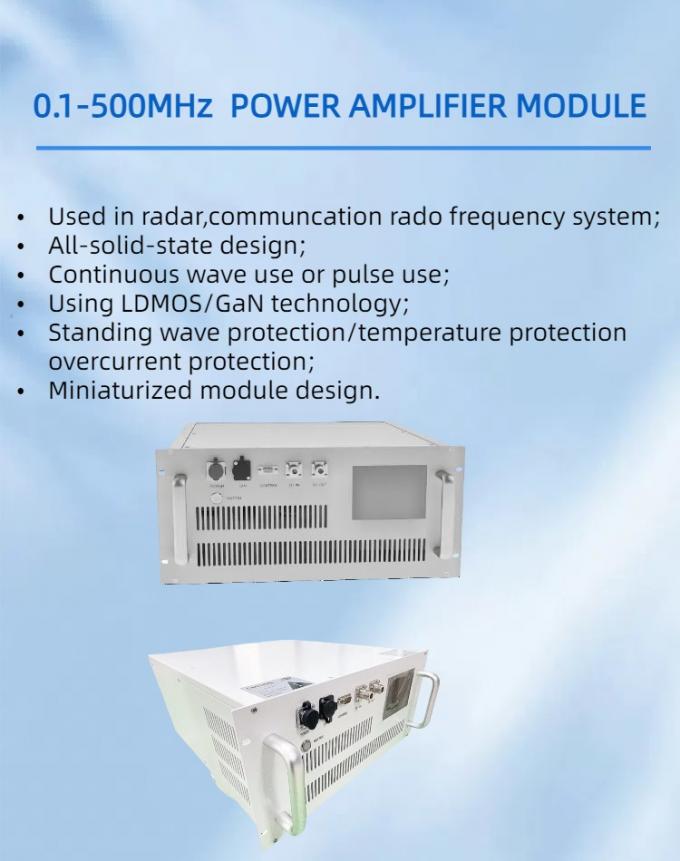

19 Inch Rack Mount 0.1-500 MHz UHF Power Amplifier Solid State Psat 50 W RF Power Amplifier 0

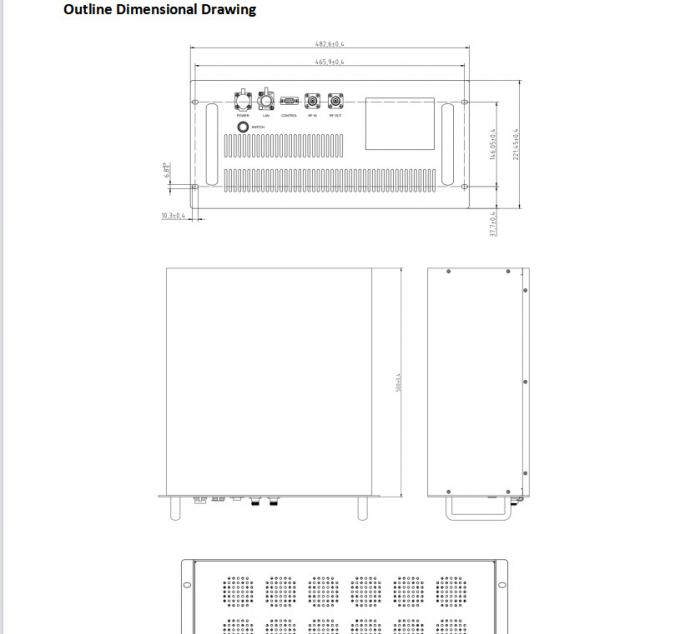

19 Inch Rack Mount 0.1-500 MHz UHF Power Amplifier Solid State Psat 50 W RF Power Amplifier 1





Applications

Wireless Communication Systems: RF power amplifiers are used to enhance the power of wireless signals in various communication systems, including mobile communication base stations, wireless LAN (Wi-Fi), cellular networks, and cellular phones. They improve signal transmission distance and coverage, ensuring communication quality.


Radar Systems: In radar systems, RF power amplifiers are utilized to boost the power of radar signals, including civilian radar, military radar, aviation radar, weather radar, etc. They enhance radar system detection range, target resolution, and anti-interference capability.

Broadcasting and Television: RF power amplifiers are employed to increase the power of broadcasting signals, including radio broadcasting stations, television broadcasting, satellite broadcasting, etc. They improve signal coverage and reception quality in broadcasting and television applications.

Satellite Communication: In satellite communication systems, RF power amplifiers are used to amplify satellite signals, including satellite ground stations, satellite communication equipment, satellite phones, etc. They enhance the reliability and stability of satellite communication.

Medical Equipment: RF power amplifiers are used to boost the signal power of medical equipment, such as medical ultrasound devices, medical magnetic resonance imaging (MRI) equipment, etc. They improve diagnostic accuracy and efficiency in medical applications.

Scientific Research: In scientific research fields, RF power amplifiers are utilized in various experimental and observational equipment, such as astronomical telescopes, particle accelerators, electromagnetic spectrometers, etc. They enhance data acquisition capabilities and accuracy in scientific research.

In summary, RF power amplifiers find significant applications in modern communication, broadcasting, radar, medical, and scientific research fields, providing reliable signal amplification solutions for various RF signal processing needs

Our Company

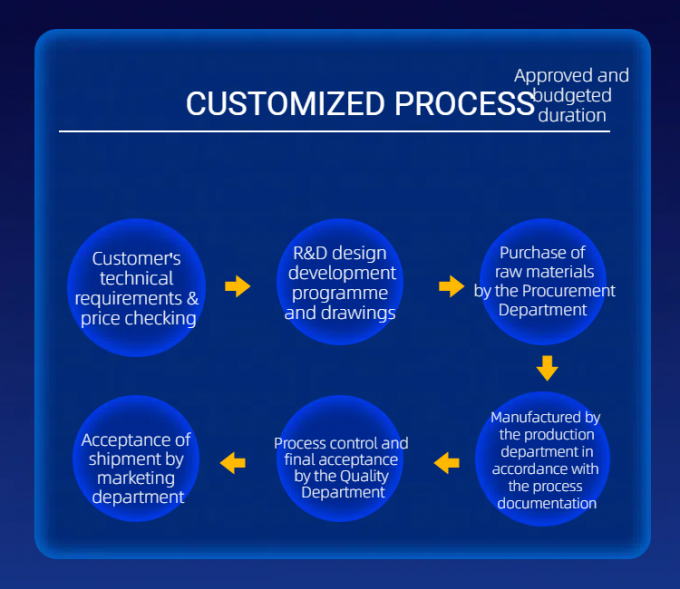

19 Inch Rack Mount 0.1-500 MHz UHF Power Amplifier Solid State Psat 50 W RF Power Amplifier 2
