1000-6000 MHz C Band Power Amplifier Wideband Psat 40 W RF Power Amplifier for Telecommunication
  • 1000-6000 MHz C Band Power Amplifier Wideband Psat 40 W RF Power Amplifier for Telecommunication
  • 1000-6000 MHz C Band Power Amplifier Wideband Psat 40 W RF Power Amplifier for Telecommunication
  • 1000-6000 MHz C Band Power Amplifier Wideband Psat 40 W RF Power Amplifier for Telecommunication
  • 1000-6000 MHz C Band Power Amplifier Wideband Psat 40 W RF Power Amplifier for Telecommunication
  • 1000-6000 MHz C Band Power Amplifier Wideband Psat 40 W RF Power Amplifier for Telecommunication
  • 1000-6000 MHz C Band Power Amplifier Wideband Psat 40 W RF Power Amplifier for Telecommunication
  • 1000-6000 MHz C Band Power Amplifier Wideband Psat 40 W RF Power Amplifier for Telecommunication

1000-6000 MHz C Band Power Amplifier Wideband Psat 40 W RF Power Amplifier for Telecommunication

Place of Origin China
Brand Name SWT
Model Number SW-PA-10006000-46C
Product Details
Frequency Range:
1000-6000 MHz
PSat Power Output:
40 W
Power Gain:
46 DB
Power Gain Flatness:
±4 DB
Input VSWR:
2
Dimensions:
482*600*223 Mm
Weight:
≤25 Kg
In/Out Impedance:
50Ω
Spurious Signals:
-65dBc
Harmonic Signals:
-10dBc
Operating Voltage:
220V
RF Connectors (Input / Output):
N-K / N-K (N Female)
Operating Temp.:
-25~55°C
Applications:
Wireless Communication Systems, Radar Systems, Satellite Communications, Broadcasting
High Light:

1000-6000 MHz rf power amplifier manufacturers

,

C Band rf power amplifier manufacturers

,

40w rf amplifier

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

1000-6000 MHz C Band Power Amplifier Wideband Psat 40 W RF Power Amplifier for Telecommunication



Description

The 1000-6000 MHz C Band Power Amplifier is a specialized device designed to amplify radio frequency (RF) signals within the C band, covering the frequency range from 1000 megahertz (MHz) to 6000 MHz. Here's a detailed introduction to this power amplifier:

  1. Frequency Range: The C band is an important part of the RF spectrum, typically ranging from 4 gigahertz (GHz) to 8 GHz. This amplifier specifically covers the frequency range from 1000 MHz to 6000 MHz within the C band. The C band finds extensive applications in communication, radar, and satellite communication systems.

  2. Power Output: This amplifier is capable of amplifying input RF signals to higher power levels, suitable for applications that require strong signal transmission or testing. The specific output power can vary based on the amplifier's design and requirements.

  3. Applications: C band power amplifiers are commonly used in wireless communication systems, radar systems, satellite communications, broadcasting, and radio spectrum analysis. They play a crucial role in signal amplification and transmission in these fields.

  4. Stability and Reliability: These amplifiers are typically designed for stability and reliability, capable of long-term operation in various environmental conditions while maintaining consistent performance. This is essential for ensuring signal quality and system stability.

  5. Design Features: The design features of C band power amplifiers include a wide frequency range, appropriate power output, good signal amplification and transmission performance, and compatibility with other equipment and systems.

In summary, the 1000-6000 MHz C Band Power Amplifier is a vital equipment operating within the C band frequency range, serving various RF applications with its high power output, stability, and reliability. It plays a significant role in meeting the demanding requirements of signal amplification and transmission in RF systems.



Specification

Typical performance at 220V AC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 1000   6000 MHz
RF INPUT   0 5 dBm
Power Gain   46   dB
P-sat Output Power   40   W
Power Gain Flatness   ±4   dB
In/Out Impedance   50   Ω
Spurious Signals     -65 dBc
Harmonic Signals   -15 -10 dBc
Gain Adjust Range   31.5   dB
Gain Adjust Step   0.5   dB
Operating Voltage 200 220 240 V AC
Supply Power     800 W
Input VSWR     2



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (W x D x H) The standard 19-inch shelf is 5U high, 482*600*223 mm
RF Connectors (Input / Output) N-K / N-K (N female) --
Control Connector (Option1) DB9:Power on/power off control, gain control; Monitoring parameters include output power, temperature, supply voltage, and supply current --
Control Connector (Option2) RJ45:Remote control and monitoring can be realized through LAN
Cooling Built-in cooling system, forced air cooling --
Weight ≤25 kg
AC Connector Three-in-one air switch





ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. -25 +55 °C
Humidity Range 0-90 %
Amplifier Safeguard Temp. +80 °C
Protections With over temperature protection, input over power protection, over voltage protection, over current protection, output mismatch protection





INPUT/OUTPUT panel Connector
AMPLIFIER CONNECTOR TYPE: ——
TRIAD CABLE PART NUMBER: ——
NUMBER interface type DESCRIPTION
X1 N-FK RF IN
X2 N-FK RF OUT
X3 LCD display Human-computer interaction interface
X4 Three-in-one air switch AC/220V/50Hz
X5 RJ45 LAN
X6 DB9 Control interface
X7 N-FK Forward coupling port
X8 N-FK Reverse coupling port





Connector Definition
AMPLIFIER CONNECTOR TYPE: DB9
TRIAD CABLE PART NUMBER: ——
NUMBER Definition DESCRIPTION
1 PA Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
2 Output Power monitoring Output Power Detection (TTL Hi= Normal , TTL Lo =Fault )
3 Temp monitoring Temp monitoring alarm (TTL Hi= Normal , TTL Lo =Fault )
4 Voltage monitoring Voltage monitoring alarm (TTL Hi= Normal , TTL Lo =Fault )
5 Current monitoring Current monitoring alarm (TTL Hi= Normal , TTL Lo =Fault )
6 RXD RS232 serial bus interface, PA gain adjustment
7 TXD
8 GND
9 NC NC

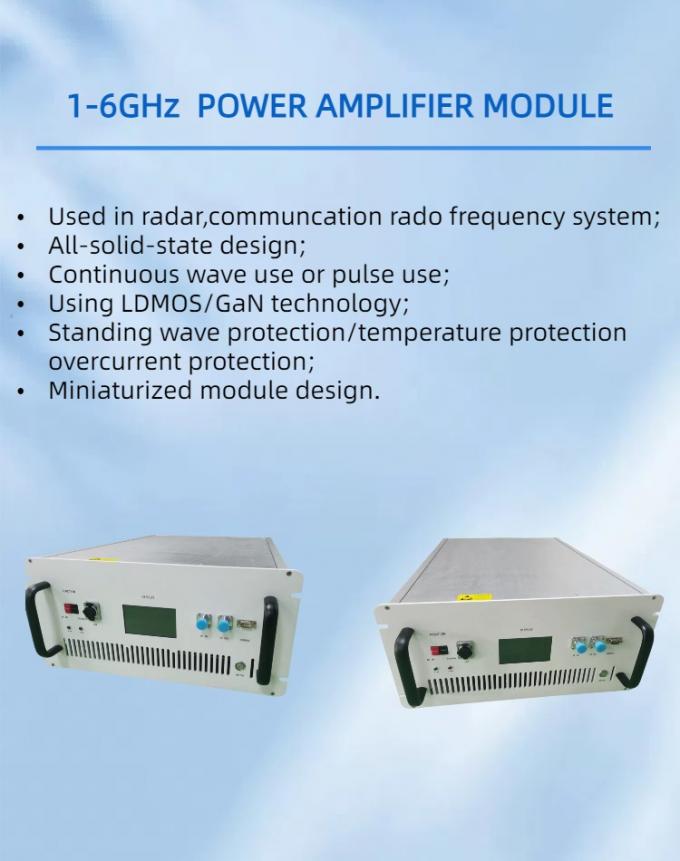

1000-6000 MHz C Band Power Amplifier Wideband Psat 40 W RF Power Amplifier for Telecommunication 0

Our Company



1000-6000 MHz C Band Power Amplifier Wideband Psat 40 W RF Power Amplifier for Telecommunication 1

Shinewave Technology Co., Ltd, Nanjing is a company specializing in the research and development, production and sales of RF microwave passive components and subsystems. The company's product field covers a variety of microwave communication devices, including RF power amplifier, RF microwave filters, horn /Microstrip Antenna, isolators & Circulators, which are widely used in cellular wireless, aerospace, satellite, Mil-Spec, CATV/Broadband, RFID, test instrumentation, diagnostic imaging and many more fields worldwide.

In order to meet the special requirements of customers, in addition to standard products, we provide customized production solutions.

With experienced experts and specialists, our company has comprehensive production and strong design capabilities. Wholeheartedly, we provide customers with high-quality products and on time delivery services.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Britain, America, Japan, Italy and south East Asia. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.



Our R&D



1000-6000 MHz C Band Power Amplifier Wideband Psat 40 W RF Power Amplifier for Telecommunication 2

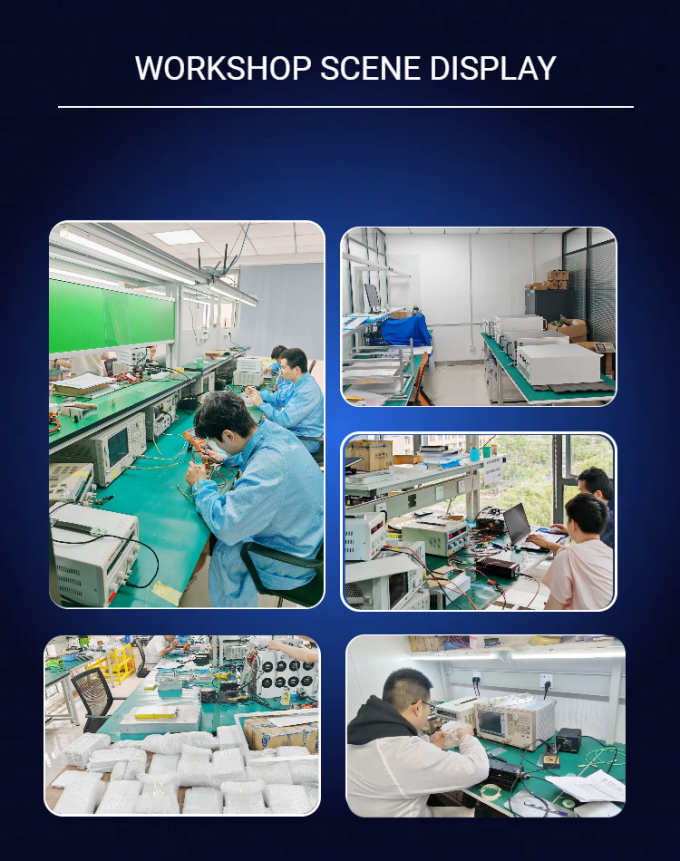

Showroom
