6-18GHz PSat 40 dBm Millimeter Wave Amplifiers for experiments and testing in laboratories and research institutions,
  • 6-18GHz PSat 40 dBm Millimeter Wave Amplifiers for experiments and testing in laboratories and research institutions,
  • 6-18GHz PSat 40 dBm Millimeter Wave Amplifiers for experiments and testing in laboratories and research institutions,
  • 6-18GHz PSat 40 dBm Millimeter Wave Amplifiers for experiments and testing in laboratories and research institutions,
  • 6-18GHz PSat 40 dBm Millimeter Wave Amplifiers for experiments and testing in laboratories and research institutions,

6-18GHz PSat 40 dBm Millimeter Wave Amplifiers for experiments and testing in laboratories and research institutions,

Place of Origin China
Brand Name SWT
Model Number SW-PA-600018000-40C
Product Details
Packing:
Standard Packing
Frequency Range:
6000-18000 MHz
PSat Power Output:
40 DBm
Power Gain:
40 DB
Power Gain Flatness:
±2 DB
Input VSWR:
1.5
Dimensions:
62.6*60.6*24 Mm
Weight:
≤1 Kg
RF INPUT:
0dBm
Spurious Signals:
DBc
Harmonic Signals:
-15dBc
Operating Voltage:
28V
In-Out Impedance:
50Ω
Applications:
Radar Systems ,Satellite Communication ,Scientific Research
High Light:

6000-18000 MHz Millimeter Wave Amplifiers

,

LNA Low Noise Amplifiers

Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
Product Description

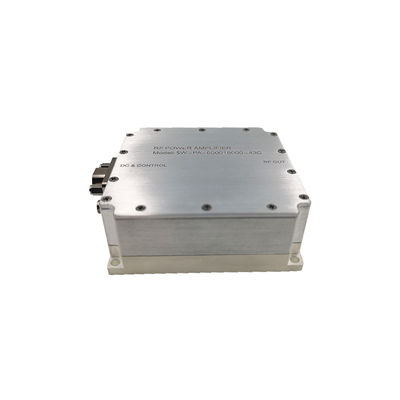

6-18GHz PSat 40 dBm Millimeter Wave Amplifiers for experiments and testing in laboratories and research institutions



Description

The 6000-18000 MHz 43dBm RF Power Amplifier is a high-power amplifier designed specifically for this frequency range, offering an output power of 43dBm. It has a wide range of applications, playing a crucial role in communication, radar, and scientific research fields.

Key Features:

  1. Wide Frequency Range: The amplifier is suitable for the 6000-18000 MHz frequency range, covering a broad spectrum from microwave to millimeter wave frequencies.
  2. High Output Power: With an output power of 43dBm, it is suitable for applications requiring high-power signals.
  3. Signal Amplification and Processing: The amplifier provides signal amplification and processing capabilities, ensuring reliable signal transmission and processing.
  4. Multi-domain Applications: Widely used in communication systems, radar technology, and scientific research, supporting various application requirements.

Key Applications:

  1. Communication Systems: Used to enhance communication signals within the 6000-18000 MHz frequency range, supporting high-speed data transfer and reliable communication.
  2. Radar Technology: Used in radar systems for signal transmission and reception, enabling target detection and tracking.
  3. Scientific Research: Used in experiments and testing in laboratories and research institutions, such as radio astronomy and microwave spectroscopy.

Overall, the 6000-18000 MHz 43dBm RF Power Amplifier is a powerful and versatile device, providing reliable signal amplification and processing capabilities for a wide range of applications.



Specification

Typical performance at +28VDC +25oC, and in a 50Ω system.



RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 6000   18000 MHz
RF INPUT   0   dBm
P-sat Power Output   40   dBm
Power Gain   40   dB
Power Gain Flatness   ±2 ±3 dB
Input VSWR   1.5 2
Spurious Signals   -60   dBc
Harmonic Signals   -15   dBc
Operating Voltage   28   VDC
In-Out impedance   50



MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 62.6*60.6*24 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector J30J-15ZKP --
Cooling Consider heat dissipation with the system --
Mounting φ2.8-4 Thru Hole --
Weight ≤1 kg





ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) 0 +50 °C
Humidity Range 0-100 %
PA Baseplate Shutoff Temperature + 85 °C



INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: J30J-15ZKP
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1-3 +VDC +28V
4-6 GND Ground
7 Amp Enable Disable : TTL “Low”, Enable: TTL “High” (Low : 0~0.5V, High : 2.5~5V)
8 NC NC
9 NC NC
